Removal And Installation

REAR DOOR GLASS

Removal and Installation


REMOVAL

1.Fully open rear door glass.
2.Remove rear door finisher. Removal And Installation.
3.Remove rear door speaker harness connector and the remove the sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing screen is reused.
4.Remove the rear door outside molding.
5.Remove rear door glass run.
6.Operate the power window main switch or regulator handle to raise or lower the door window until the glass mounting bolts can be seen.
7.Remove rear door glass mounting bolts.

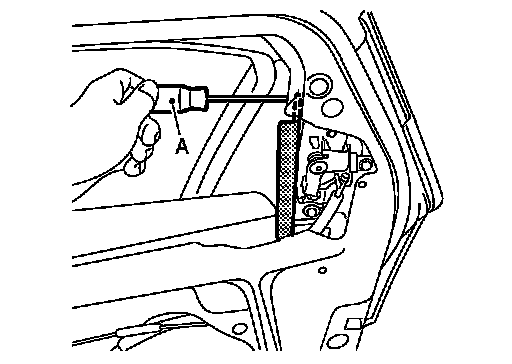

8.Remove lower sash (rear) mounting bolts and TORX bolt with a screwdriver (A) as shown in the figure.
9.Remove lower sash (rear) from the rear door panel.

CAUTION:
Avoid contact between lower sash (rear) and rear door glass when removing.
10.Remove rear door glass from the rear panel.

INSTALLATION

Install in the reverse order of removal.
