Reference Value
Reference Value
POWER WINDOW MAIN SWITCH
Reference Value

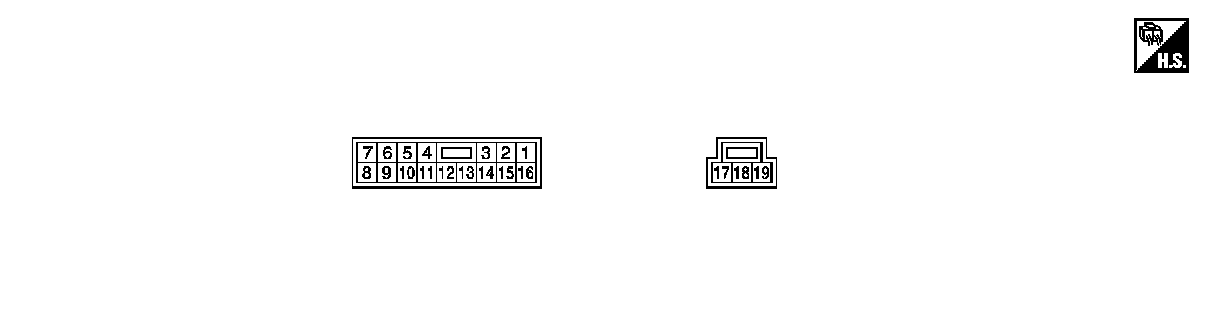

TERMINAL LAYOUT

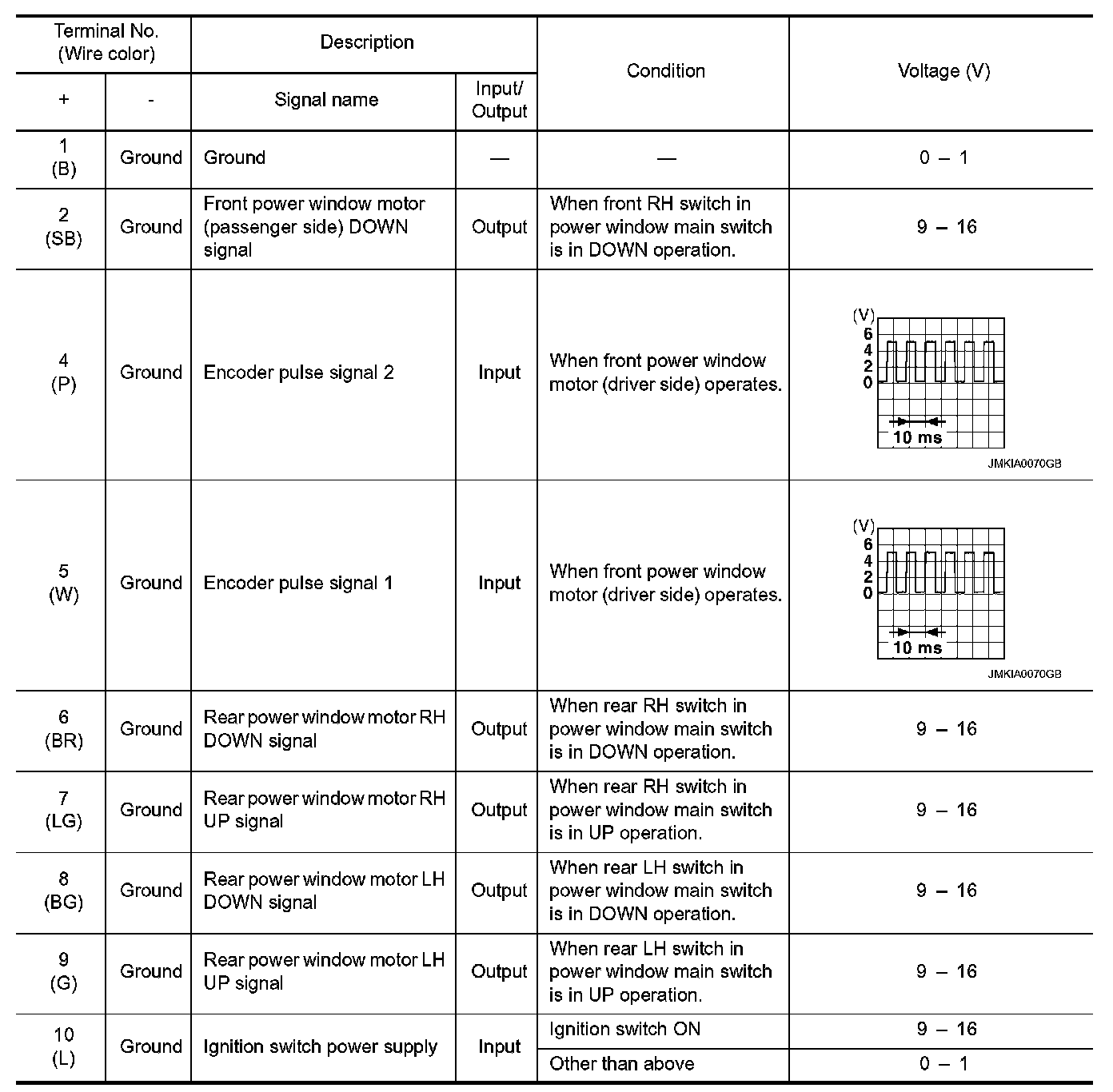

PHYSICAL VALUES
