With Intelligent Key

DIAGNOSIS SYSTEM (IPDM E/R)

WITH INTELLIGENT KEY : CONSULT Function (IPDM E/R)

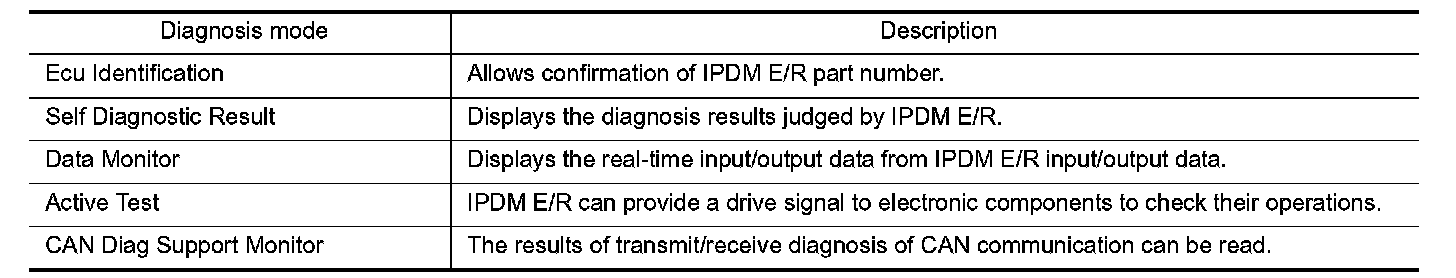

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.






SELF DIAGNOSTIC RESULT

Testing and Inspection.

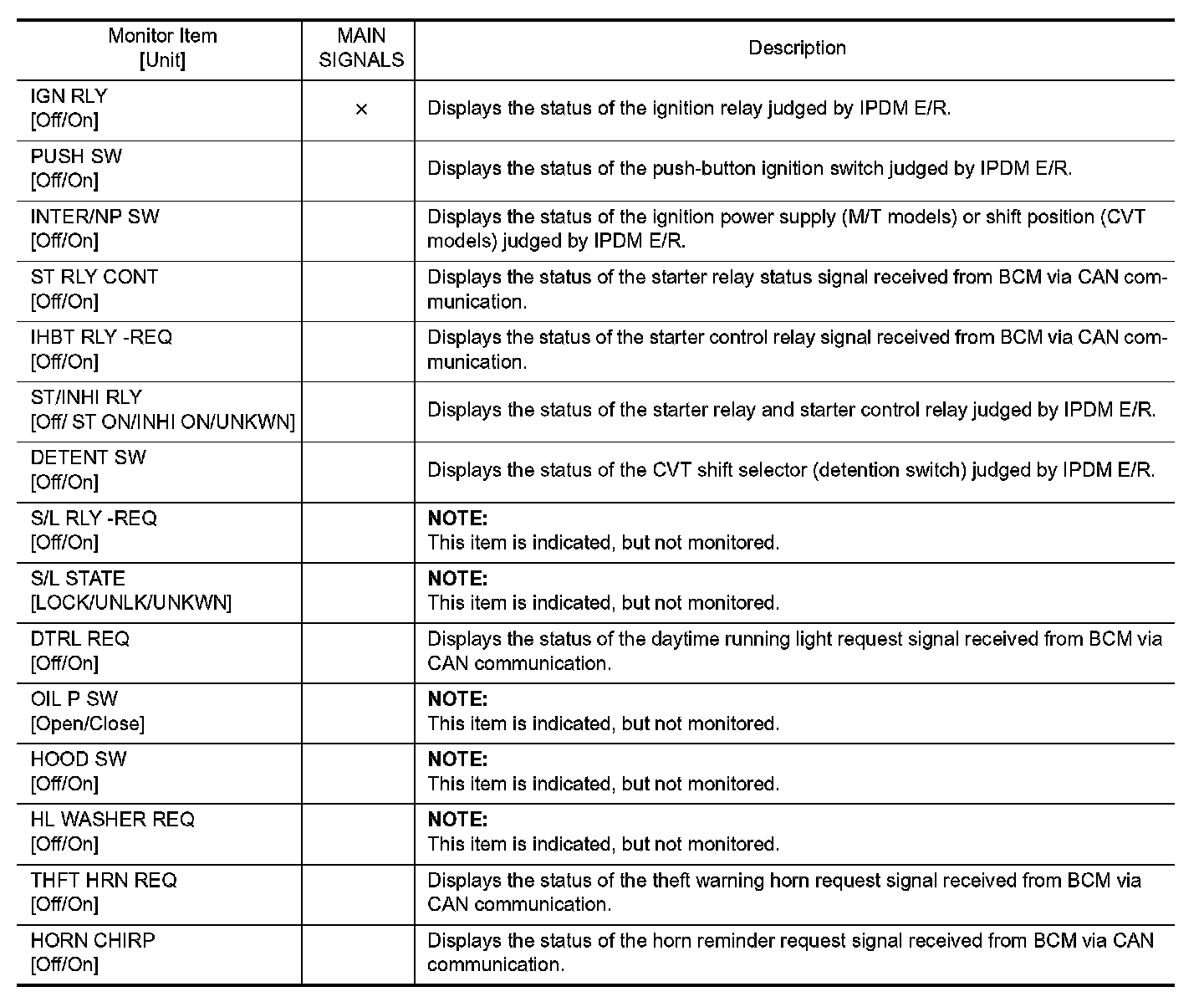

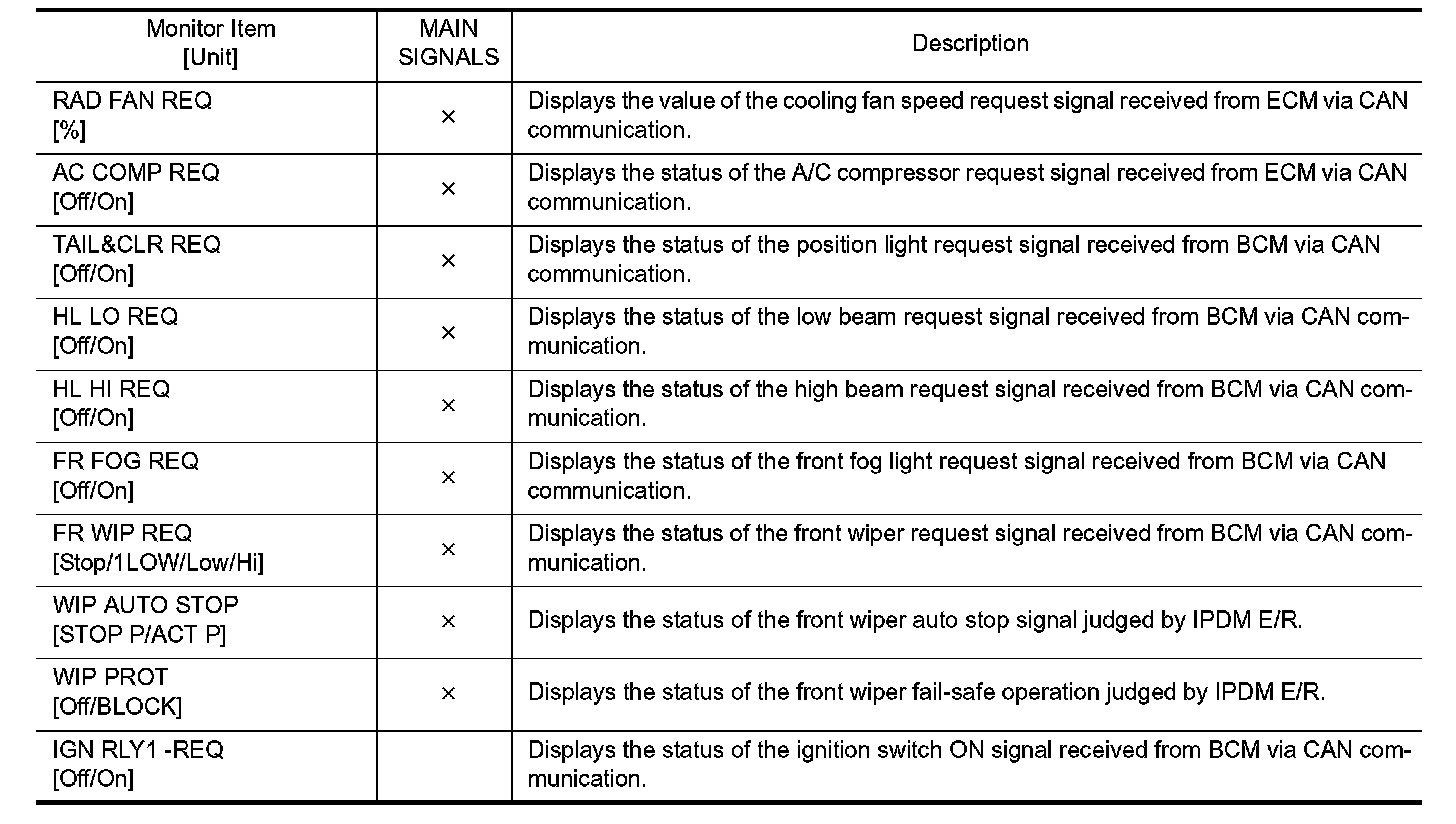

DATA MONITOR

Monitor item

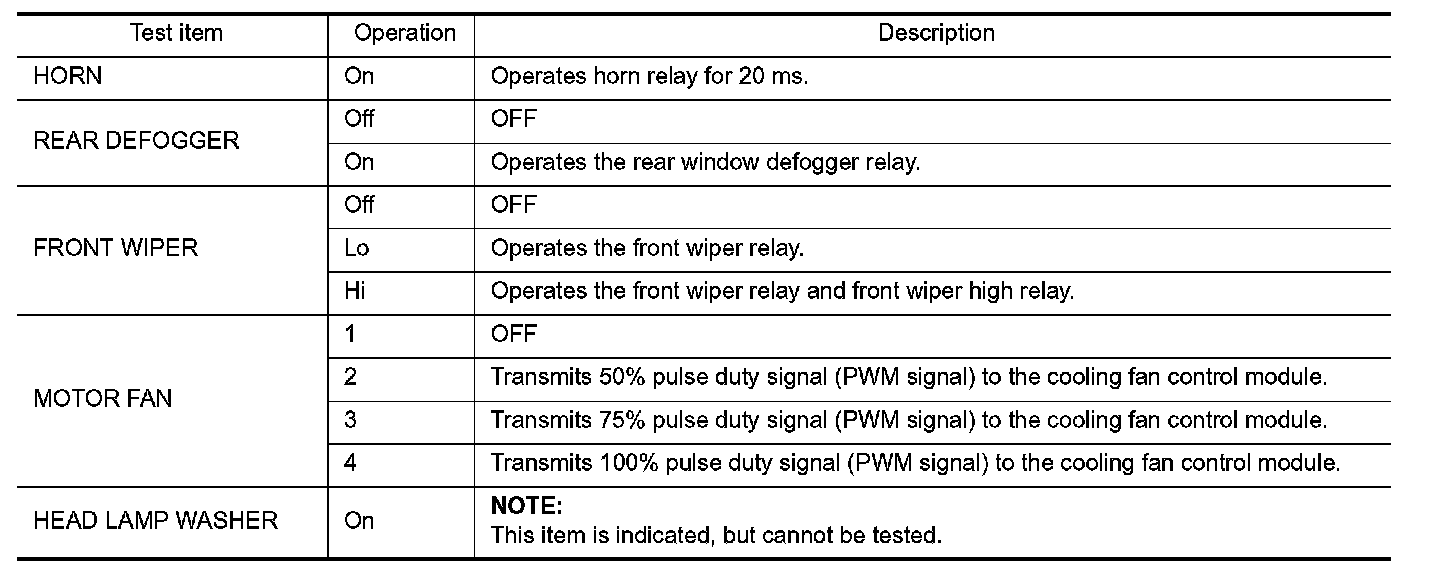

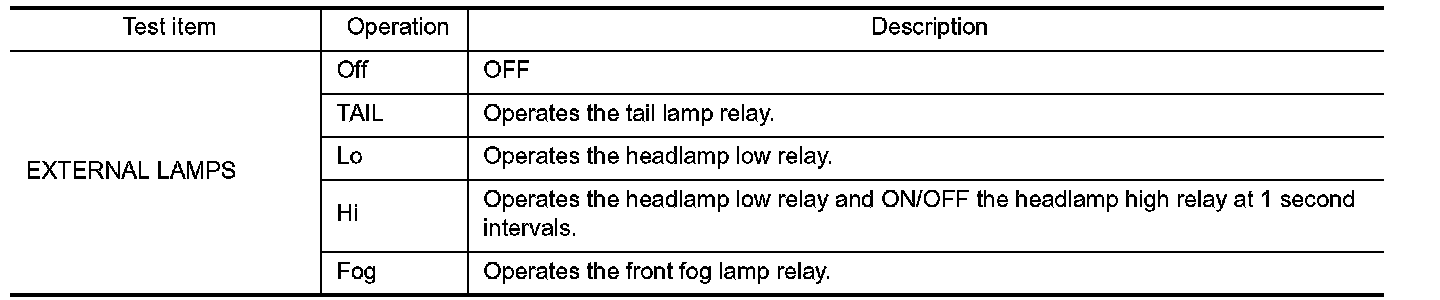

ACTIVE TEST

Test item
