Passenger Side Door Mirror Defogger

PASSENGER SIDE DOOR MIRROR DEFOGGER

Description

Heats the heating wire with the power supply from the rear window defogger relay to prevent the door mirror from fogging up.


Component Function Check


1. CHECK PASSENGER SIDE DOOR MIRROR DEFOGGER

1.Perform IPDM E/R Active Test ("REAR DEFOGGER") using CONSULT.
2.Touch "ON".
3.Check that the passenger side door mirror glass is getting warmer.
Is the inspection result normal?
YES- Passenger side door mirror defogger is OK.
NO- .


Diagnosis Procedure


1. CHECK POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect door mirror (passenger side) connector.
3.Turn ignition switch ON.

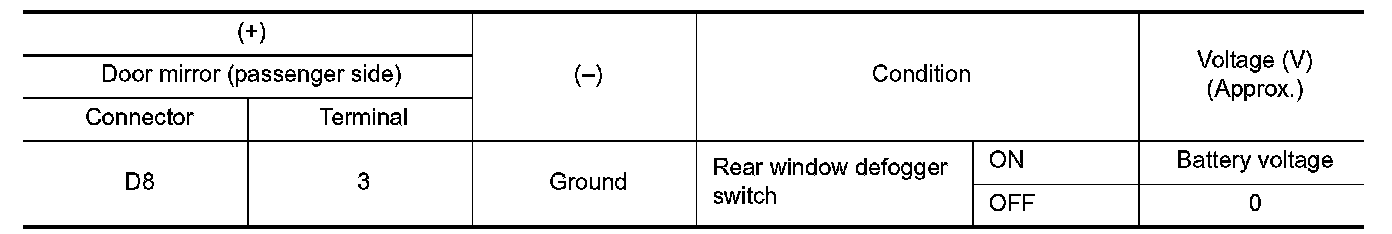

4.Check voltage between door mirror (passenger side) harness connector and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace harness.

2. CHECK GROUND CIRCUIT

1.Turn ignition switch OFF.

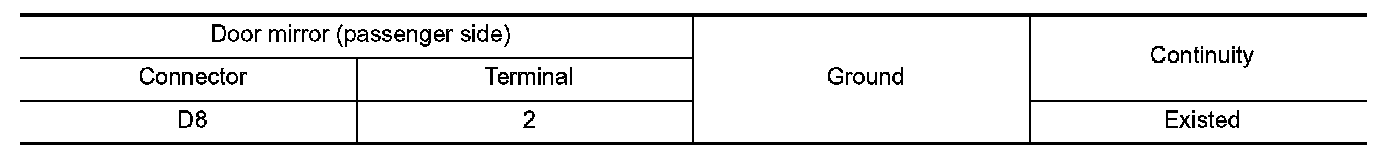

2.Check continuity between door mirror (passenger side) harness connector and ground.





Is the inspection result normal?
YES- Replace door mirror glass (passenger side). Removal And Installation
NO- Repair or replace harness.
