CONSULT Function

DIAGNOSIS SYSTEM (TCM)

CONSULT Function (TRANSMISSION)

CONSULT can display each diagnostic item using the diagnostic test modes shown below.

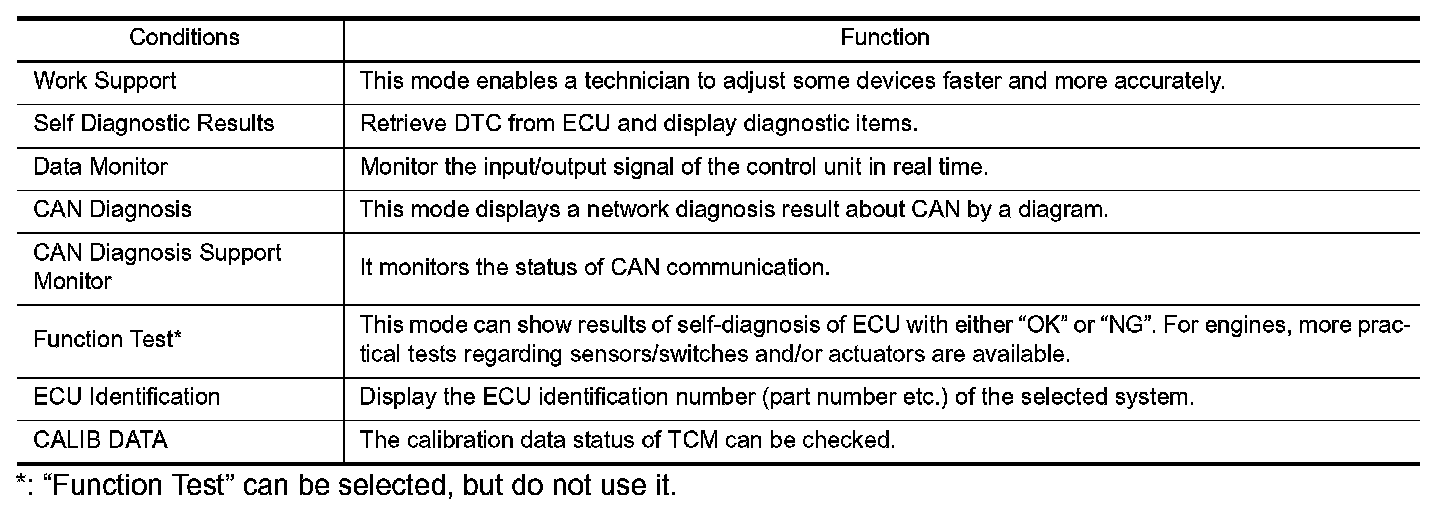

FUNCTION






*: "Function Test" can be selected, but do not use it.

SELF-DIAGNOSTIC RESULT MODE

Testing and Inspection.

DATA MONITOR MODE

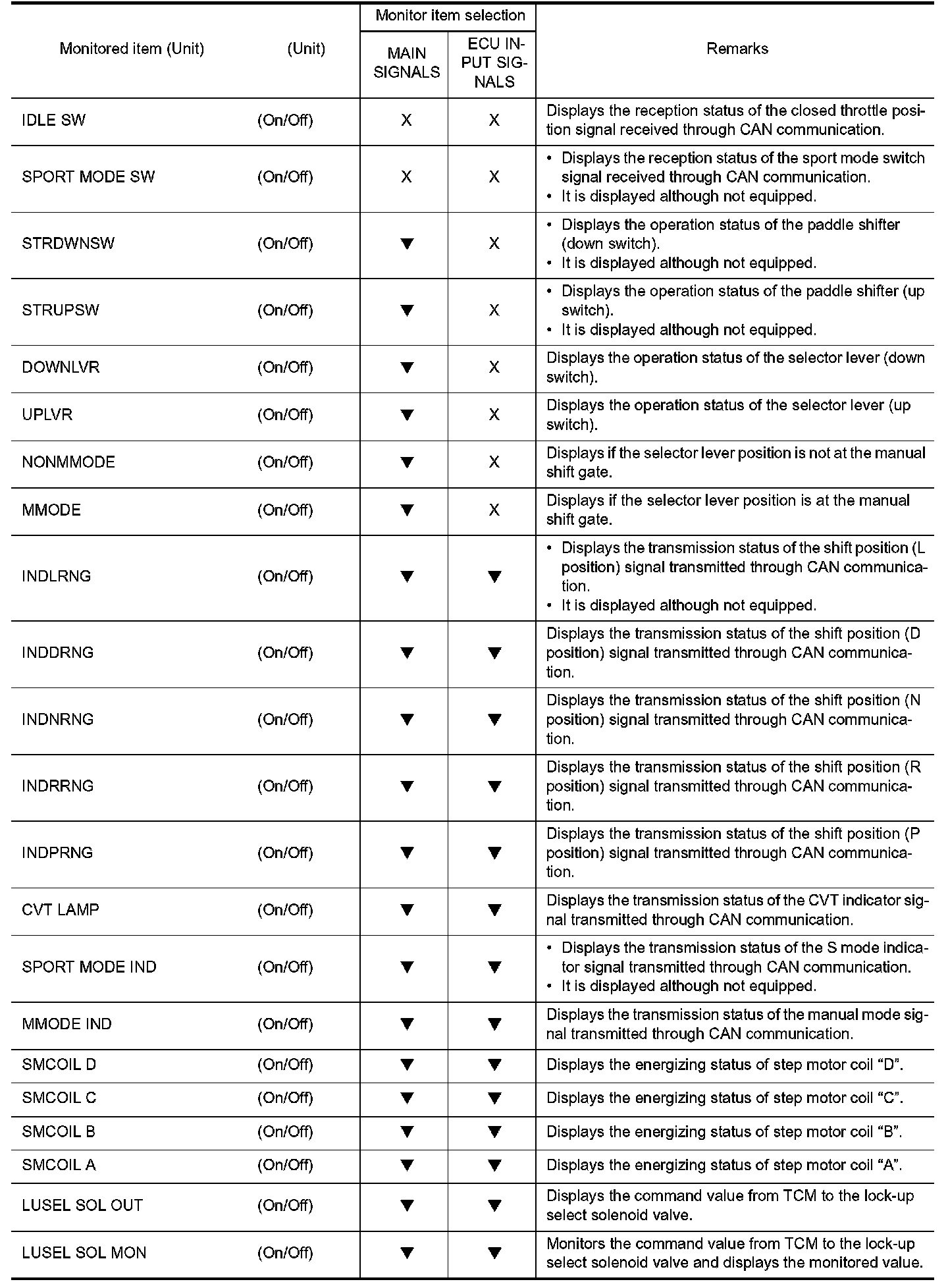

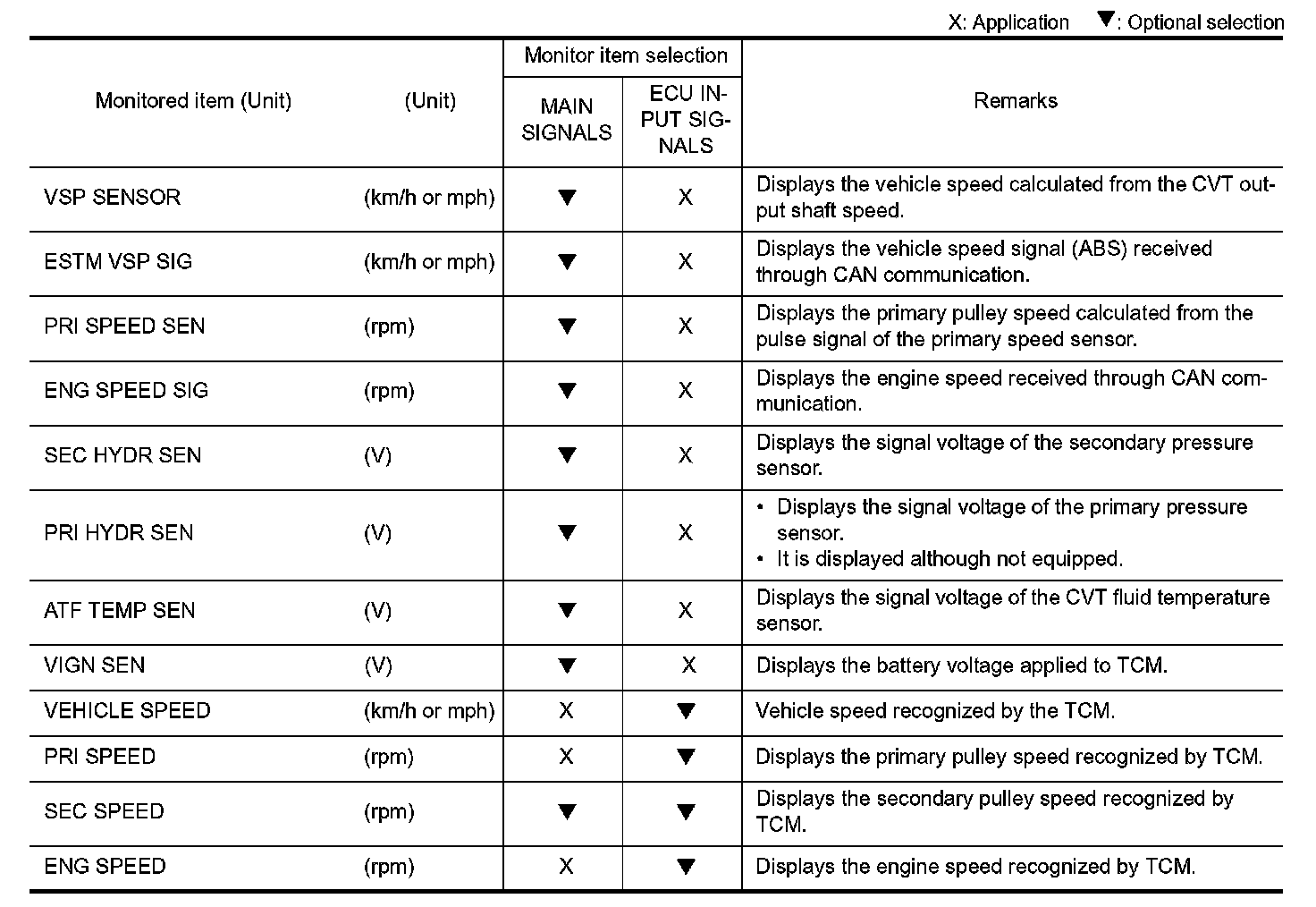

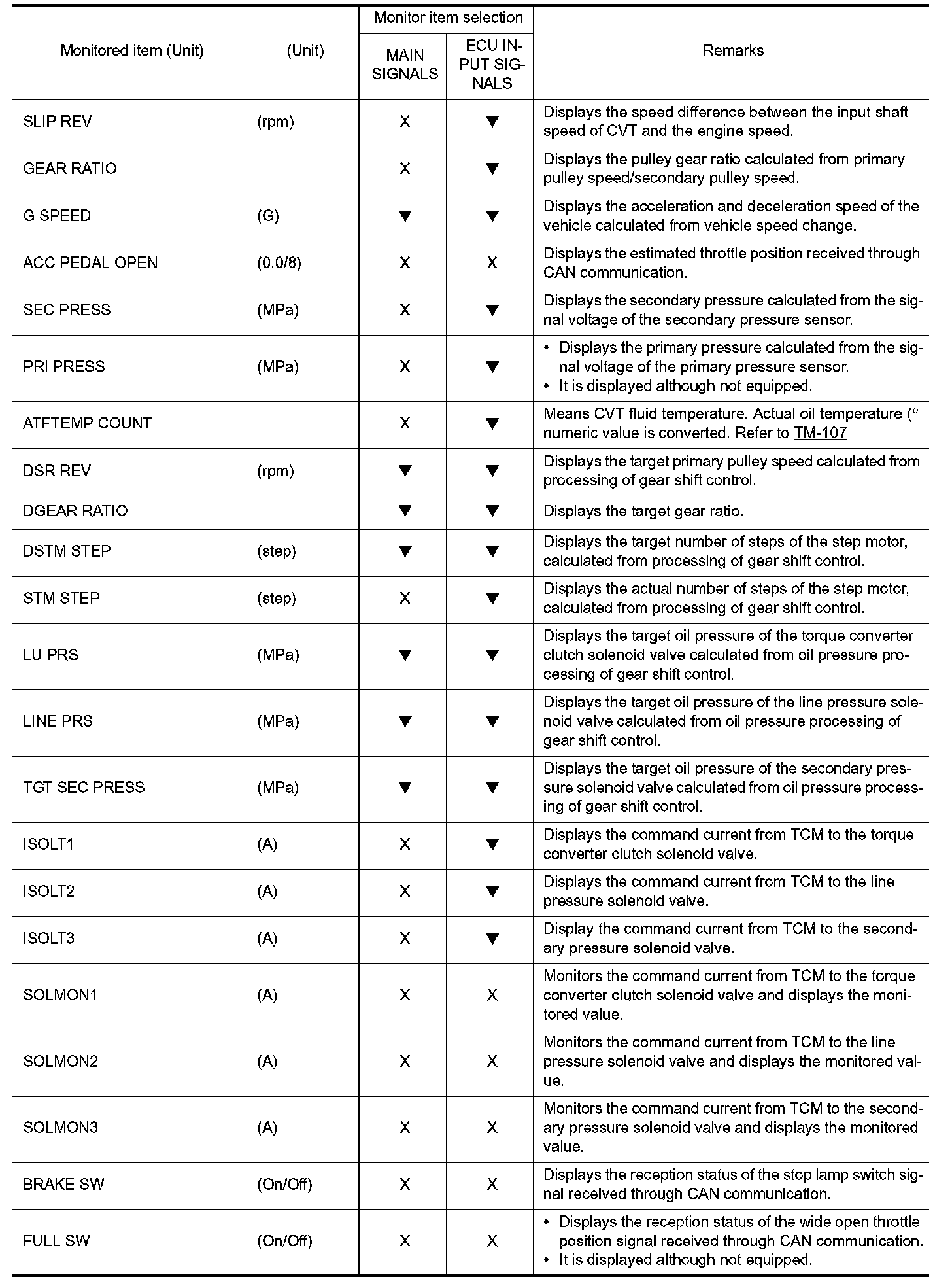

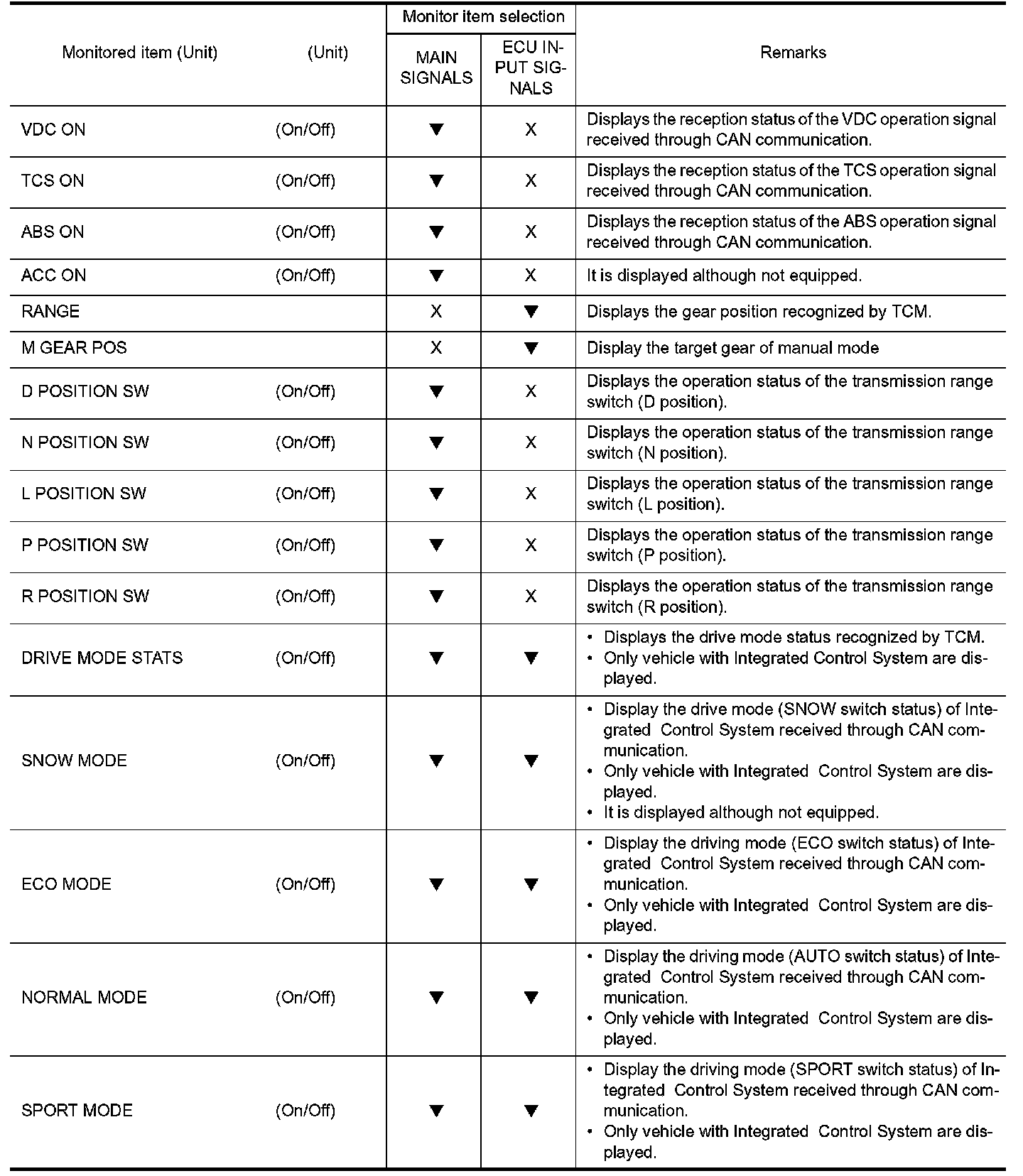

Display Items List
X: Application : Optional selection





















WORK SUPPORT MODE

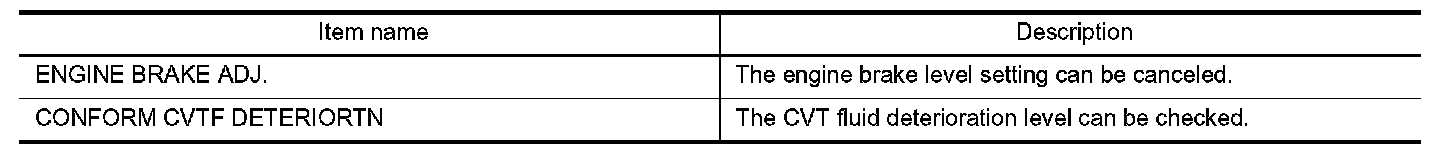

Display Item List





Engine Brake Adjustment
"ENGINE BRAKE LEVEL"
0:Initial set value (Engine brake level control is activated)
OFF:Engine brake level control is deactivated.

CAUTION:
Mode of "+1""0""-1""-2""OFF" can be selected by pressing the "UP""DOWN" on CONSULT screen.
However, do not select mode other than "0" and "OFF". If the "+1" or "-1" or "-2" is selected, that might cause the irregular driveability.
Check CVT Fluid Deterioration Date

"CVTF DETERIORATION DATE"
210000 or more:
It is necessary to change CVT fluid.

Less than 210000:
It is not necessary to change CVT fluid.

CAUTION:
Touch "CLEAR" after changing CVT fluid, and then erase "CVTF DETERIORATION DATE".
