Reference Value




TCM

Reference Value

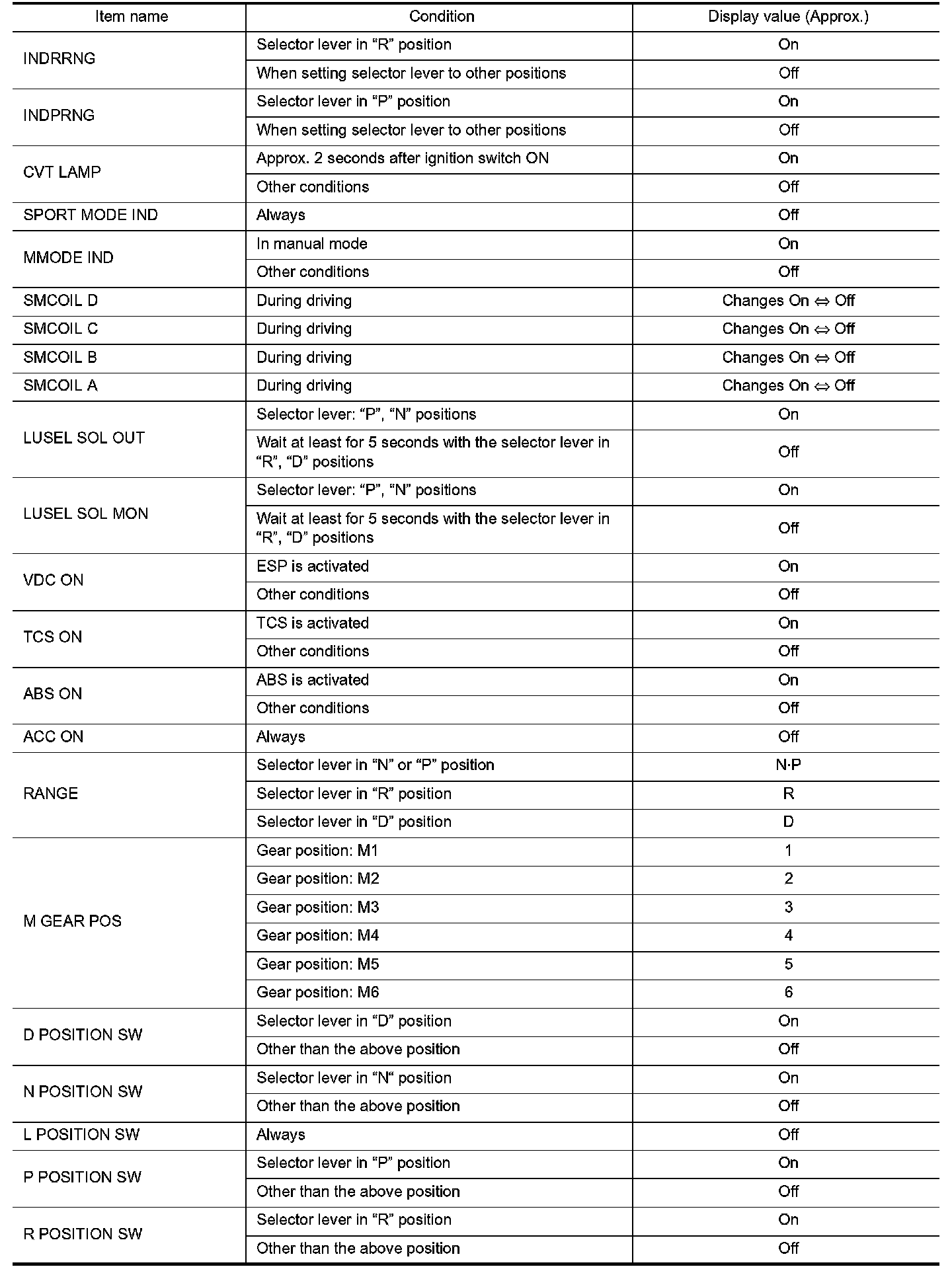

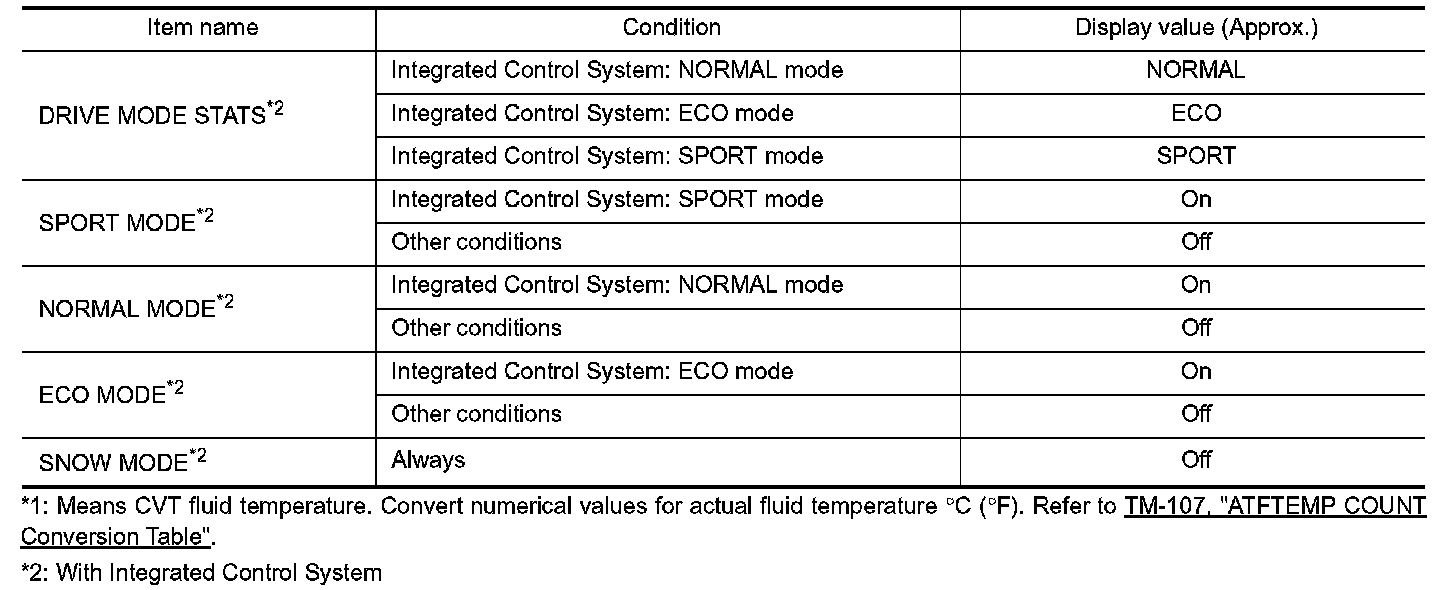

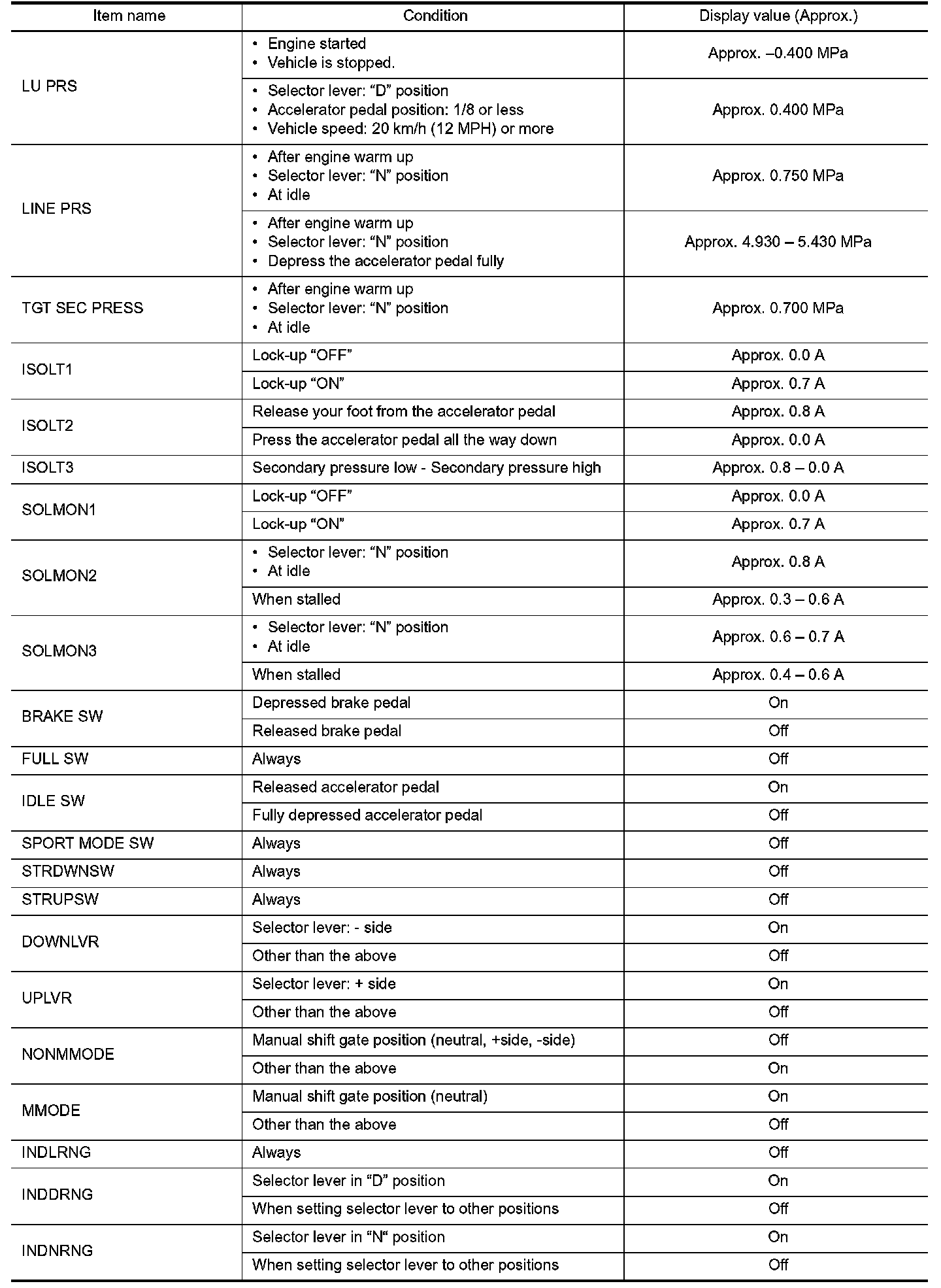

VALUES ON THE DIAGNOSIS TOOL

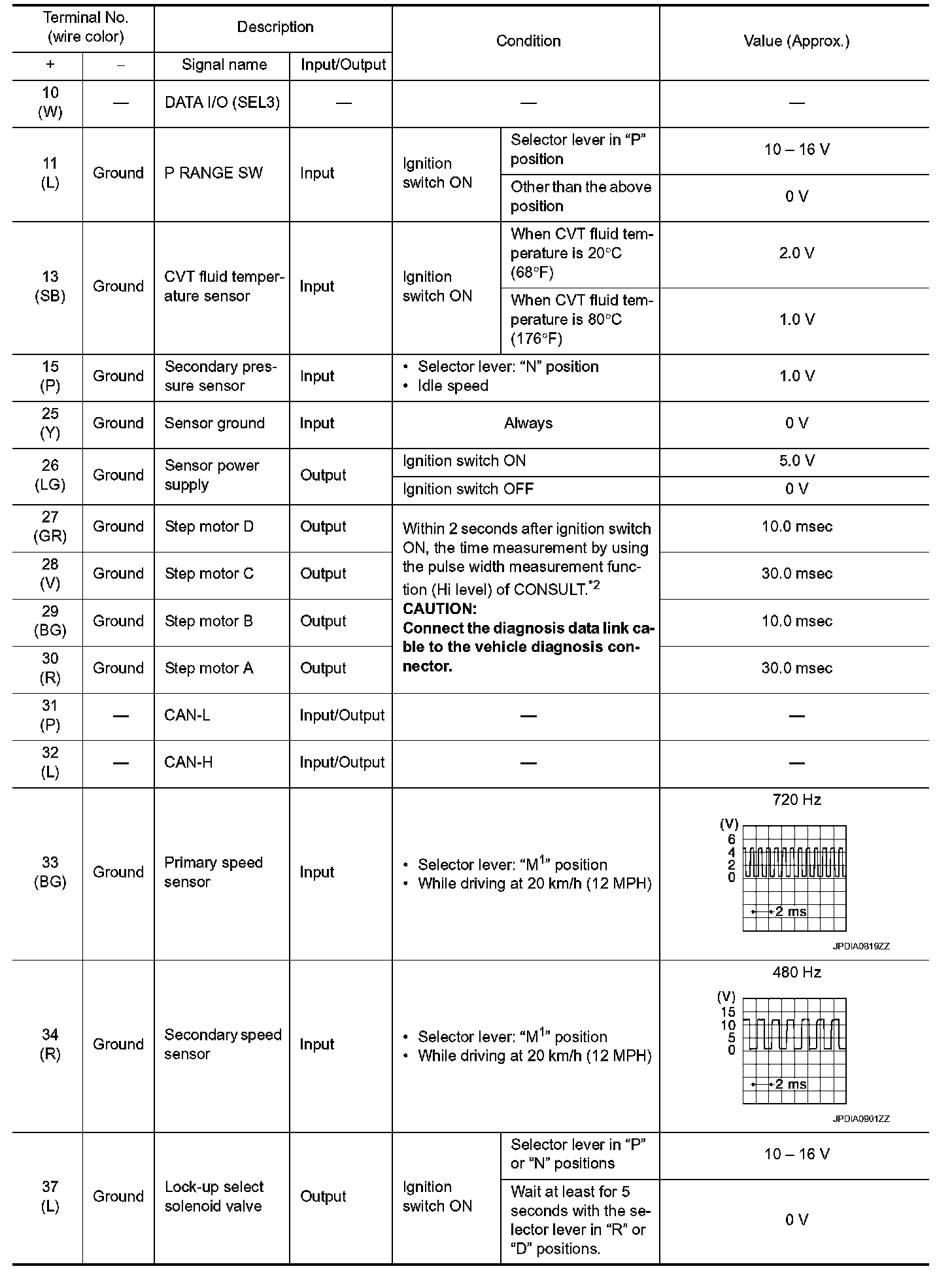

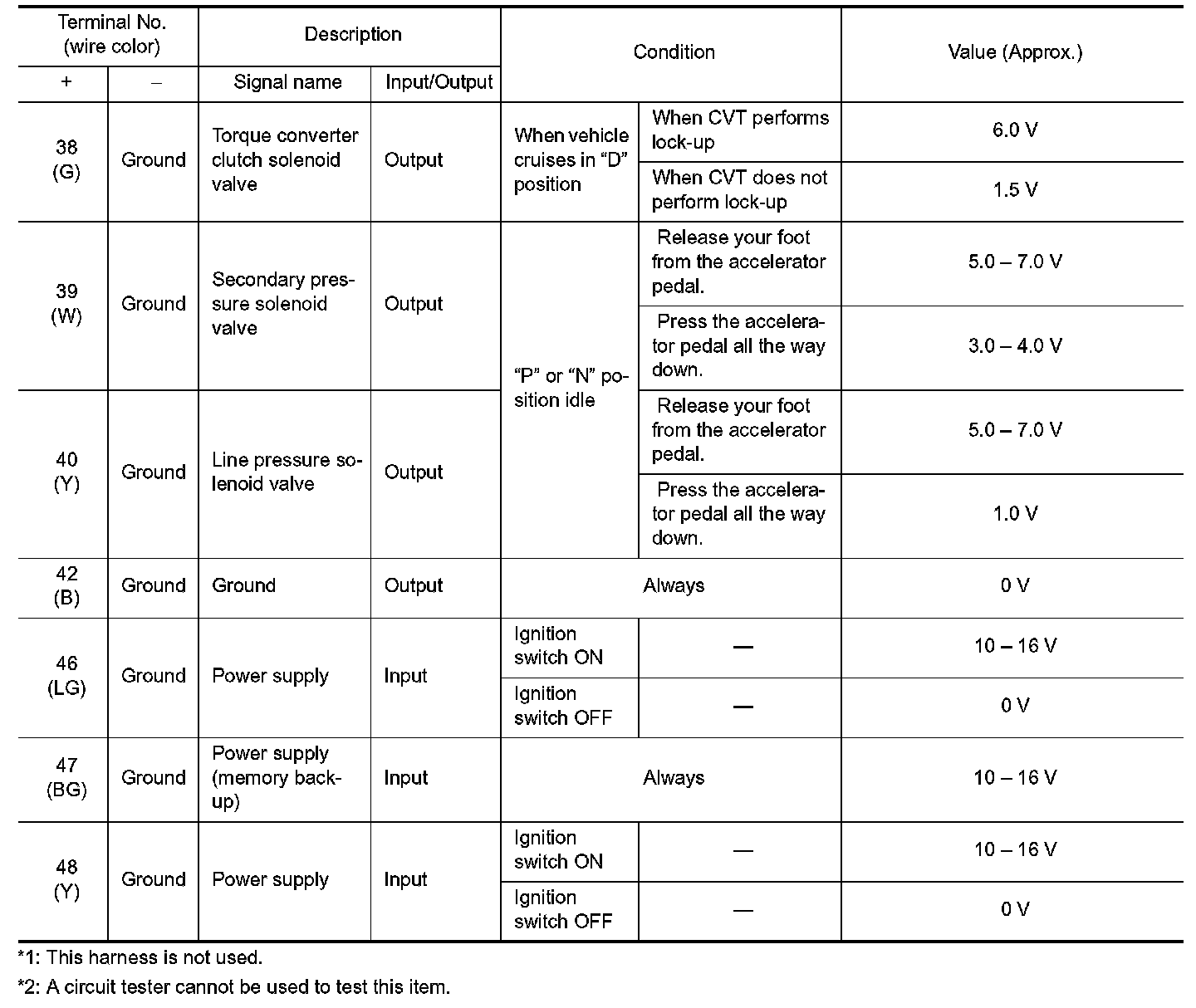

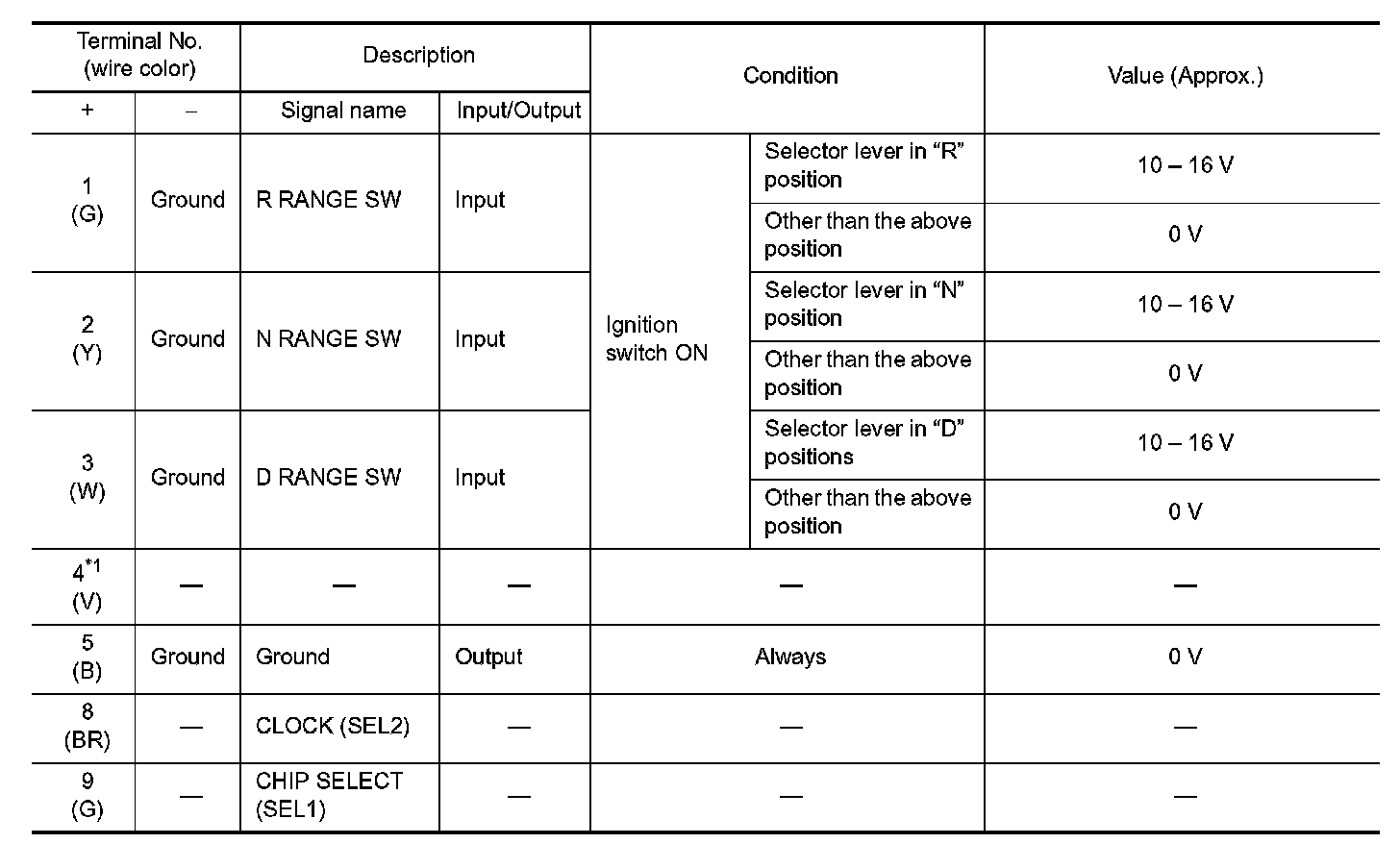

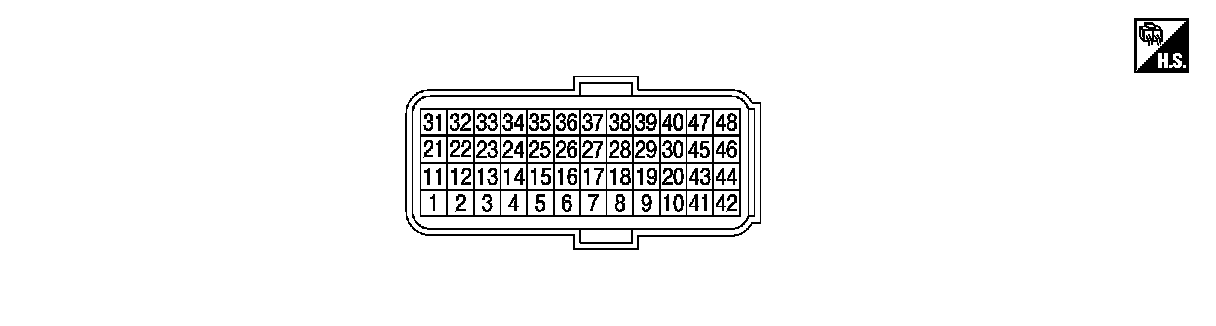

TERMINAL LAYOUT







PHYSICAL VALUES
