Special Service Tools




PREPARATION

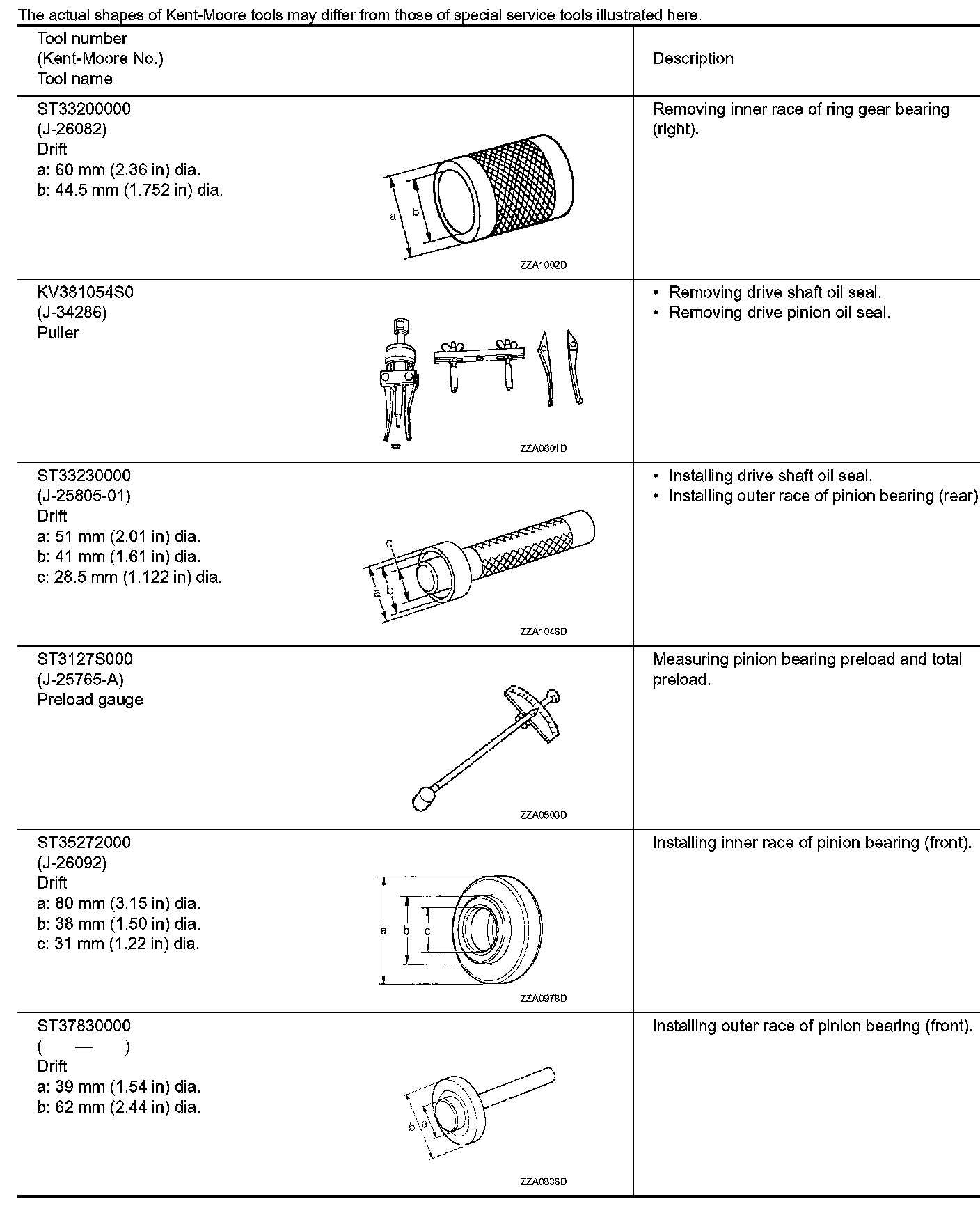

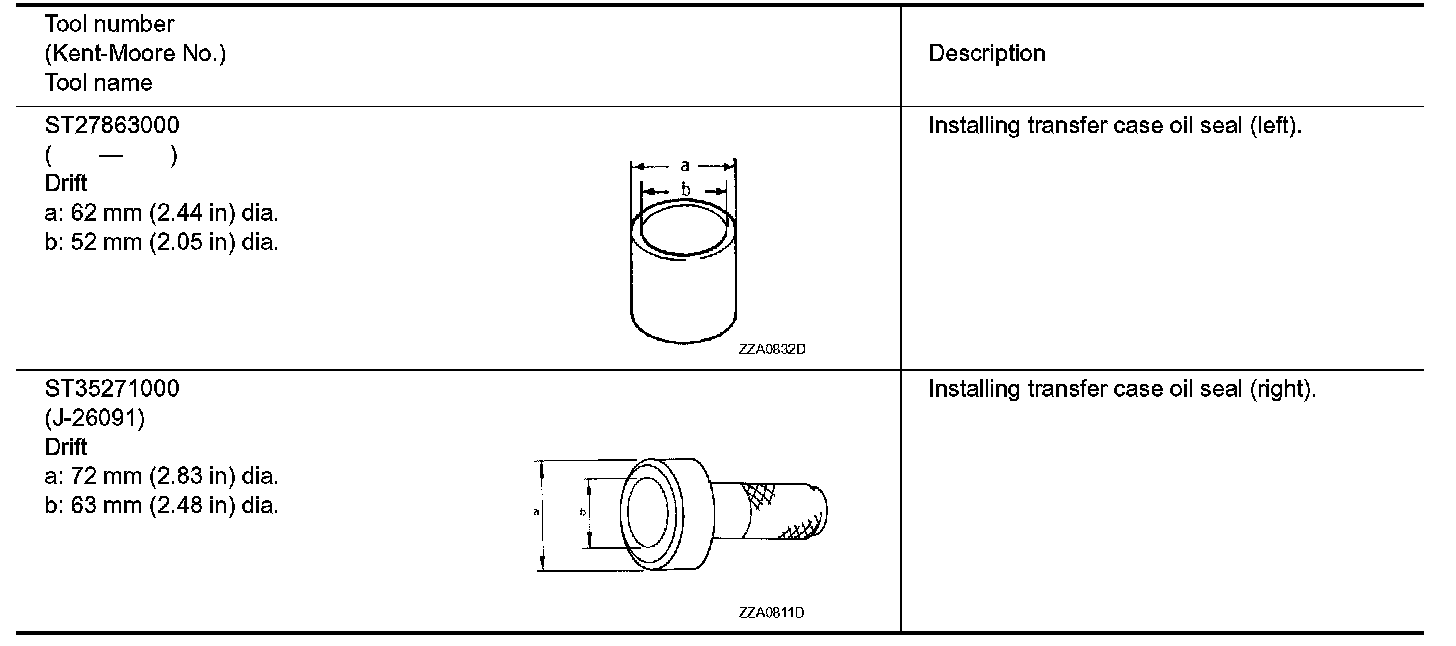

Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
