Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (AWD CONTROL MODULE)

CONSULT Function

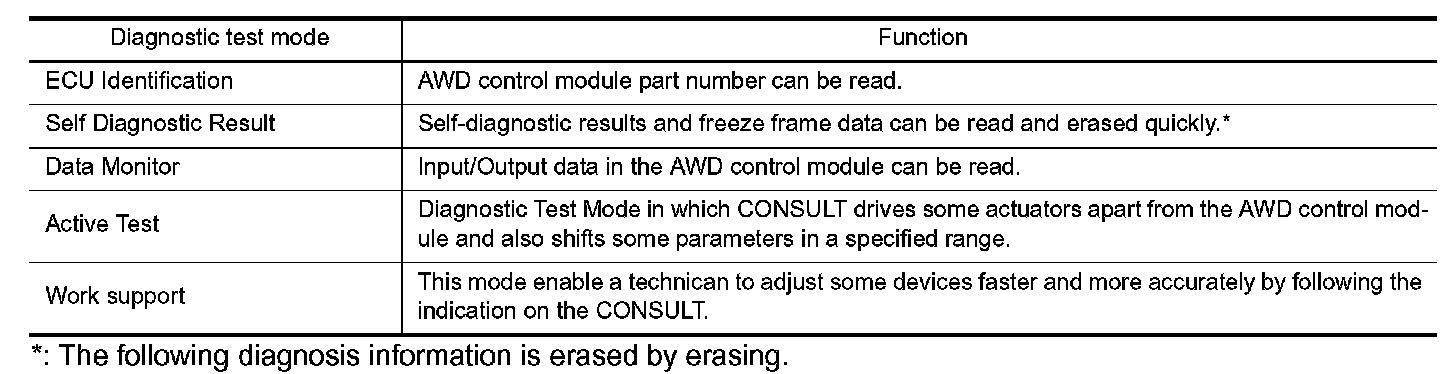

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes as follows.





*: The following diagnosis information is erased by erasing.
- DTC
- Freeze frame data (FFD)

ECU IDENTIFICATION

AWD control module part number can be read.

SELF DIAGNOSTIC RESULT

Testing and Inspection.
- The system is presently malfunctioning.
- System malfunction in the past is detected, but the system is presently normal.

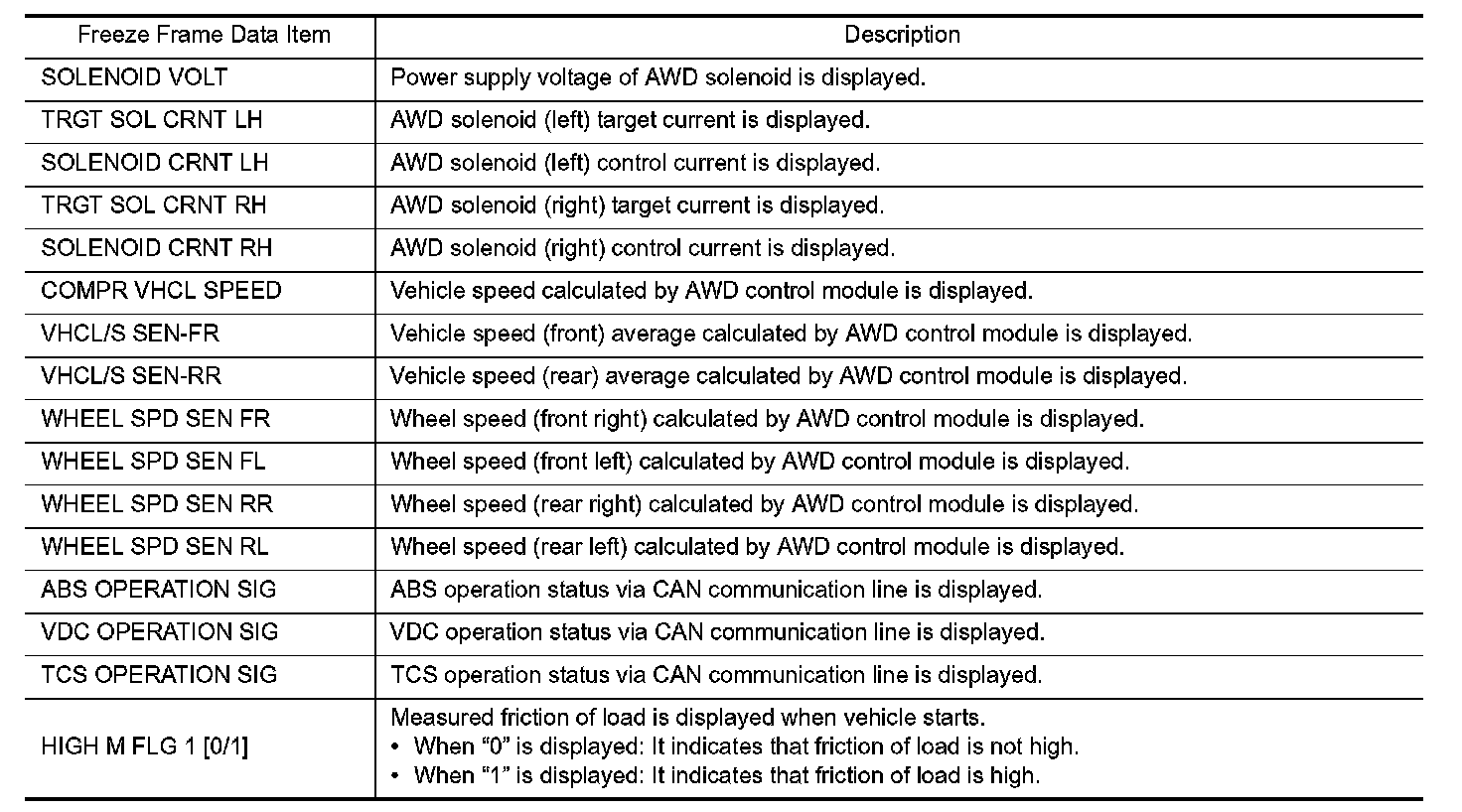

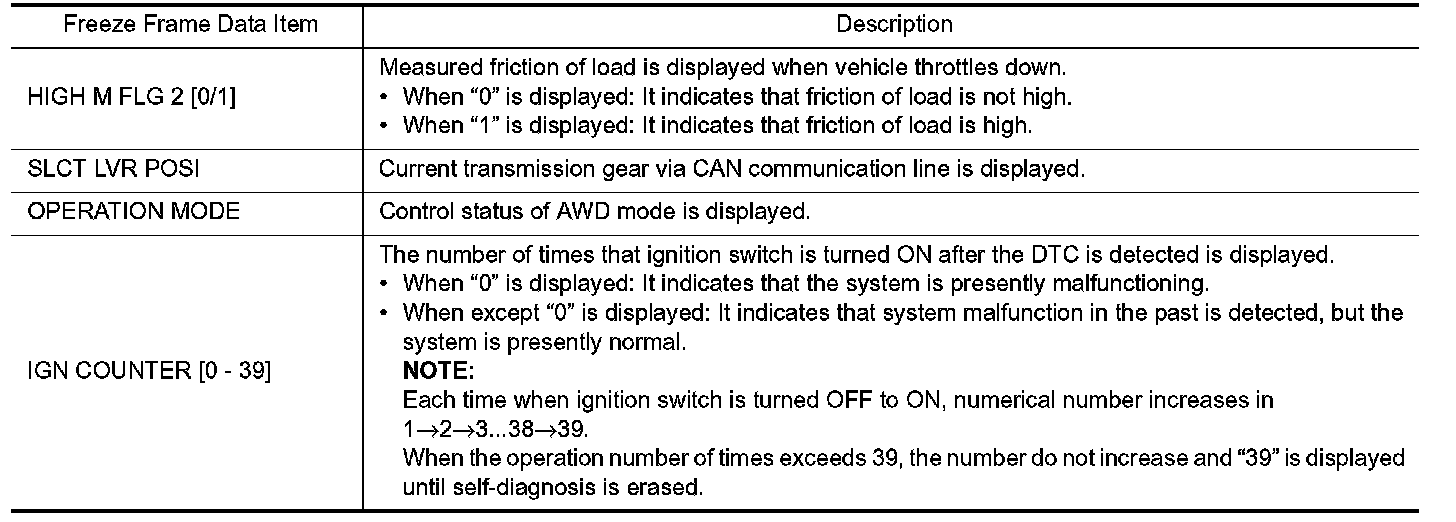

FREEZE FRAME DATA (FFD)
The following vehicle status is recorded when DTC is detected and is displayed.

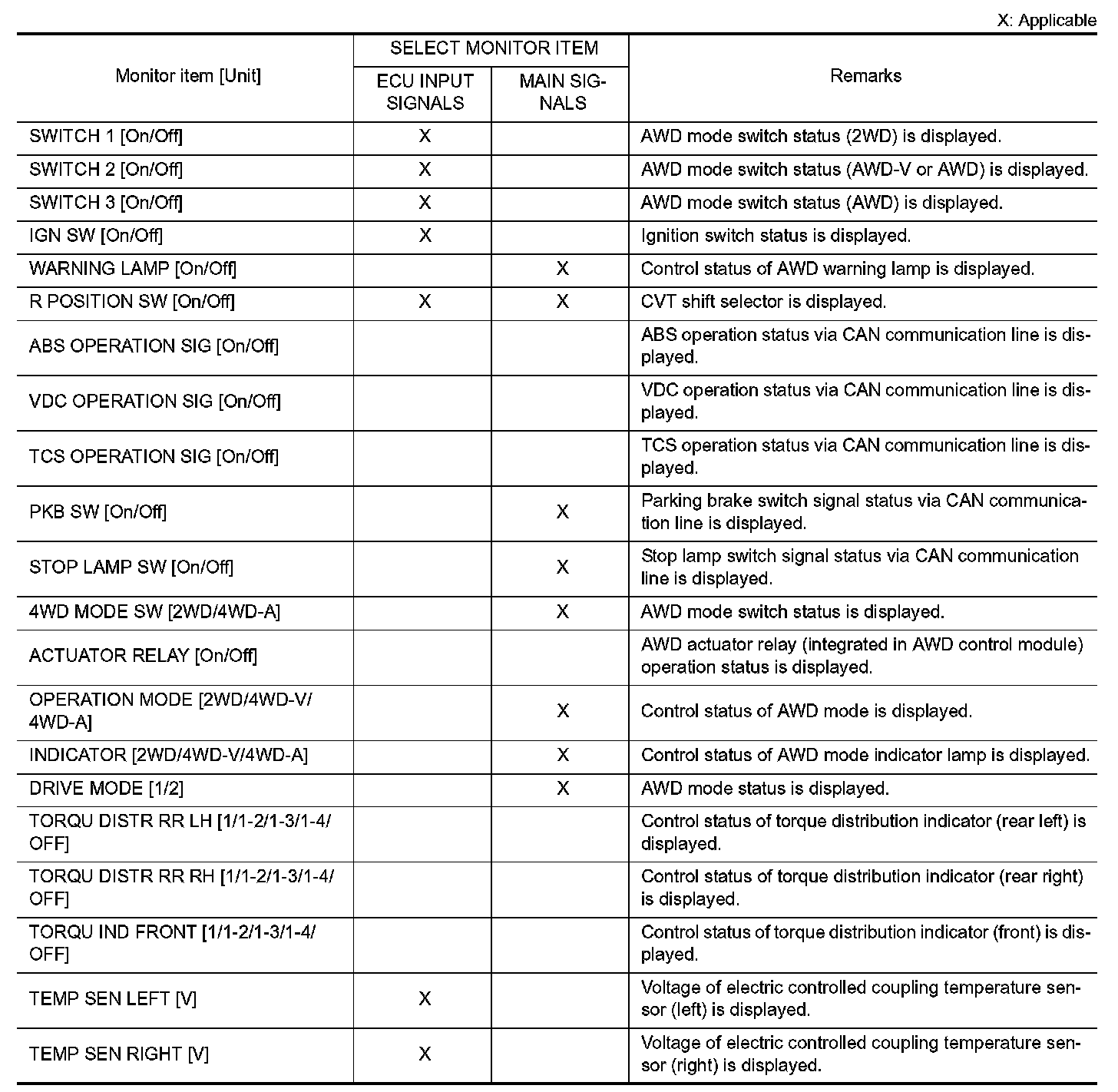

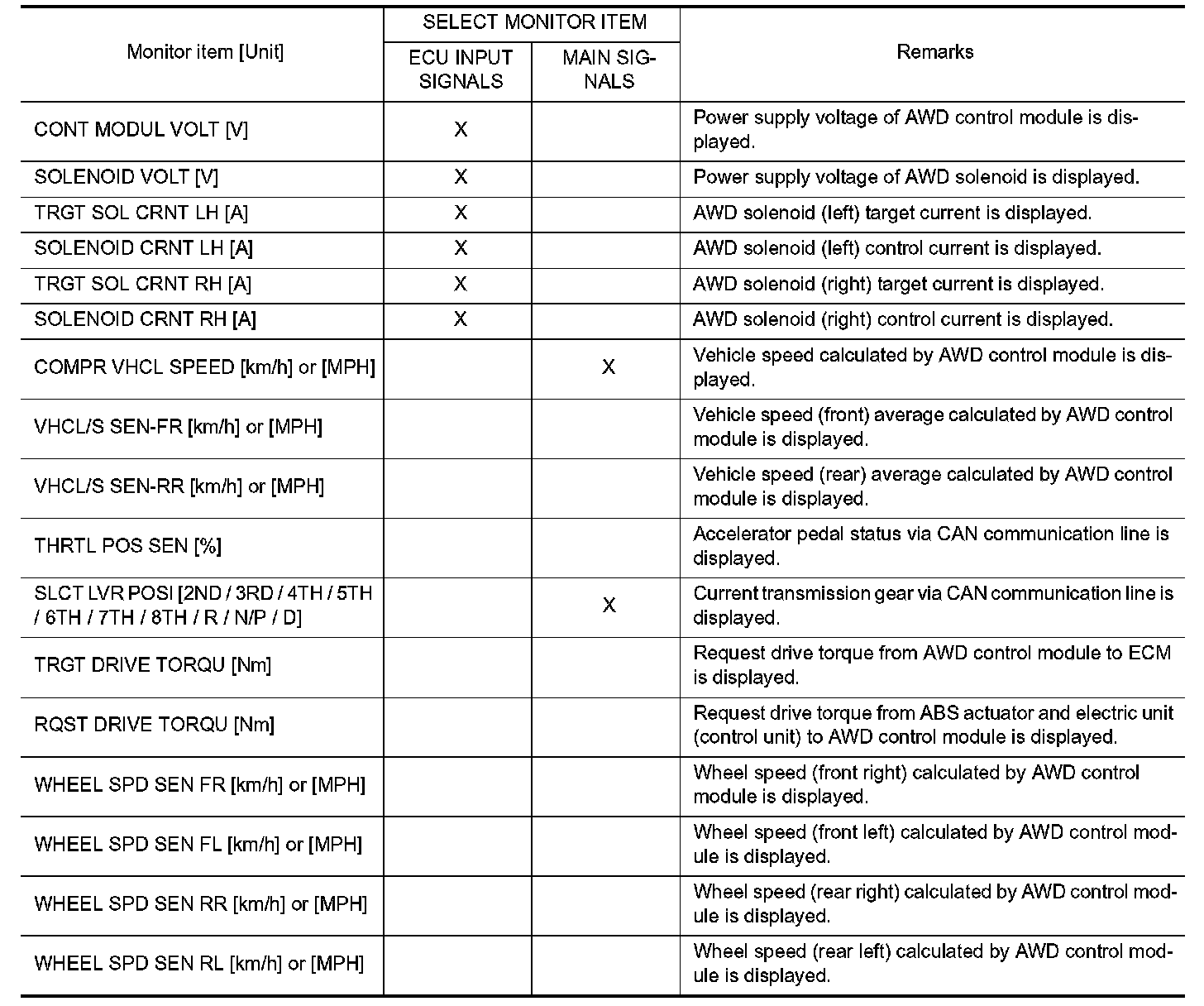

DATA MONITOR

X: Applicable

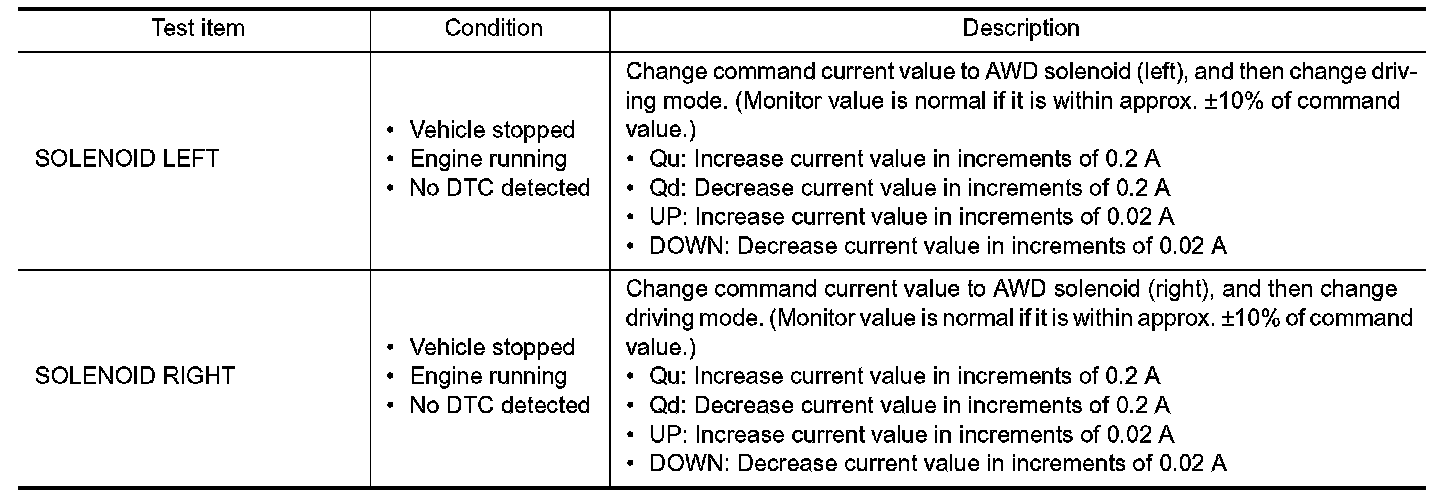

ACTIVE TEST

Use this mode to determine and identify the details of a malfunction based on self-diagnostic results or data monitor. AWD control module gives drive signal to actuator with receiving command from CONSULT to check operation of actuator.






CAUTION:
Never energize continuously for a long time.

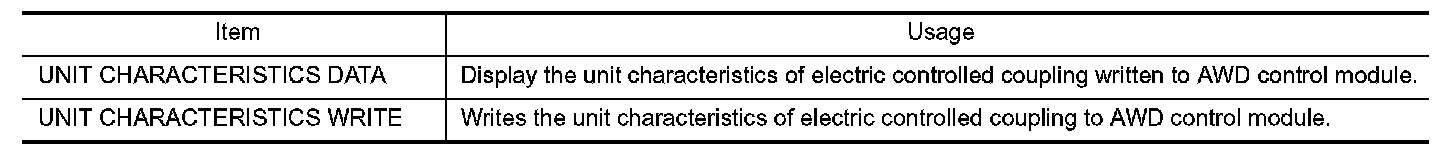

WORK SUPPORT
