AWD System : Fail-Safe




SYSTEM

AWD SYSTEM : Fail-safe

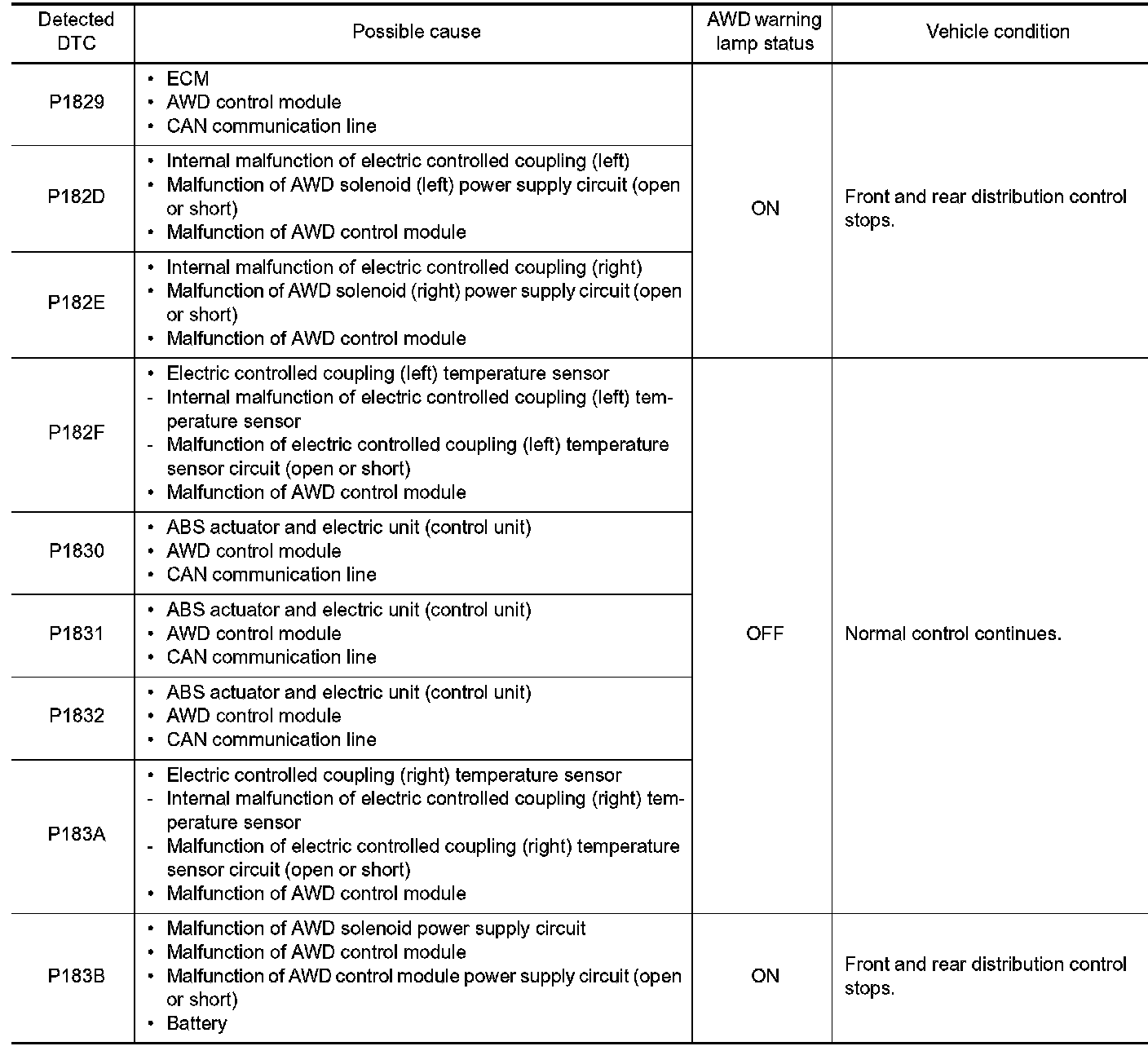

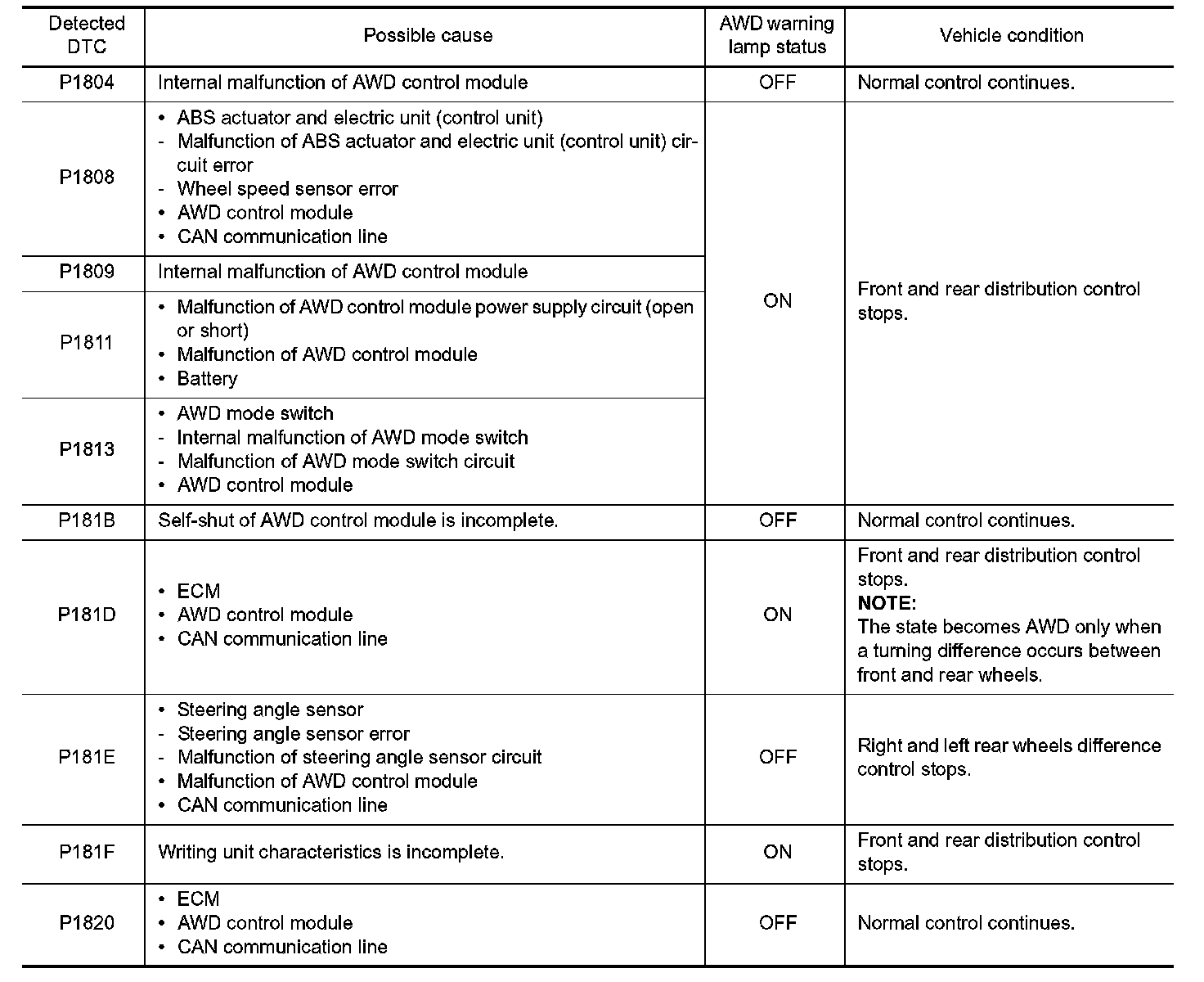

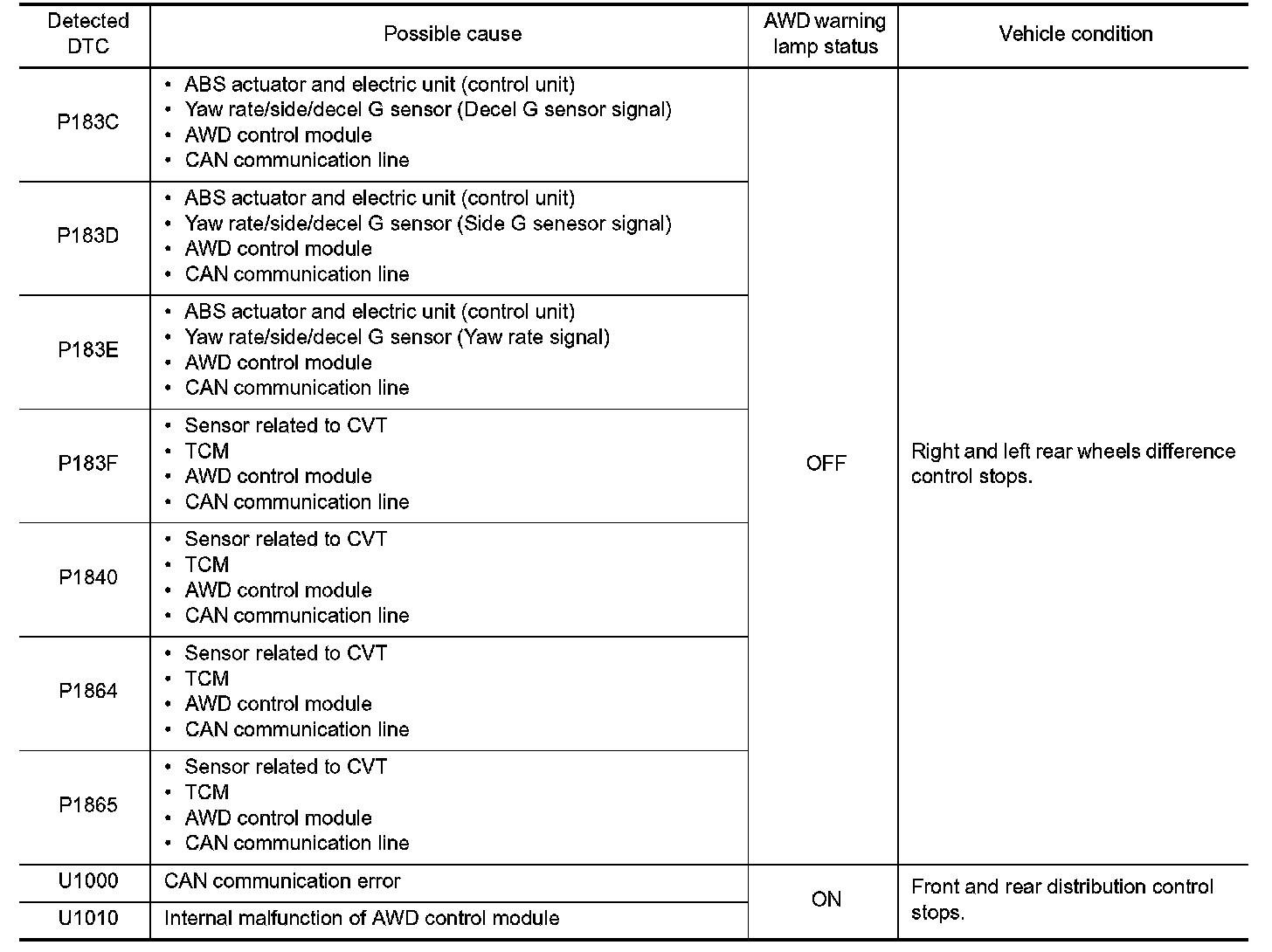

When a system malfunction occurs, the AWD warning lamp turns ON and the AWD control becomes 2WD
state.
