System Diagram




SYSTEM

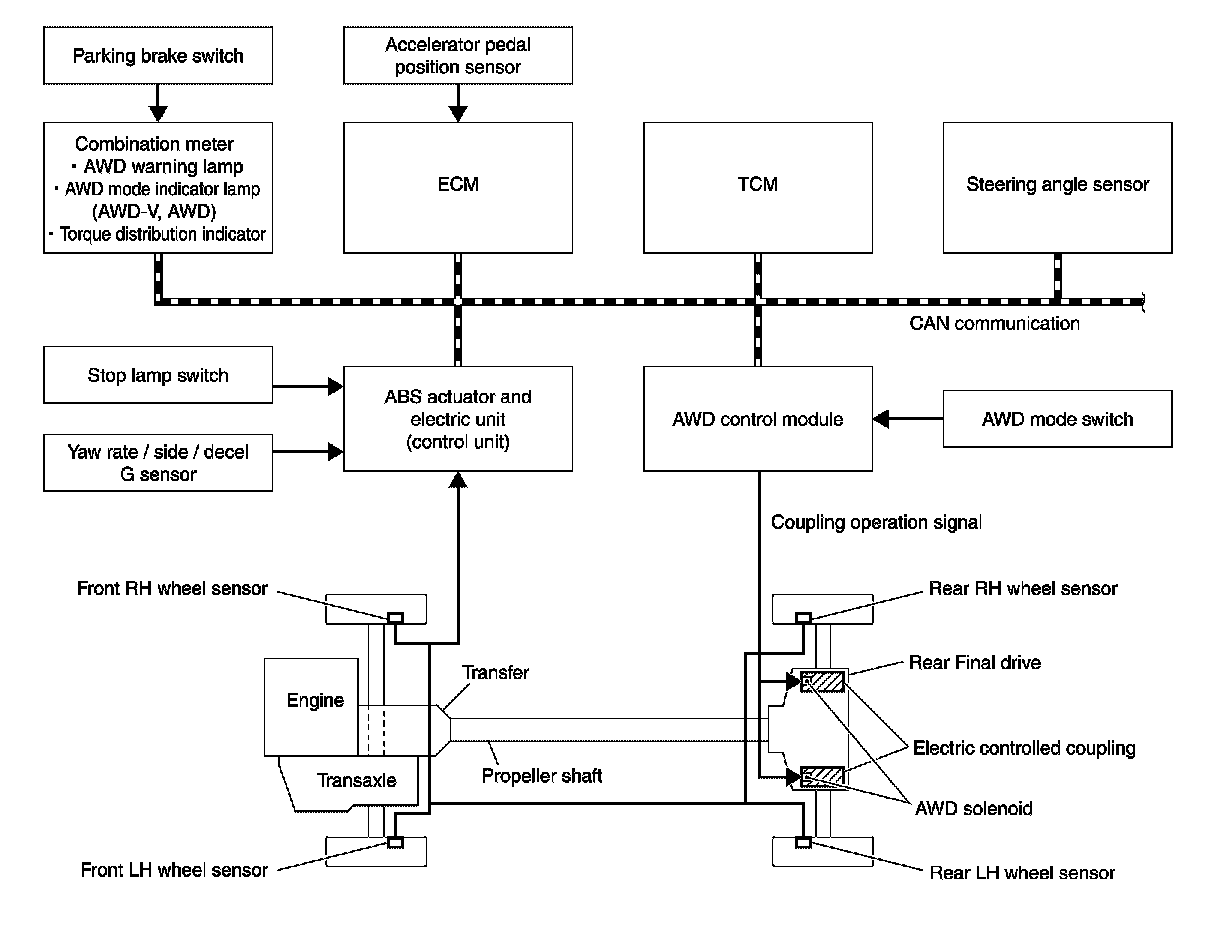

AWD SYSTEM : System Diagram

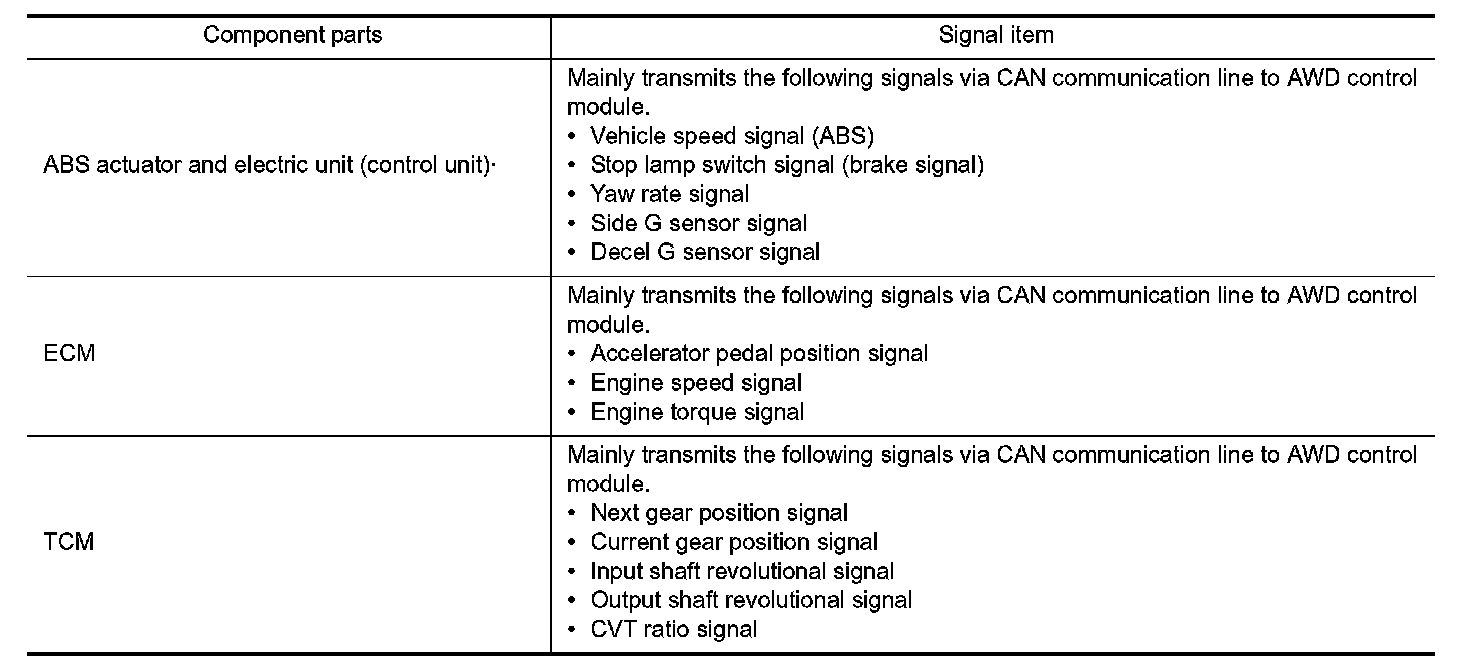

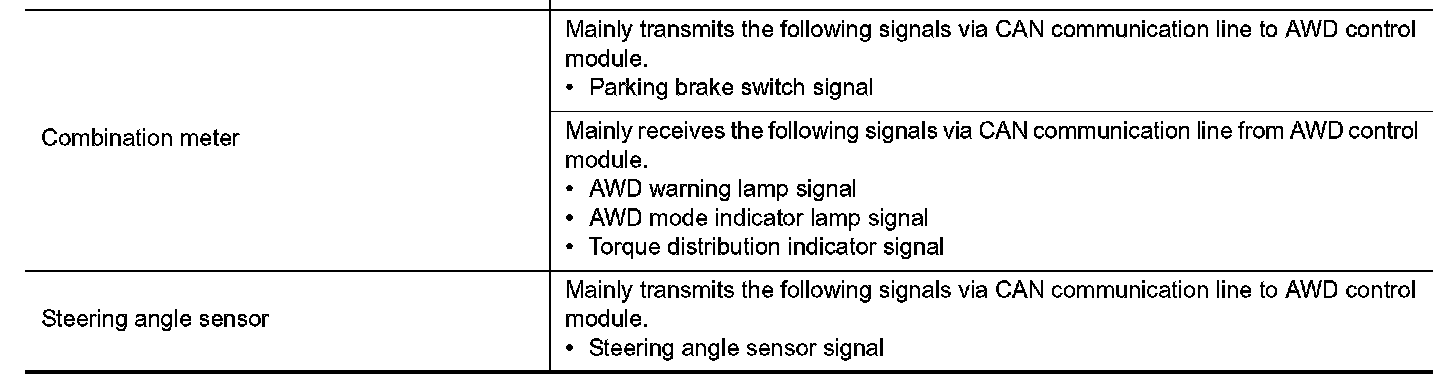

INPUT/OUTPUT SIGNAL

It transmits/receives each signal from the following AWD control module via CAN communication line.
