Back-Up Lamp Switch

POSITION SWITCH

BACK-UP LAMP SWITCH : Component Inspection


1. CHECK BACK-UP LAMP SWITCH

1.Disconnect position switch connector. Removal And Installation.

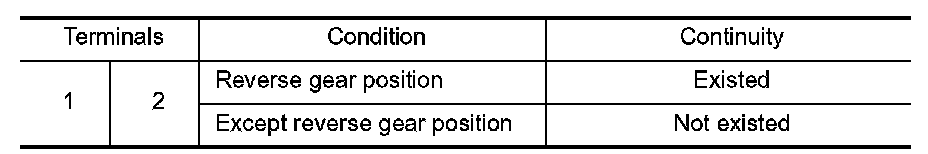

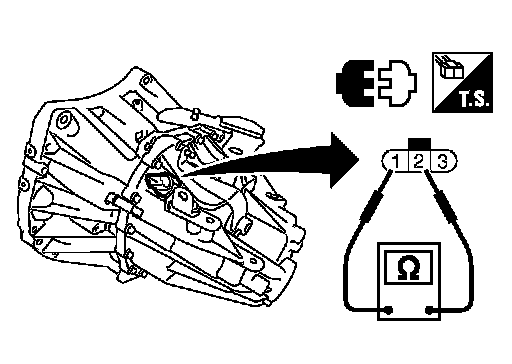

2.Check continuity between position switch terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace position switch. Removal And Installation.
