Draining

GEAR OIL

Draining

1.Start engine and let it run to warm up transaxle.

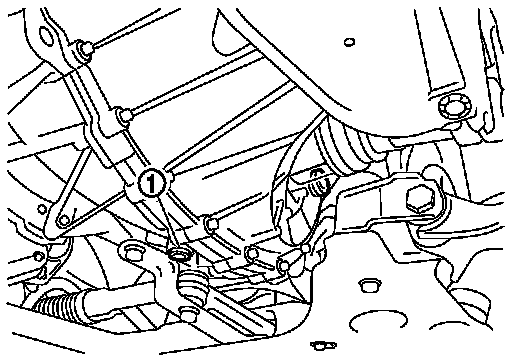

2.Stop engine. Remove drain plug (1) and gasket, using a socket
[Commercial service tool] and then drain gear oil.
3.Set a gasket on drain plug and install it to clutch housing, using a socket [Commercial service tool].

CAUTION:
Never reuse gasket.
4.Tighten drain plug to the specified torque. Exploded View.
