Disassembly

REVERSE IDLER SHAFT AND GEAR

Disassembly

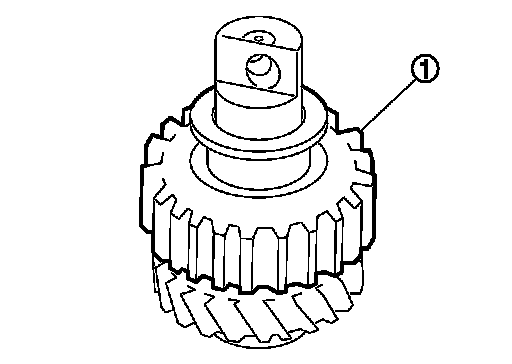

1.Remove reverse output gear (1).

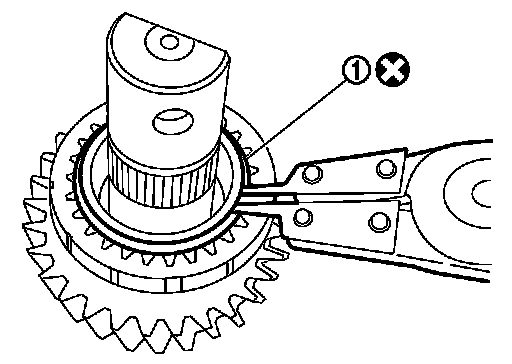

2.Remove snap ring (1).

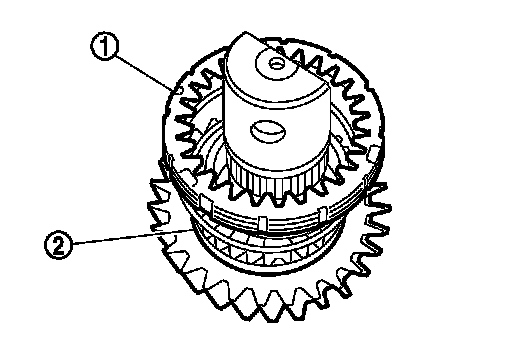

3.Remove reverse baulk ring (1) and return spring (2).

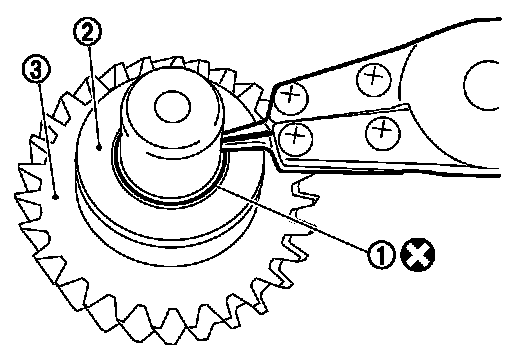

4.Remove snap ring (1), lock washer (2), and reverse input gear (3).

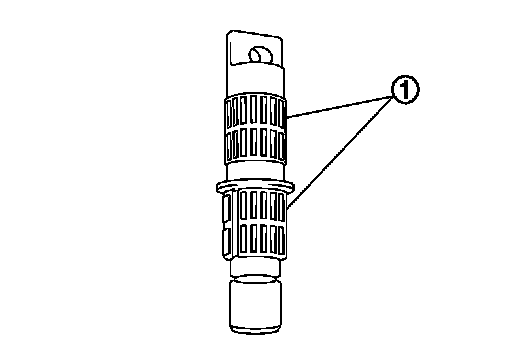

5.Remove needle bearings (1) and washer.
