Disassembly

FINAL DRIVE

Disassembly

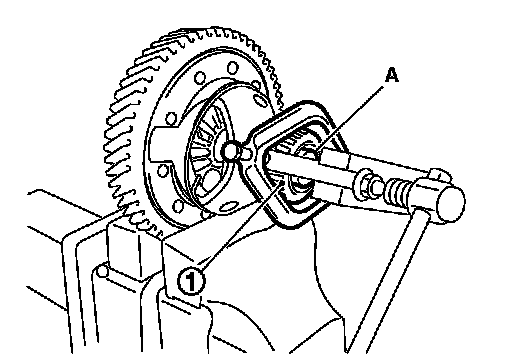

1.Remove differential side bearing inner race (clutch housing side)
(1), as per the following procedure.
a.Set a puller [Commercial service tool] to differential side bearing inner race (clutch housing side).
b.Remove differential side bearing inner race (clutch housing side), using the drift (A) [SST: ST-33061000 (J-8107-2)].





2.Remove final gear mounting bolts, and then remove final gear (1).

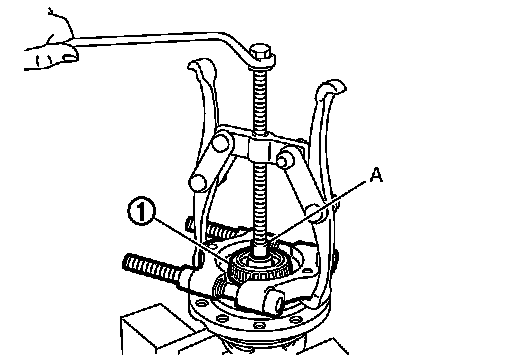

3.Remove differential side bearing inner race (transaxle case side) (1), as per the following procedure.
a.Set a puller [Commercial service tool] to differential side bearing inner race (transaxle case side).
b.Remove differential side bearing inner race (transaxle case side), using a drift (A) [Commercial service tool].
