Assembly

FINAL DRIVE

Assembly

1.Install final gear, and then tighten final gear mounting bolts to the specified torque.

CAUTION:
Replace final gear and differential case as a set.

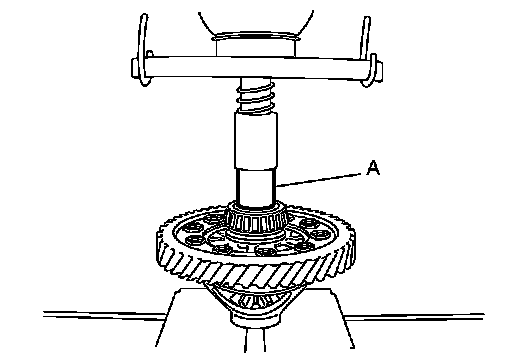

2.Install differential side bearing inner race (clutch housing side), using a drift (A) [Commercial service tool].

CAUTION:
Replace differential side bearing inner race (clutch housing side) and differential side bearing outer race (clutch housing side) as a set.

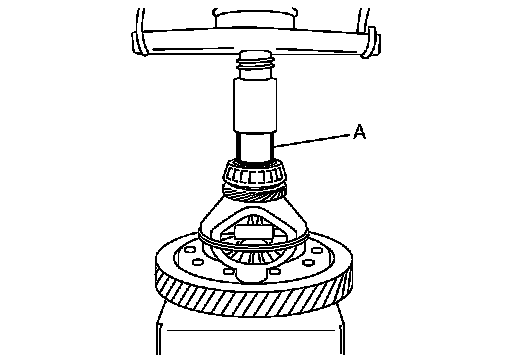

3.Install differential side bearing inner race (transaxle case side), using a drift (A) [Commercial service tool].

CAUTION:
Replace differential side bearing inner race (transaxle case side) and differential side bearing outer race (transaxle case side) as a set.
