Removal And Installation

SIDE OIL SEAL

Removal and Installation


REMOVAL

1.Remove front drive shafts. Front Drive Shaft Left Side (LEFT SIDE) and Front Drive Shaft Right Side (RIGHT SIDE).

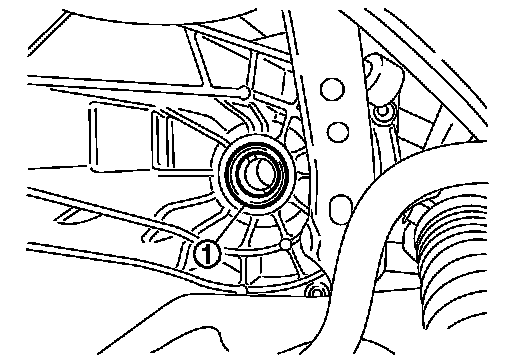

2.Remove differential side oil seals (1) from clutch housing and transaxle case, using an oil seal remover.

CAUTION:
Never damage transaxle case and clutch housing.

INSTALLATION

Note the following, and install in the reverse order of removal.

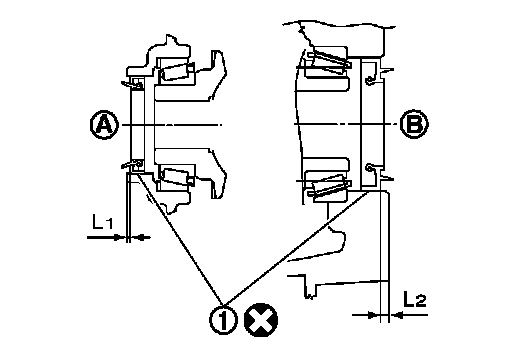

- Install differential side oil seals (1) to clutch housing and transaxle case, using the drift [Stamping number: B.vi 1666-B] of the drift set [SST: KV-32500QAA ( - )].





Dimension "L1": 1.2 - 1.8 mm (0.047 - 0.071 in)
Dimension "L2": 2.7 - 3.3 mm (0.106 - 0.130 in)

CAUTION:
- Never incline differential side oil seal.
- Never damage clutch housing and transaxle case.
