Front Drive Shaft




FRONT DRIVE SHAFT

Exploded View

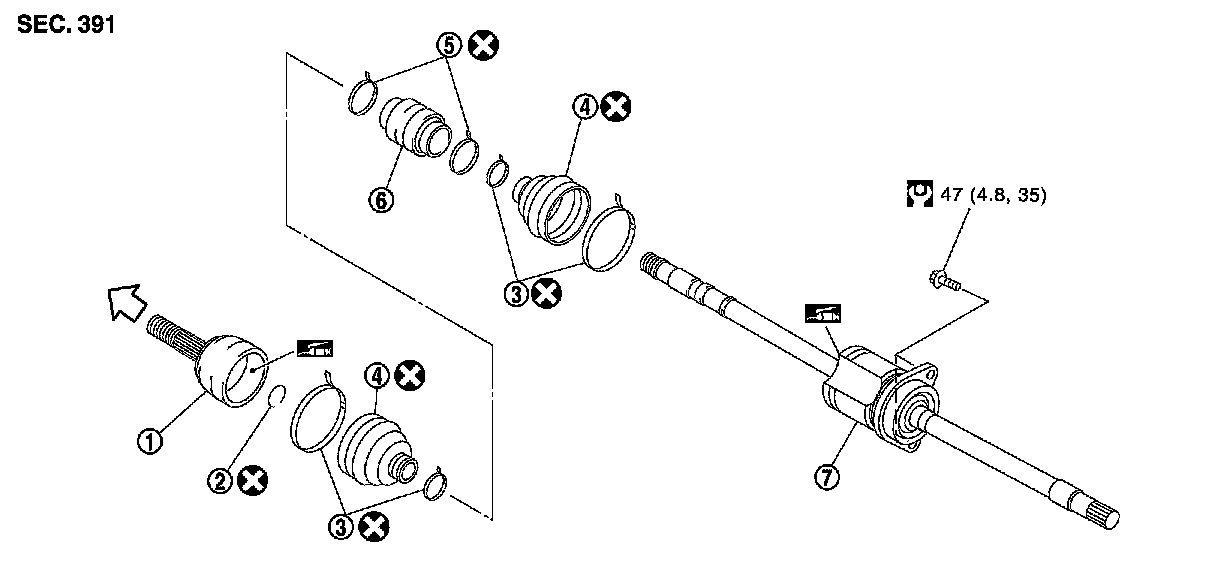

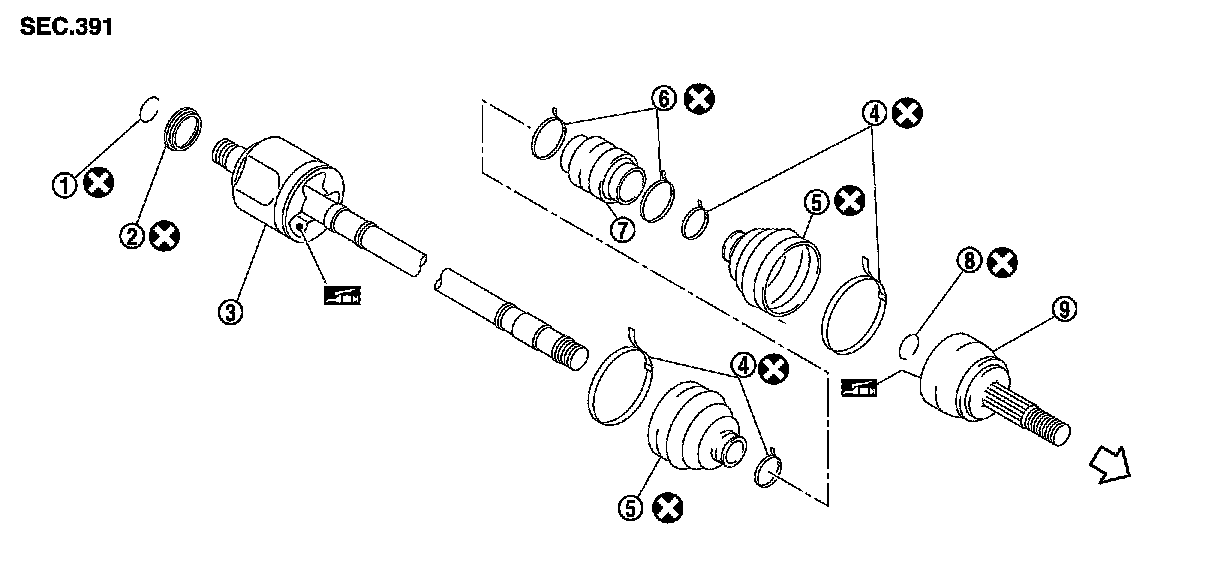

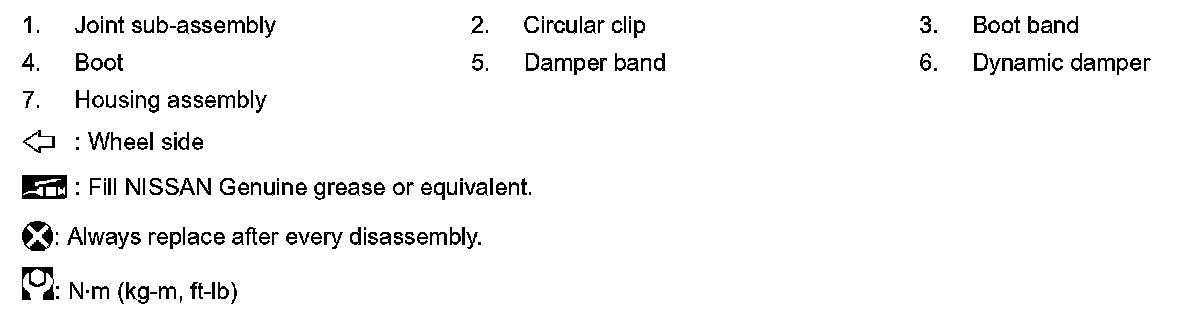

LEFT SIDE

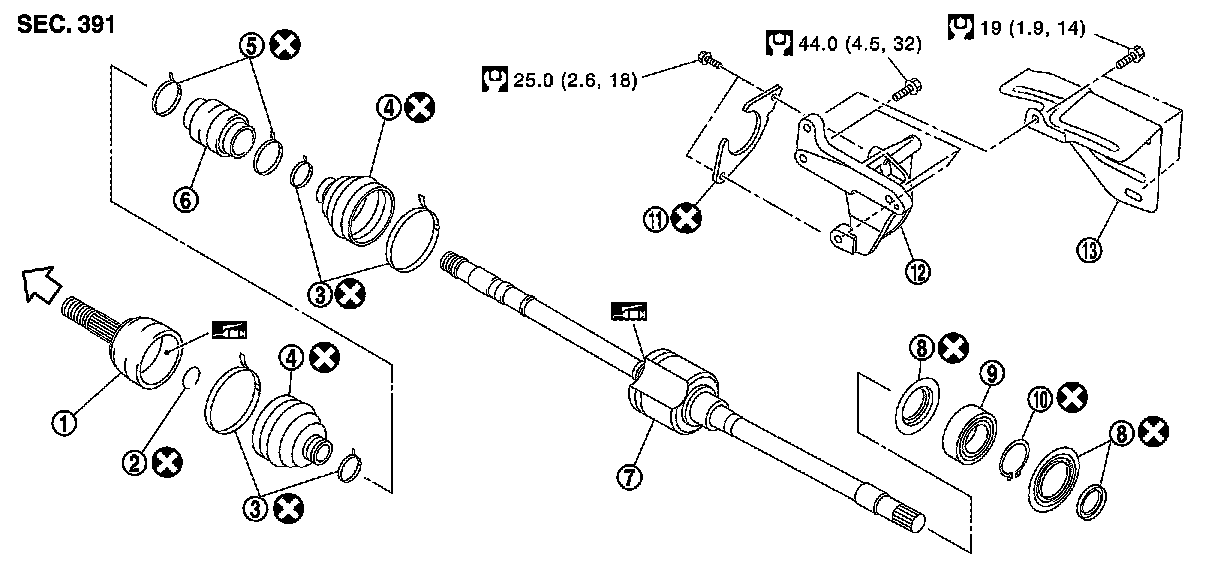

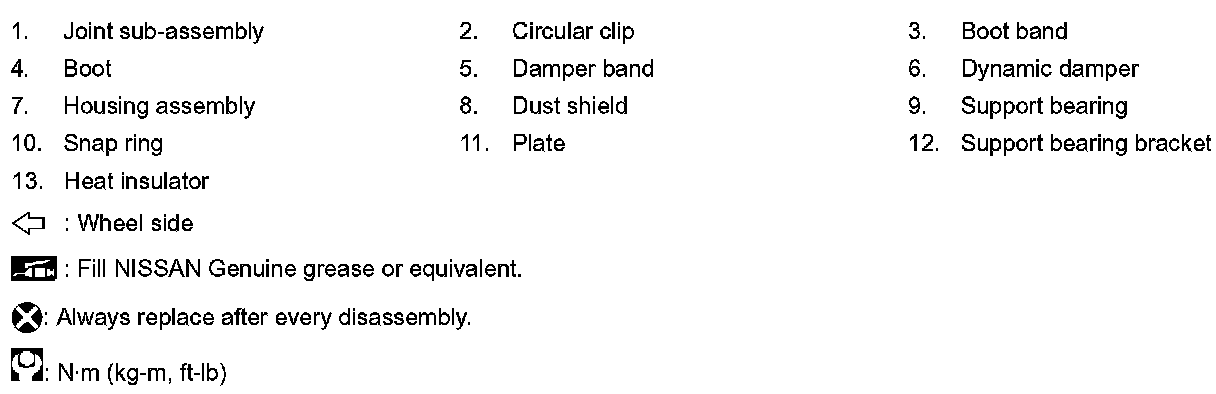

RIGHT SIDE

RIGHT SIDE 2WD











RIGHT SIDE AWD
