Front Drive Shaft Boot
Front Drive Shaft Boot
FRONT DRIVE SHAFT BOOT
Exploded View

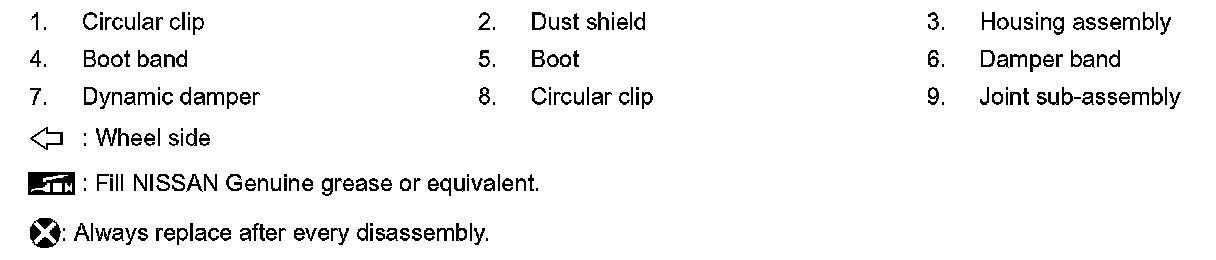

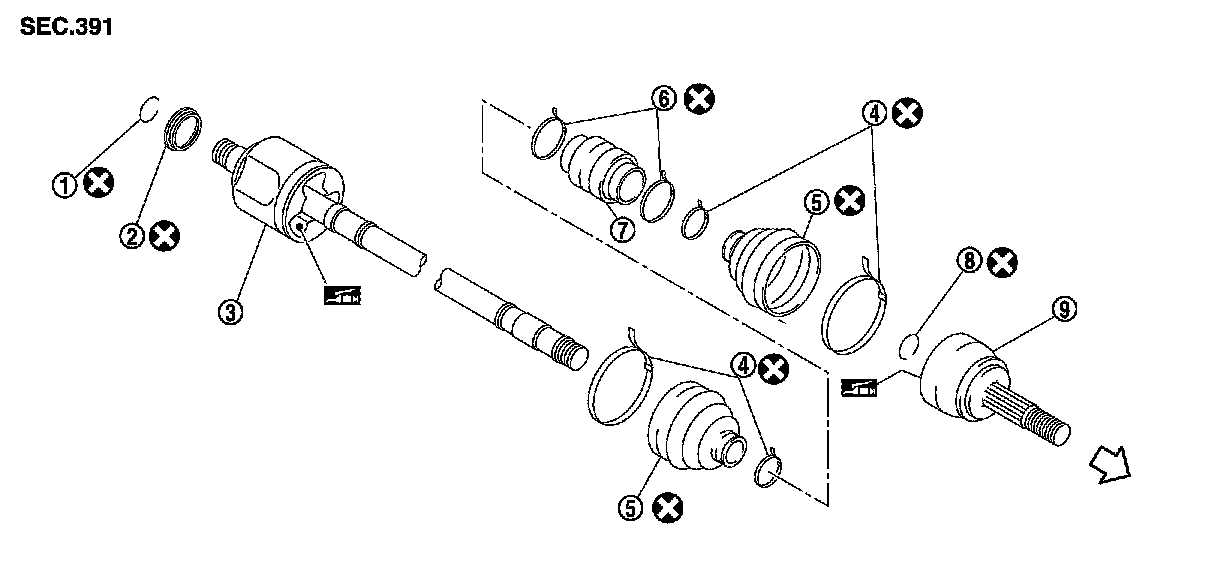

LEFT SIDE

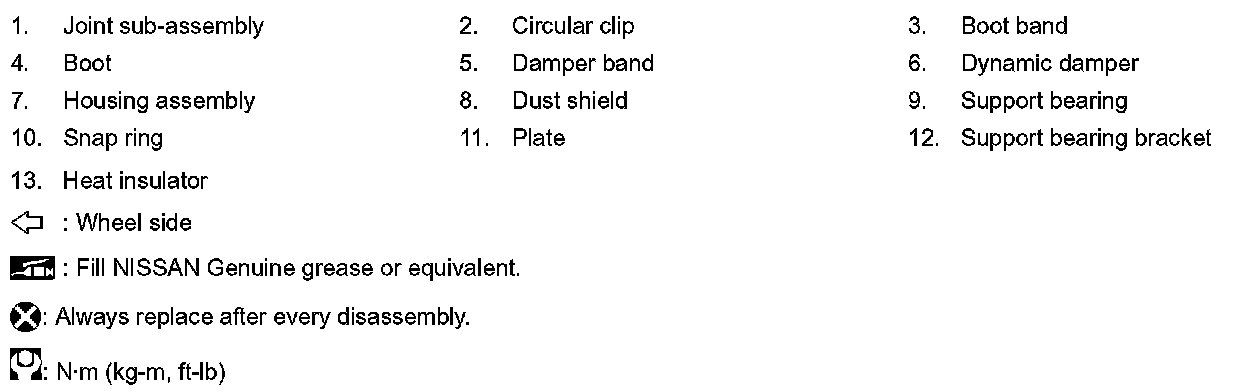

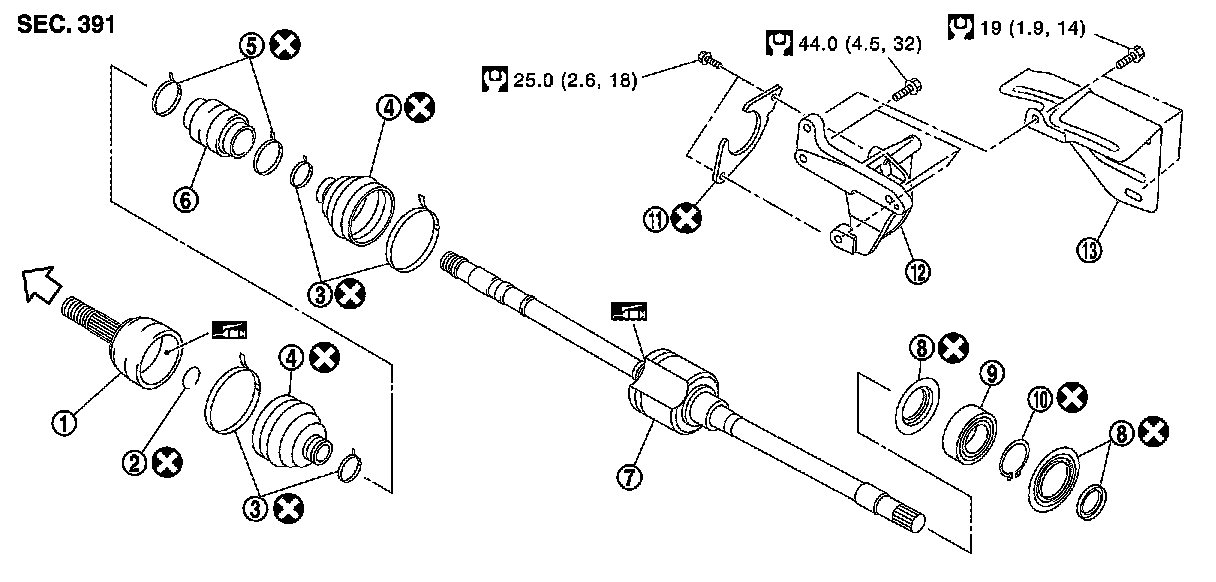

RIGHT SIDE

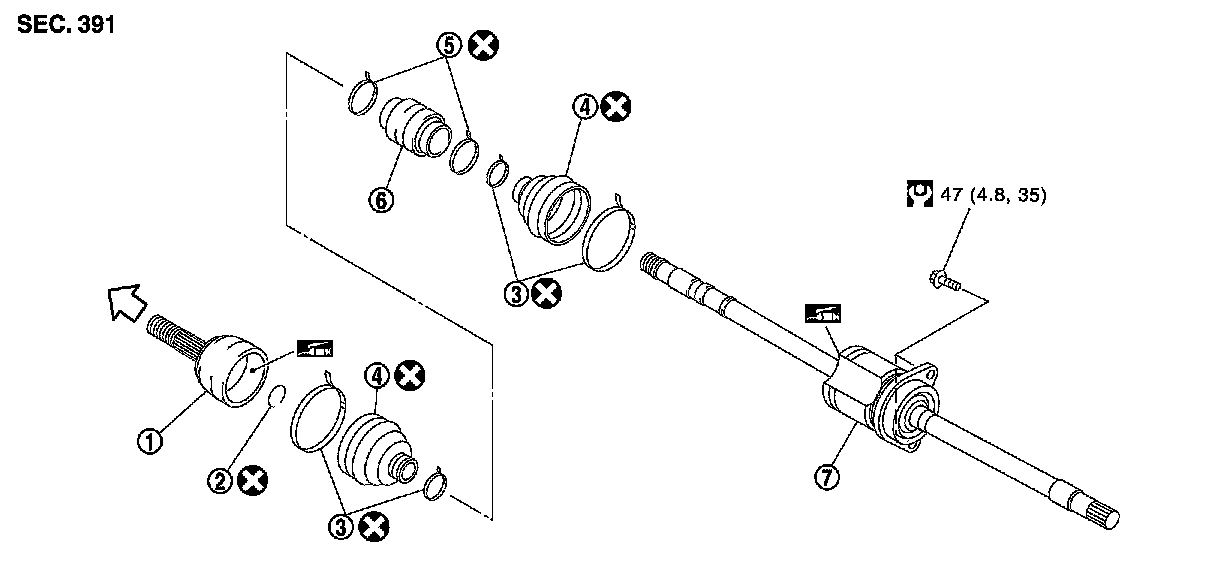

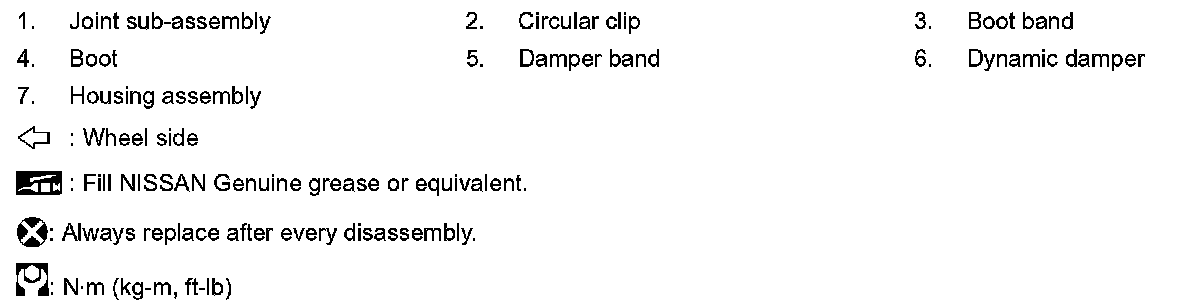

RIGHT SIDE FWD
RIGHT SIDE AWD
