Removal And Installation

ELECTRIC CONTROLLED COUPLING OIL SEAL

Removal and Installation


REMOVAL

1.Remove rear drive shafts. Removal And Installation.

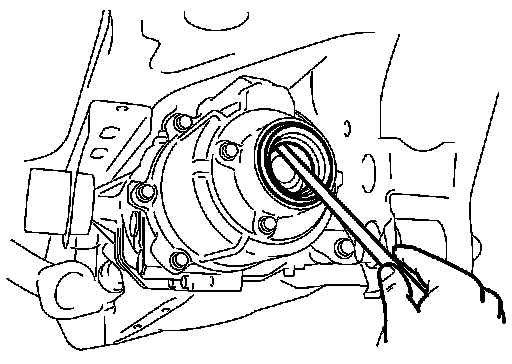

2.Remove electric controlled coupling oil seal from electric controlled coupling, using the suitable oil seal remover.

CAUTION:
Never damage electric controlled coupling.

INSTALLATION

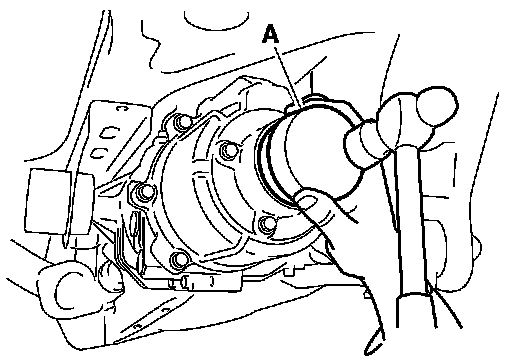

1.Using the drift (A) [SST: KV-38109700 (-)], install electric controlled coupling oil seal to electric controlled coupling to electric controlled coupling all the way until SST contact the end.
NOTE:
The use of SST satisfies the mounting dimensions.

CAUTION:
- Always use SST [KV-38109700 (-)].
- Never reuse oil seal.
- When installing, never incline oil seal.
- Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of oil seal.
2.Install rear drive shafts. Removal And Installation.

CAUTION:
Never damage electric controlled coupling oil seal.
