Electric Controlled Coupling
>>
Exploded View

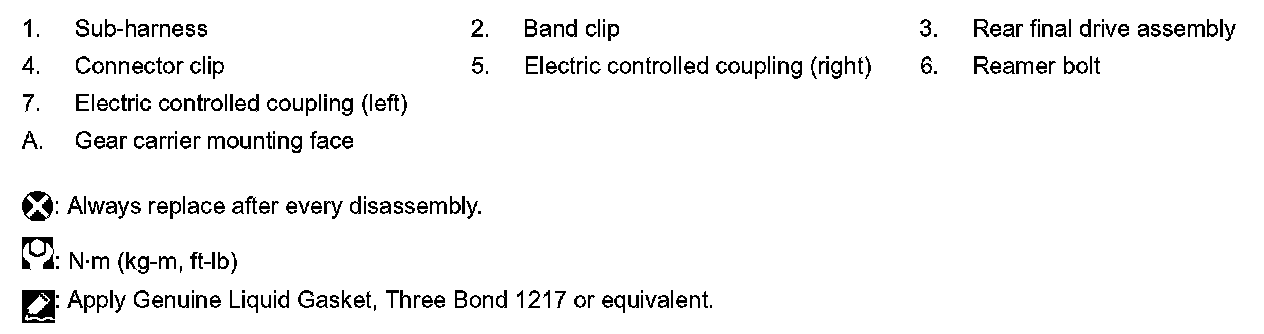

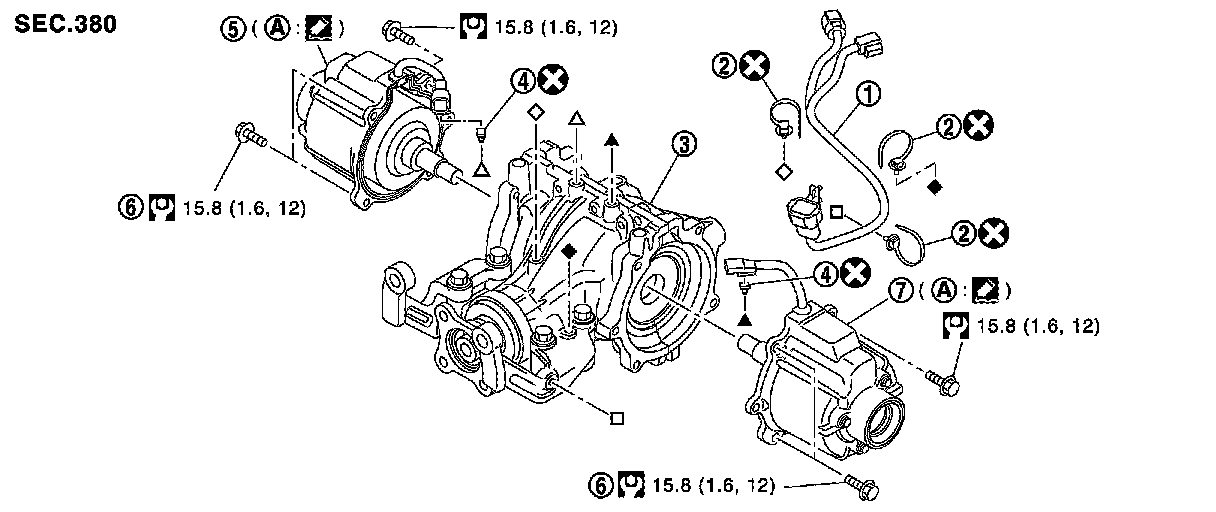

Exploded View
ELECTRIC CONTROLLED COUPLING

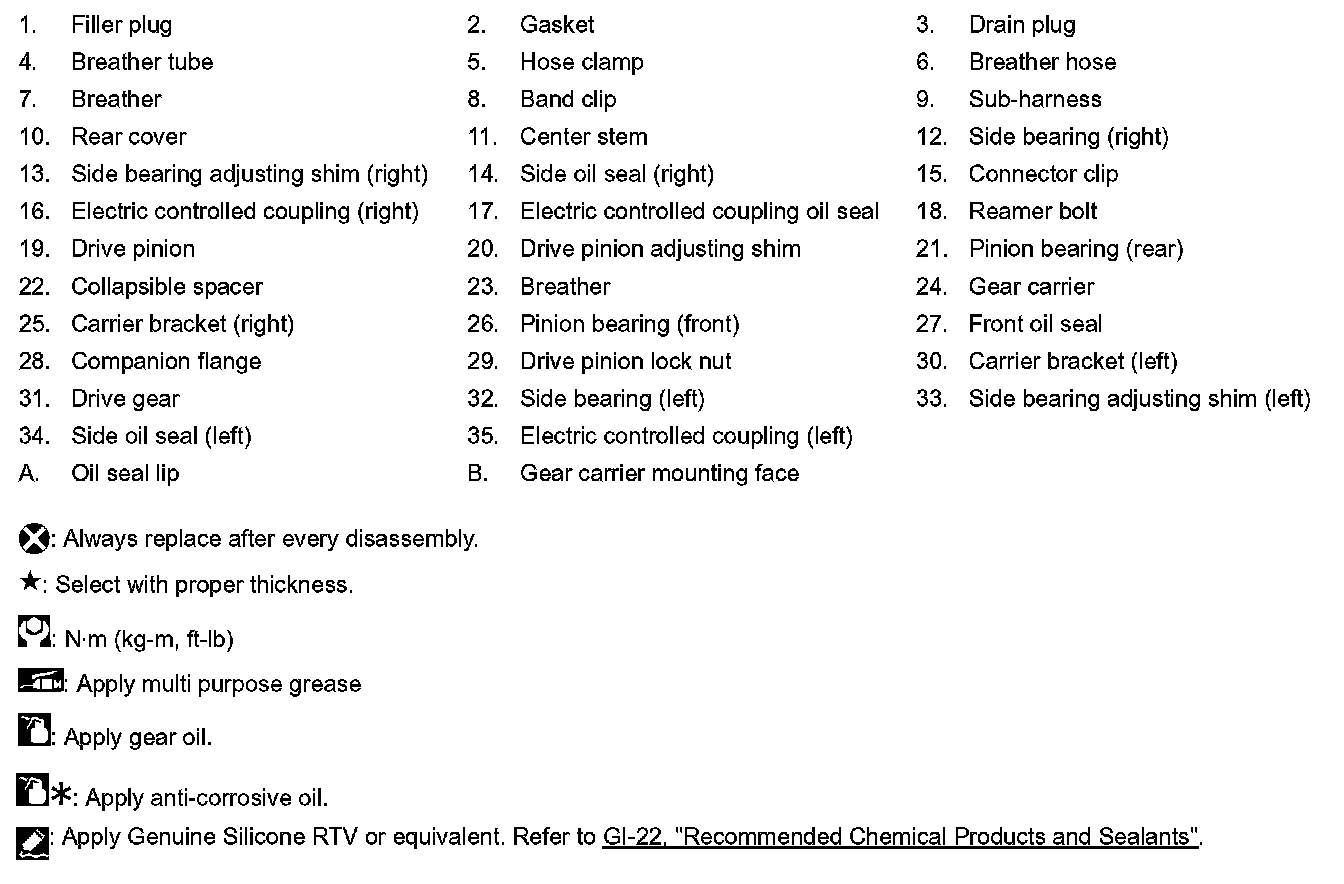

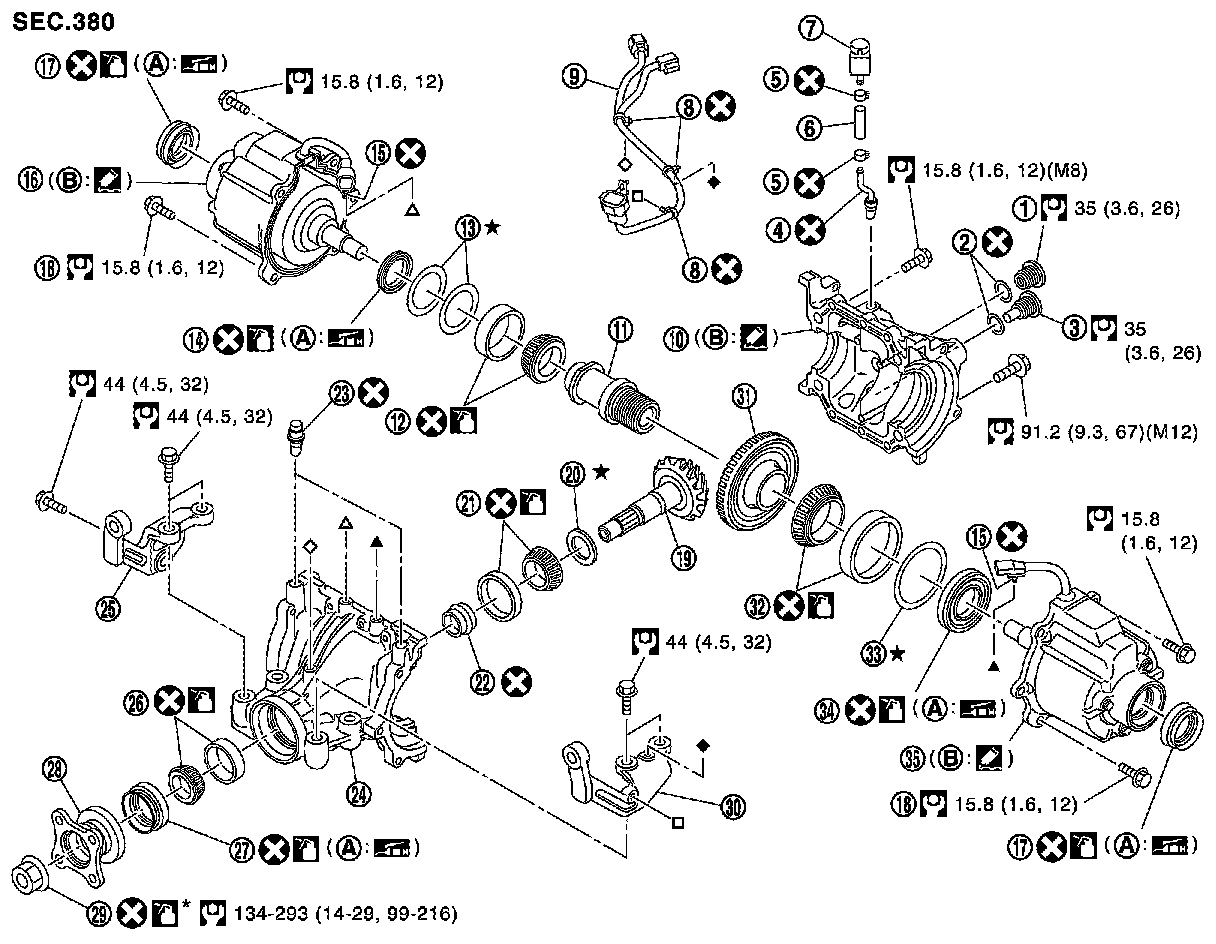

Exploded View
ELECTRIC CONTROLLED COUPLING
Exploded View
