Disassembly

ELECTRIC CONTROLLED COUPLING

Disassembly

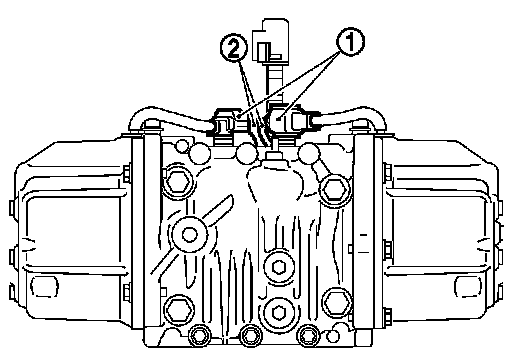

1.Disconnect electric controlled coupling connector (1) from subharness (2).

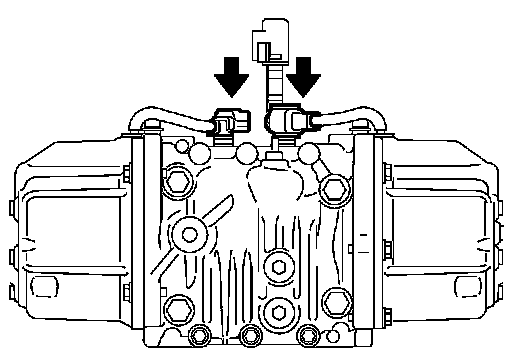

2.Remove electric controlled coupling connector from final drive assembly.





3.Remove electric controlled coupling from final drive assembly.

CAUTION:
Never damage side oil seal.
4.Remove sub-harness from final drive assembly.

CAUTION:
Remove sub-harness only when necessary.

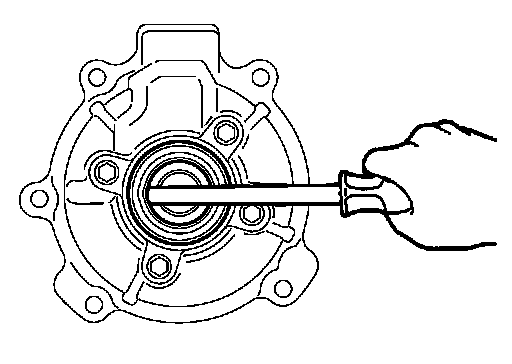

5.Remove electric controlled coupling oil seal from electric controlled coupling, using the suitable oil seal remover.

CAUTION:
Never damage electric controlled coupling.
