Draining

REAR DIFFERENTIAL GEAR OIL

Draining

1.Stop engine.

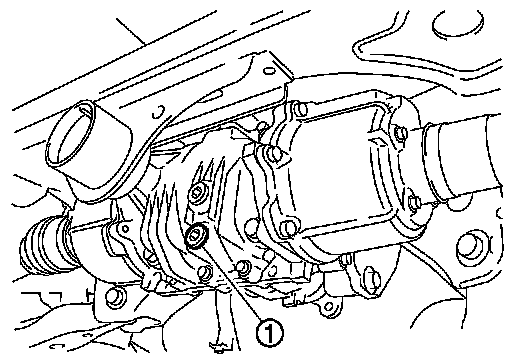

2.Remove drain plug (1) and drain gear oil.
3.Set a new gasket on drain plug and install it to final drive assembly and tighten to the specified torque. Exploded View.

CAUTION:
Never reuse gasket.
