Removal And Installation

SECONDARY SPEED SENSOR

Removal and Installation


REMOVAL

1.Remove air cleaner case. Removal And Installation.
2.Remove secondary speed sensor connector.

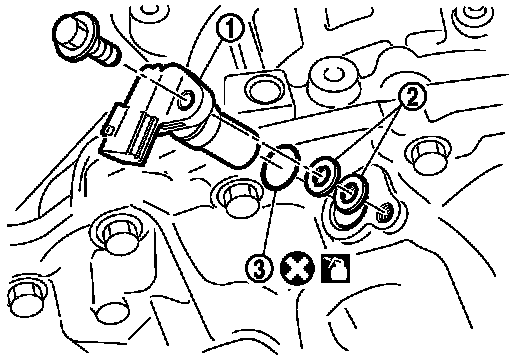

3.Remove secondary speed sensor (1) and shims (2).
4.Remove O-ring (3) from secondary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:
- Never reuse O-ring.
- Apply CVT fluid to O-ring.
- Install two pieces of shims.
