FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2012
>>
Juke AWD L4-1.6L Turbo (MR16DDT)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Specifications
>>
Mechanical Specifications
>>

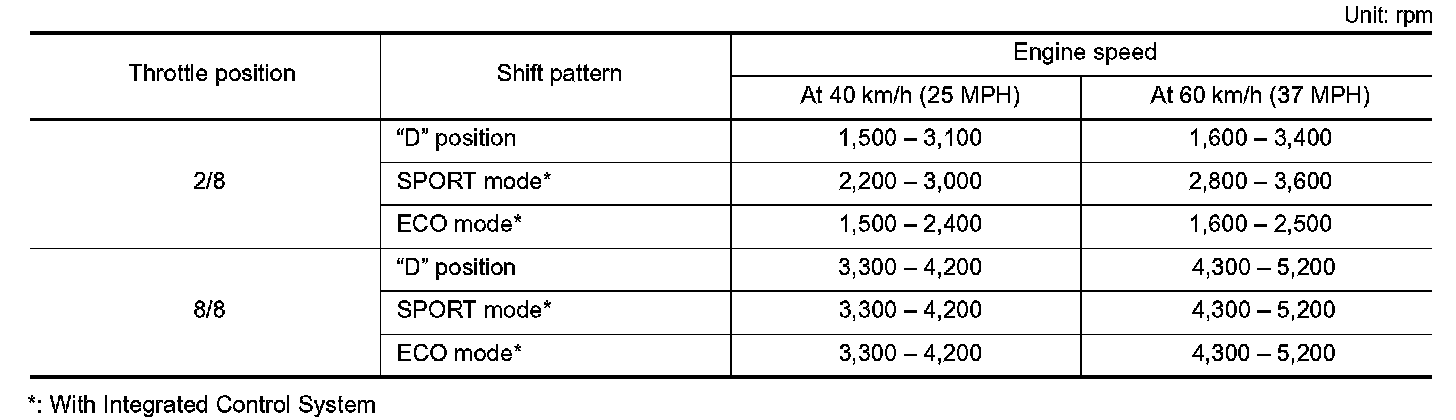

Shift Characteristics
Shift Characteristics
SERVICE DATA AND SPECIFICATIONS (SDS)
Shift Characteristics
Numerical value data are reference values.
Unit: rpm
