Removal And Installation Procedure For CVT Unit Connector

PRECAUTIONS

Removal and Installation Procedure for CVT Unit Connector


REMOVAL

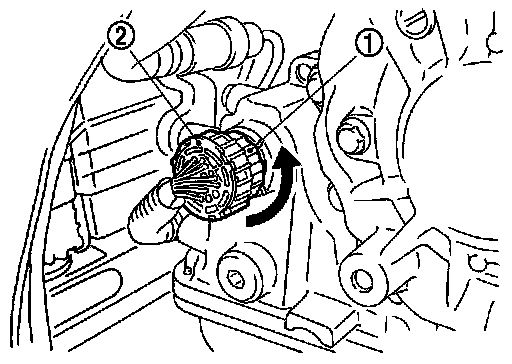

Rotate bayonet ring (1) counterclockwise, pull out CVT unit harness connector (2) upward and remove it.

INSTALLATION

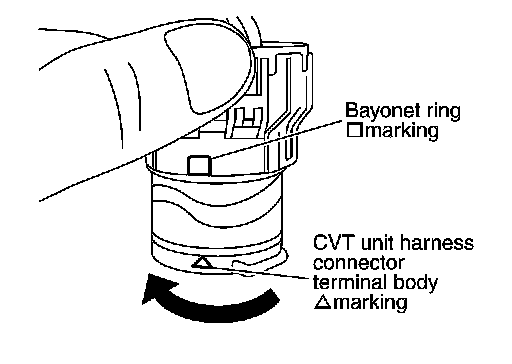

1.Align triangular marking on CVT unit harness connector terminal body with Square marking on bayonet ring, insert CVT unit harness connector, and then rotate bayonet ring clockwise.

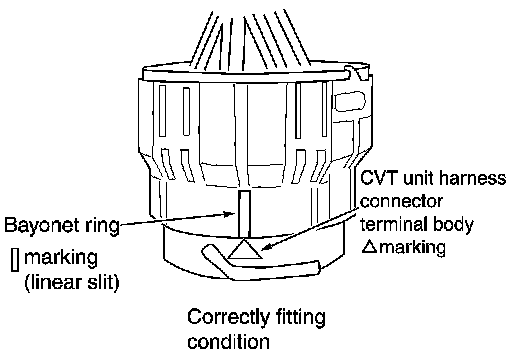

2.Rotate bayonet ring clockwise until triangular marking on CVT unit harness connector terminal body is aligned with the slit on bayonet ring as shown in the figure (correctly fitting condition), install
CVT unit harness connector to CVT unit harness connector terminal body.

CAUTION:

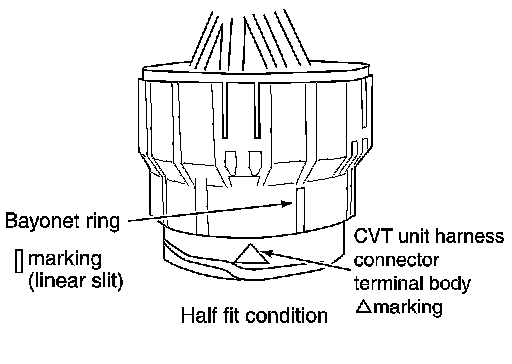

- Securely align triangular marking on CVT unit harness connector terminal body with bayonet ring slit. Then, be careful not to make a half fit condition as shown in the figure.
- Never mistake the slit of bayonet ring for other dent portion.
