Assembly

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

Assembly

Note the following, and install in the reverse order of removal.

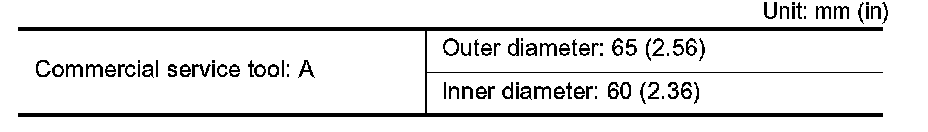

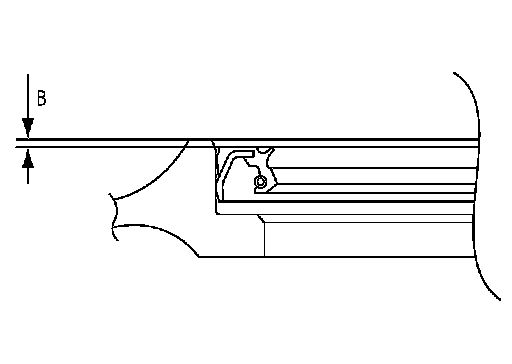

- Drive converter housing oil seal (1) evenly using a drift (A) (commercial service tool) so that converter housing oil seal protrudes by the dimension (B) respectively.
Unit: mm (in)

























NOTE:
Converter housing oil seal pulling direction is used as the reference.
- After completing installation, check for CVT fluid leakage and CVT
fluid level. Inspection.

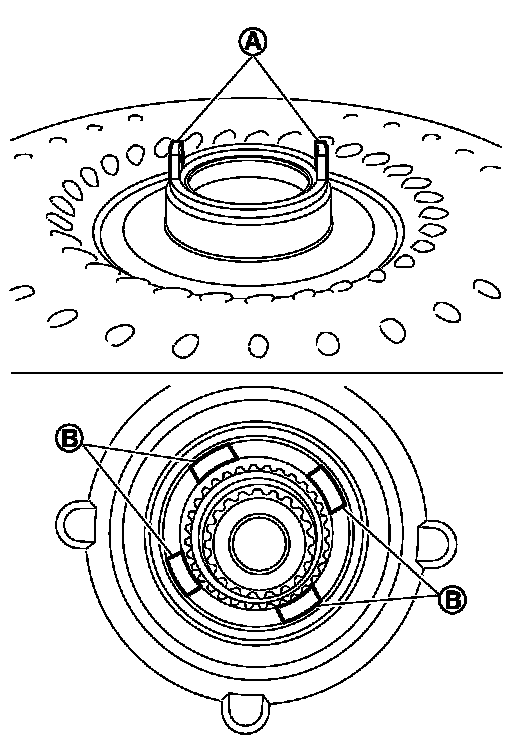

- Attach the pawl (A) of the torque converter to the drive sprocket hole (B) on the transaxle assembly side.

CAUTION:
- Rotate the torque converter for installing torque converter.
- Never damage the bushing inside the torque converter sleeve when installing the converter housing oil seal.
