Fluid Pan: Specifications

Temporarily tighten the oil pan mounting bolt.

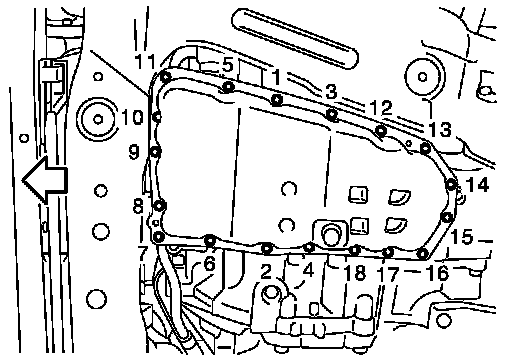

Tighten the oil pan mounting bolts in the order shown in the figure to the specified torque.

Tighten the oil pan mounting bolts again clockwise from (1) shown in the figure to the specified torque.
