CONSULT Function And System Application




CONSULT/GST CHECKING SYSTEM

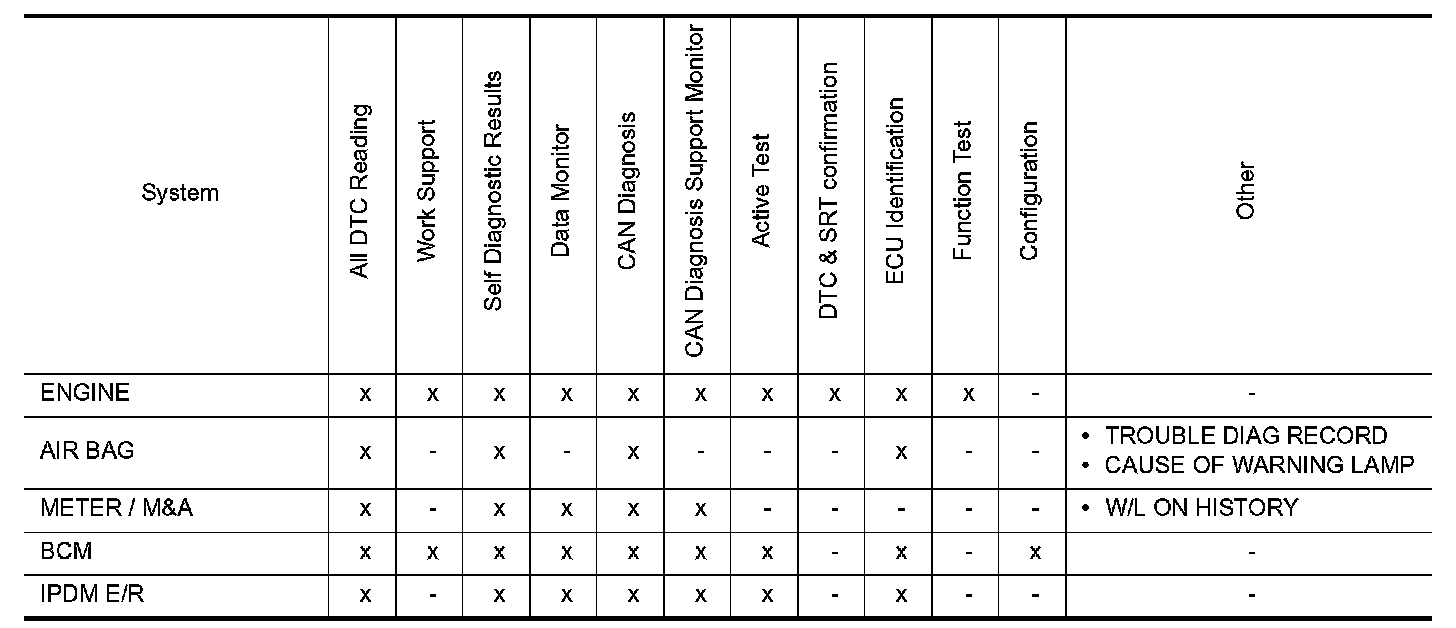

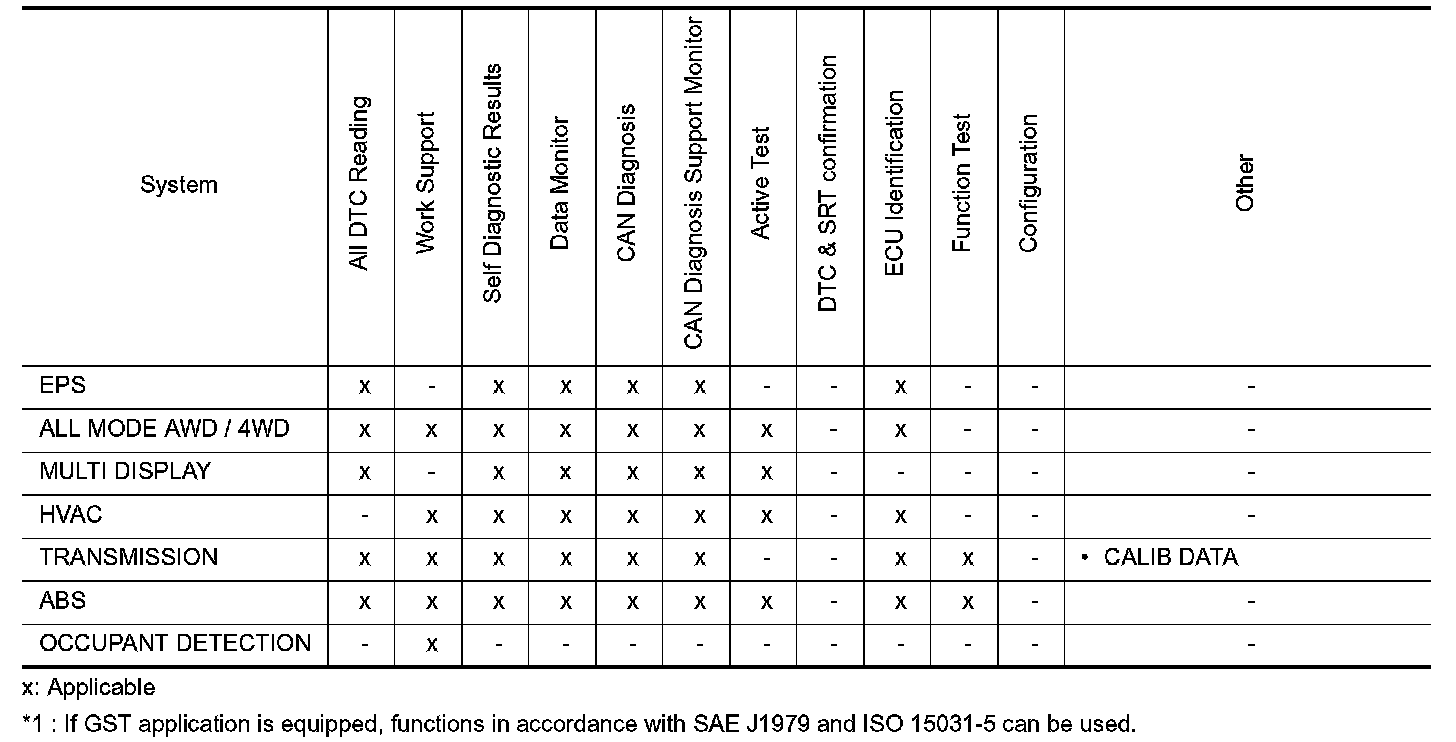

CONSULT Function and System Application*1


FUNCTION







SYSTEM APPLICATION
