Rear Axle Noise, Vibration And Harshness (NVH) Troubleshooting




NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

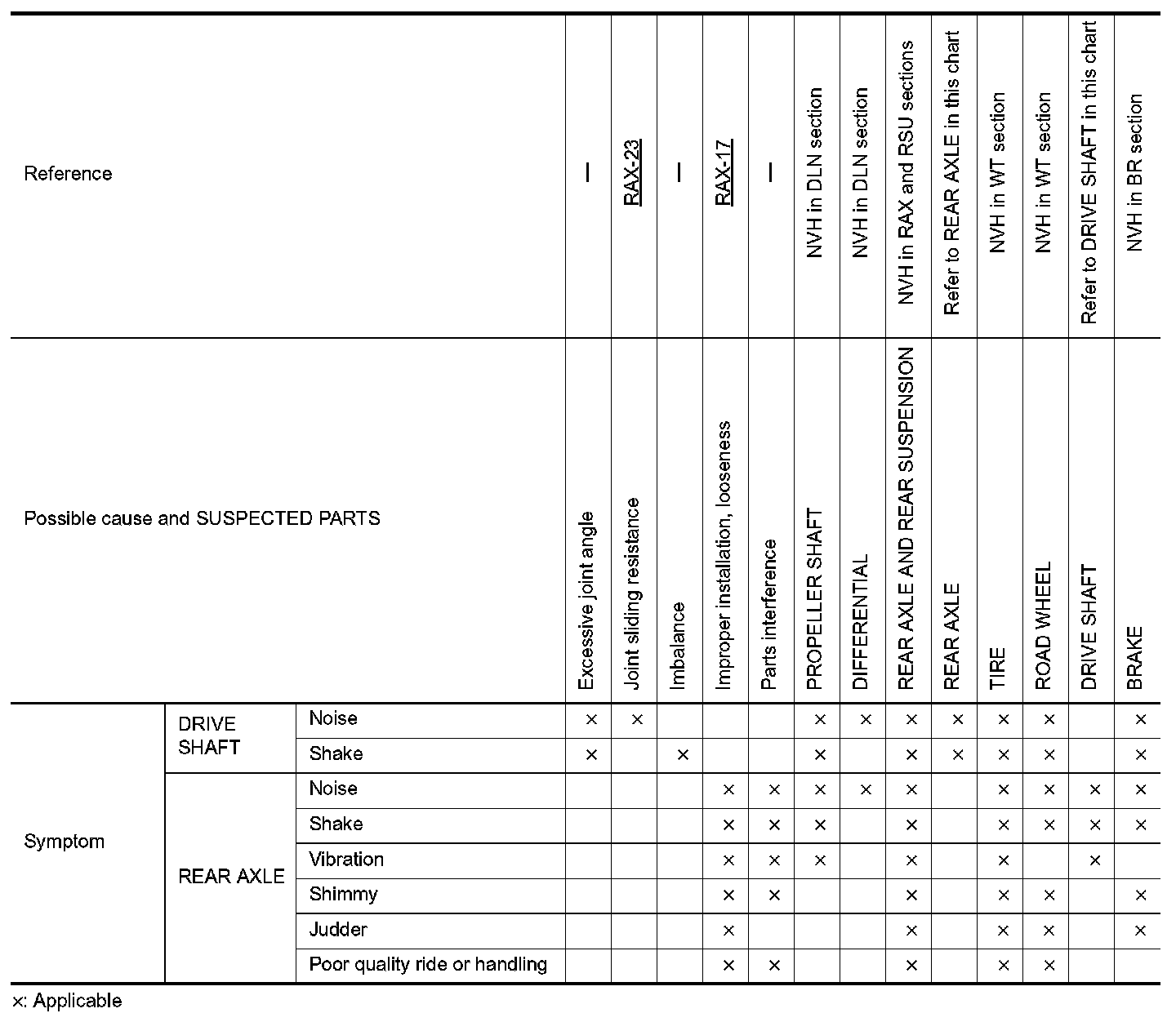

NVH Troubleshooting Chart

Use chart below you find the cause of the symptom. If necessary, repair or replace these parts.
