Removal And Installation

COIL SPRING

Removal and Installation


REMOVAL

1.Remove tires with power tool. Removal And Installation.
2.Remove wheel sensor and sensor harness. Removal And Installation.
3.Set jack under suspension arm.

CAUTION:
- Never damage the suspension arm with a jack.
- Check the stable condition when using a jack.
4.Separate rear shock absorber lower side form suspension arm. Removal And Installation.
5.Separate upper link from suspension arm.
6.Slowly lower jack, then remove upper rubber seat, coil spring and lower rubber seat from suspension arm.

CAUTION:
Operate while checking that jack supporting status is stable.
7.Perform inspection after removal. Inspection.

INSTALLATION

Note the following, and install in the reverse order of removal.

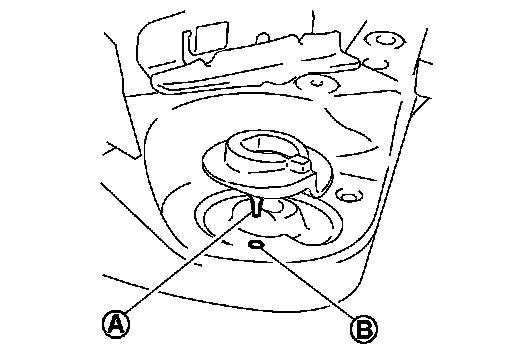

- Install the lower rubber seat a projection (A) is attached as suspension arm mounting hole (B).
- Match up lower rubber seat indentions and suspension arm grooves and attach.
- Perform inspection after installation. Inspection.
