Pinout Values and Diagnostic Parameters

EPS CONTROL UNIT

Reference Value


VALUES ON THE DIAGNOSIS TOOL


CAUTION:
The output signal indicates the EPS control unit calculation data. The normal values will be displayed even in the event that the output circuit (harness) is open.





*1: Almost in accordance with the value of "MOTOR SIG". It is not a malfunction though these values are not accorded when steering quickly.
*2: Normally displays 100%. In case of an excessive stationary steering, the assist curvature gradually falls.
However, it returns to 100% when left standing.
*3: It is not a malfunction, though it might not be corresponding just after ignition switch in turned ON.
*4: Displays NORMAL in models without Integrated Control System.

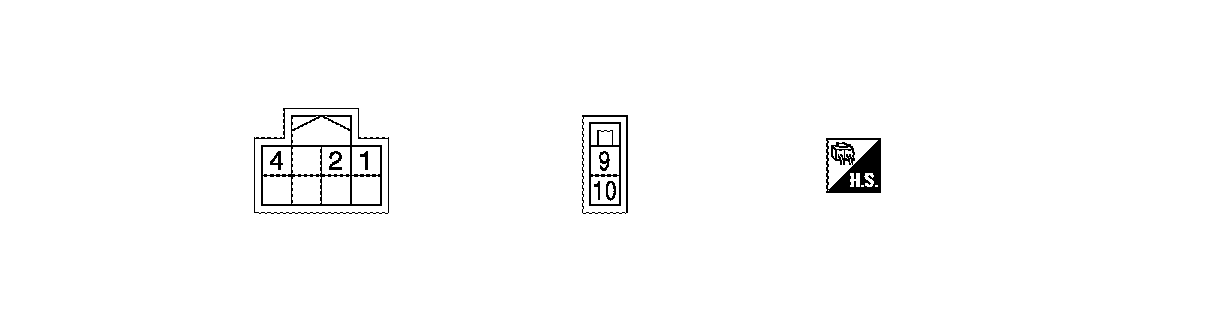

TERMINAL LAYOUT

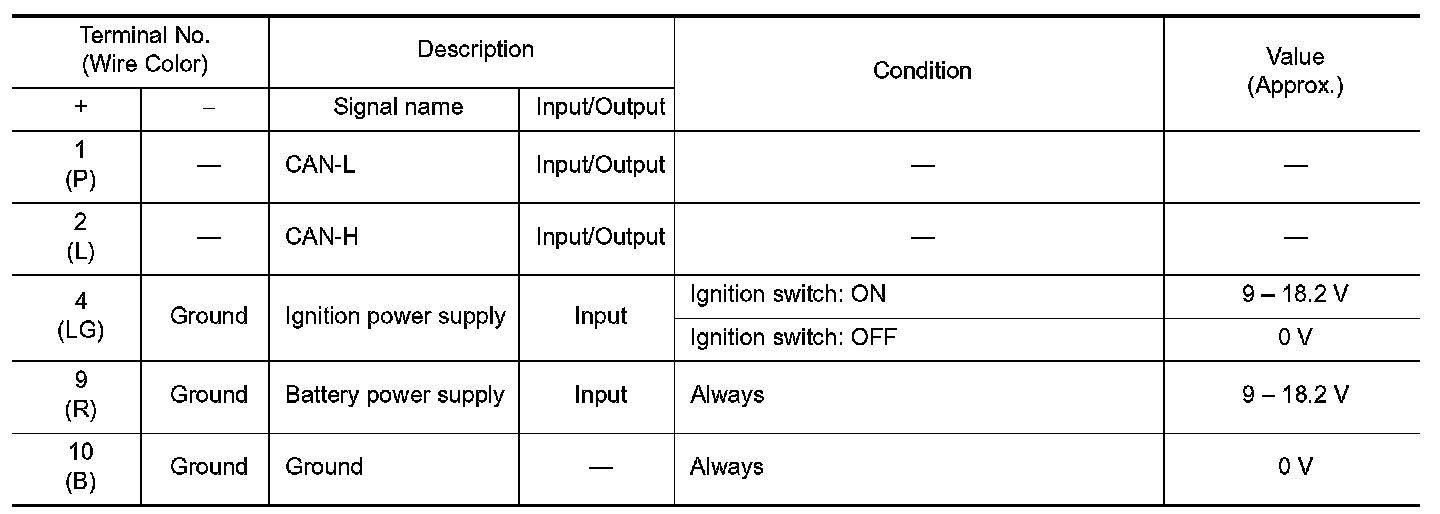

PHYSICAL VALUES
