Neutral Position Steering Wheel

STEERING WHEEL

Inspection


NEUTRAL POSITION STEERING WHEEL

1.Make sure that steering gear assembly, steering column assembly and steering wheel are installed in the correct position.
2.Perform neutral position inspection after wheel alignment. Wheel Alignment Inspection.
3.Set vehicle to the straight-ahead position and confirm steering wheel is in the neutral position.
4.Loosen outer socket lock nut and turn inner socket to left and right equally to make fine adjustments if steering wheel is not in the neutral position.

STEERING WHEEL TURNING FORCE

1.Park vehicle on a level and dry surface, set parking brake.
2.Tires need to be inflated normal pressure. [1][2]Specifications.
3.Start engine.

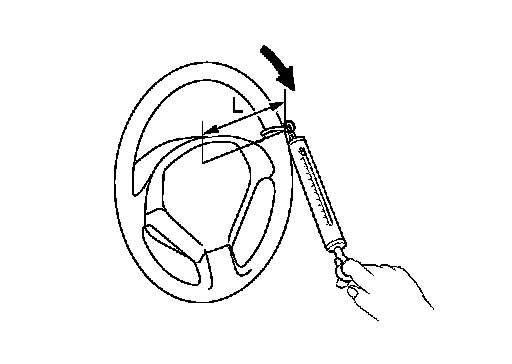

4.Check steering wheel turning force when steering wheel has been turned 360� from neutral position.

Steering wheel turning force : Refer to, "Steering Wheel".

L: 185 mm (7.28 in)

NOTE:
Multiply the distance from the hook of spring balance to the center of steering wheel by the measurement value with a spring balance.

FRONT WHEEL TURNING ANGLE

1.Check front wheel turning angle after toe-in inspection. Wheel Alignment Inspection.

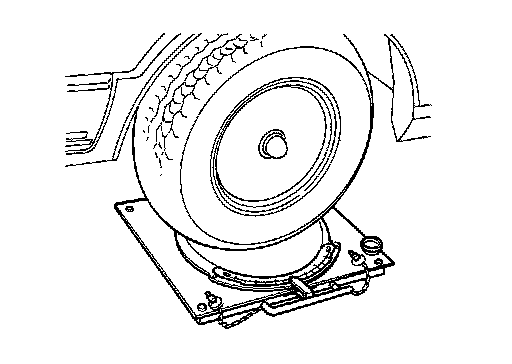

2.Place front wheels on turning radius gauges and rear wheels on stands, so that vehicle can be level.
3.Check the maximum inner and outer wheel turning angles for LH
and RH road wheels.





4.With the engine at idle, turn steering wheel from full left stop to full right stop and measure the turning angles.

Inner wheel (Angle: A): Steering Angle.
Outer wheel (Angle: B): Steering Angle.





5.Check the following items when turning angle is out of the standard.

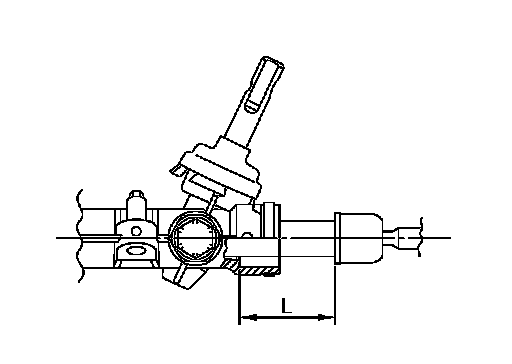

a.Check rack stroke (L).

Rack stroke neutral position (L): Refer to, "Steering Gear and Linkage".

b.If rack stroke is out of specification, replace steering gear assembly.
- Steering angles are not adjustable. Check steering gear assembly, steering column assembly, and front suspension components for wear or damage if any of the turning angles are different from the specified value.
Replace any of them, if any non-standard condition exists.
