Removal And Installation

STEERING COLUMN

Removal and Installation


REMOVAL


CAUTION:
- While removing the steering column assembly, never unlock the tilt lever.
- Never impact on the axis when removing steering column assembly.
- Be careful when removing steering column assembly from the vehicle because it is heavy.
- Keep steering column assembly away from magnetic sources.
- Never disassemble steering column assembly. It is not separable.
- While removing the steering column assembly, never move the steering gear.
- When removing the steering column assembly, be careful not to allow the intermediate shaft to turn.
1.Set vehicle to the straight-ahead position.
2.Place the tilt to the lowest level.
3.Remove instrument lower panel. Removal And Installation.
4.Remove driver air bag module. Removal And Installation.
5.Remove steering wheel. Removal And Installation.
6.Remove steering column cover. Removal And Installation.
7.Remove spiral cable. Removal And Installation.
8.Remove combination switch.
- Without intelligent key system: Without Intelligent Key System.
- With intelligent key system: With Intelligent Key System.
9.Disconnect each switch harness connectors installed to steering column assembly.
10.Remove intermediate shaft mounting bolt (steering column side), and separate intermediate shaft from steering column assembly. Removal And Installation.

CAUTION:
- Place a matching mark on both intermediate shaft and steering column assembly before removing intermediate shaft.
- When removing intermediate shaft, never insert a tool, such as a screwdriver, into the yoke groove to pull out the intermediate shaft. In case of the violation of the above, replace intermediate shaft with a new one.
11.Disconnect EPS control unit connectors.
12.Remove steering column assembly.

CAUTION:
When removing the mounting, be careful not to drop the steering column assembly.
13.Remove slide plate (outer and inner) from steering column assembly.
14.Remove cover, sub-harness, band, and bracket from steering column assembly.

CAUTION:
Remove cover, sub-harness, band, and bracket only when necessary.
15.Perform inspection after removal. Procedures.

INSTALLATION


CAUTION:
- Never impact on the axis when removing steering column assembly.
- When installing the steering column cover, check that the vehicle harness is not stuck in the cover.
Note the following, and install in the reverse order of removal.





- After tightening mounting nut (A) of the steering column assembly, press in slide plate (outer and inner) (1) to tighten mounting nut (B).

CAUTION:
The slide plate must be securely pressed in before tightening the nut of slide plate (outer, inner).
- For intermediate shaft mounting bolt direction, Exploded View. (Do not insert it from the other side.)

CAUTION:
Never reuse intermediate shaft mounting bolt.

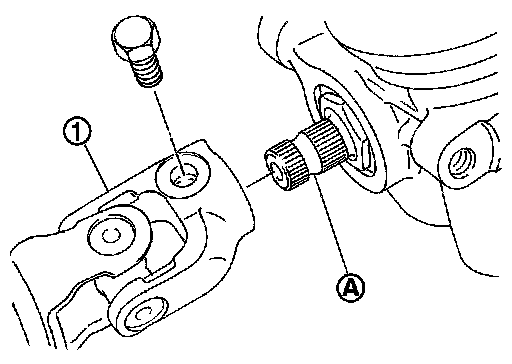

- When connecting intermediate shaft upper side (1) and column shaft, make sure the bolt is securely seated in groove (A) of column shaft (A) before final tightening.
- After installing steering column assembly, perform self-diagnosis with CONSULT to ensure correct operation. Scan Tool Testing and Procedures.
- Never reuse band.
- Perform inspection after installation. Procedures.
