Home >> Nissan-Datsun >> 2012 >> Juke AWD L4-1.6L Turbo (MR16DDT) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Specifications >> Steering Gear And Linkage

Steering Gear And Linkage

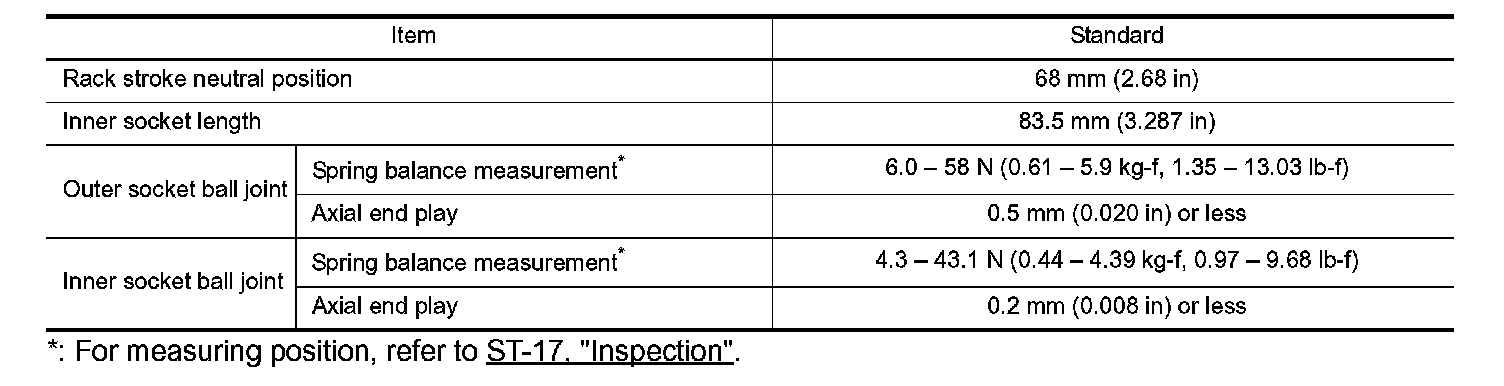

SERVICE DATA AND SPECIFICATIONS (SDS)

Steering Gear and Linkage






*: For measuring position, Inspection.
