Home >> Nissan-Datsun >> 2012 >> Juke AWD L4-1.6L Turbo (MR16DDT) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Power Steering >> Power Steering Motor >> Locations

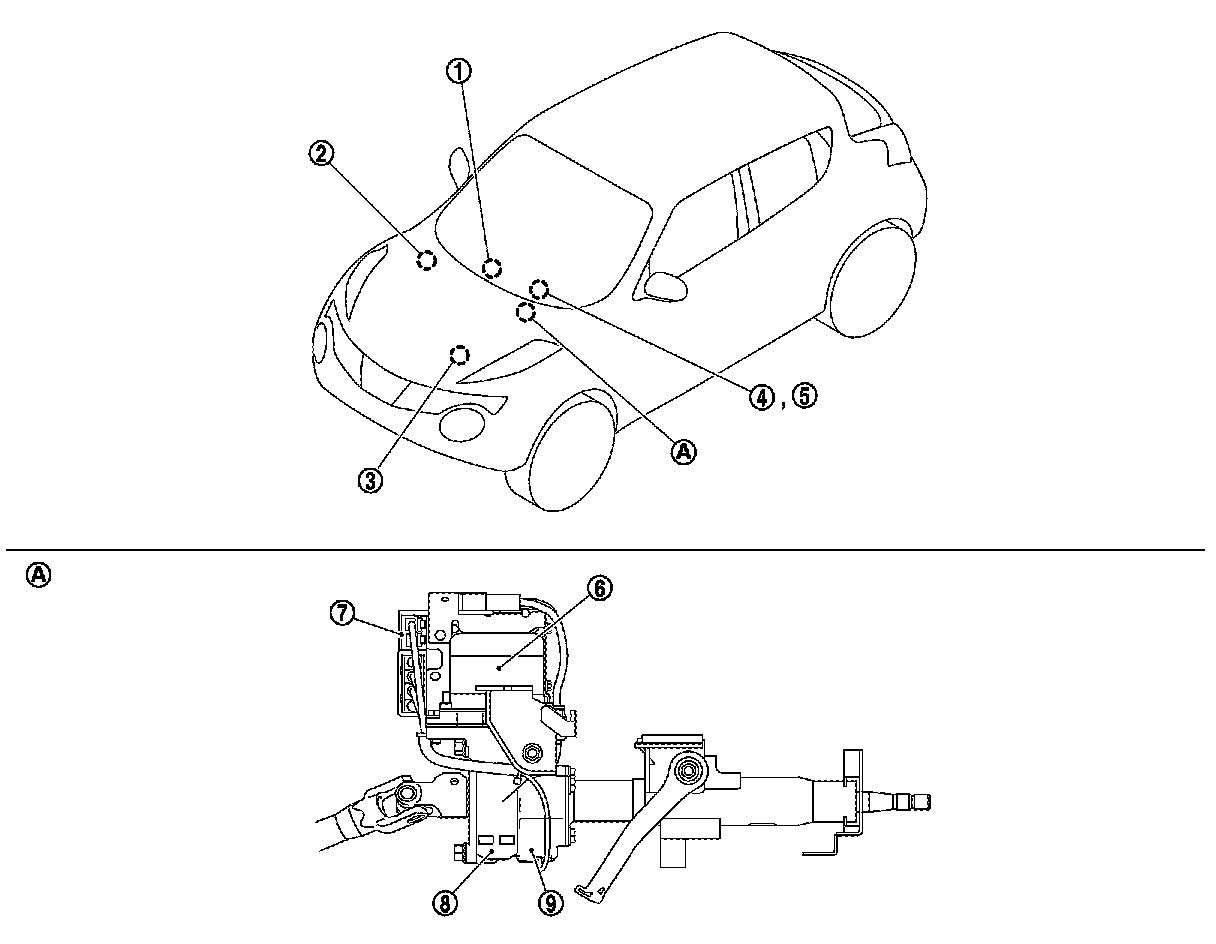

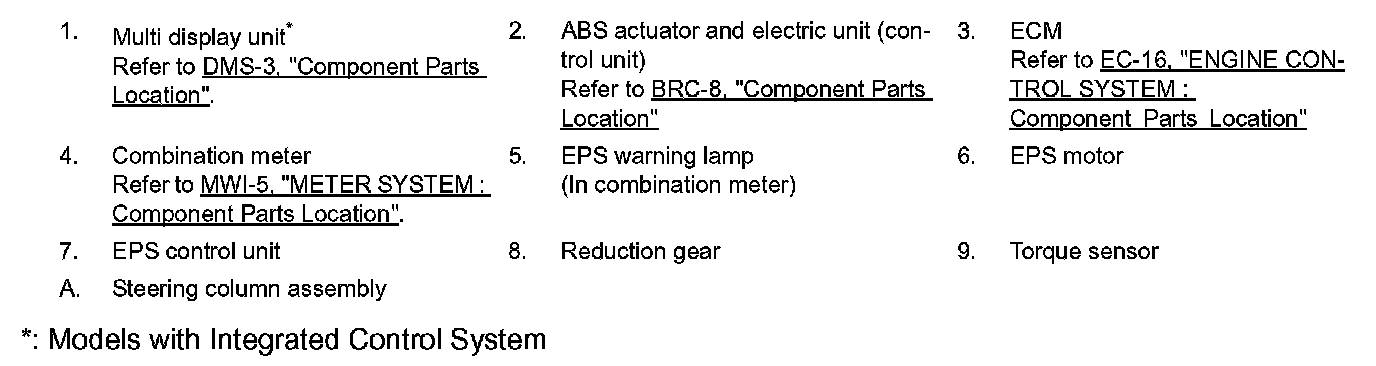

Power Steering Motor: Locations
