Exploded View




STARTER MOTOR

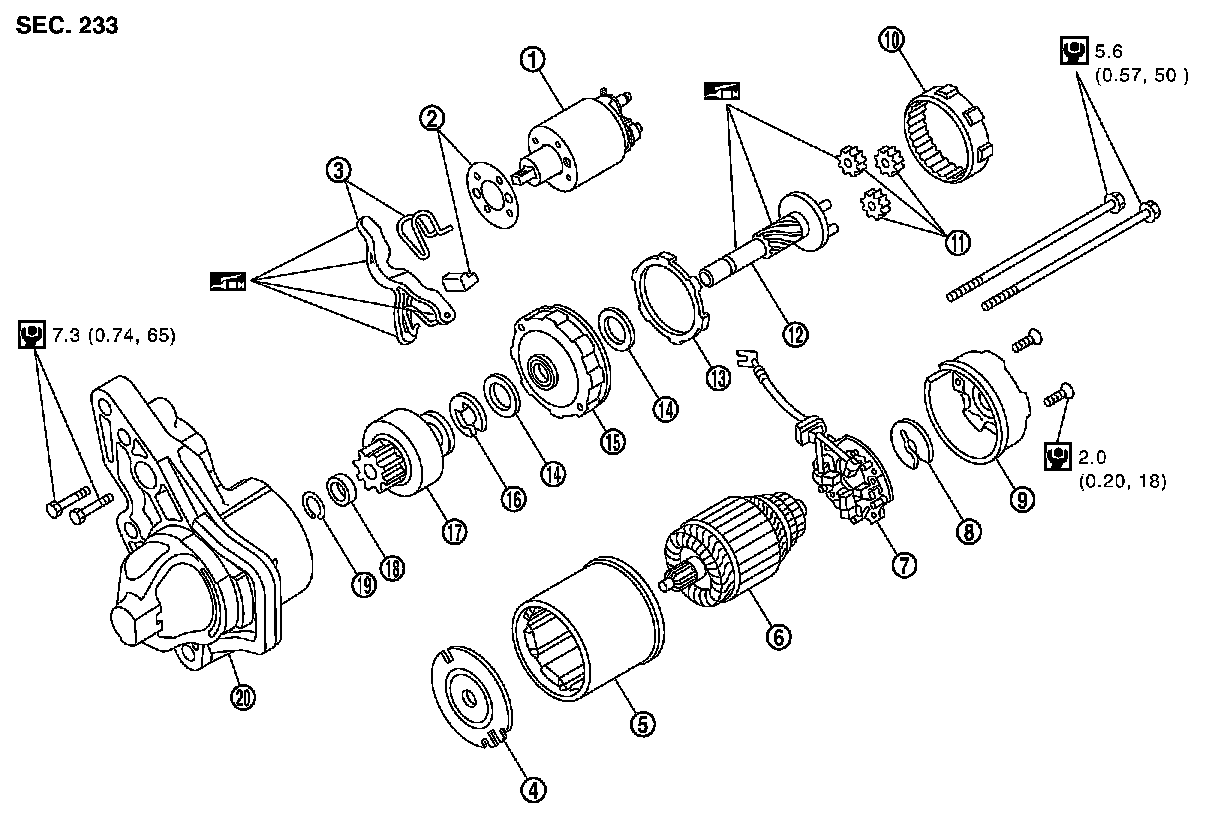

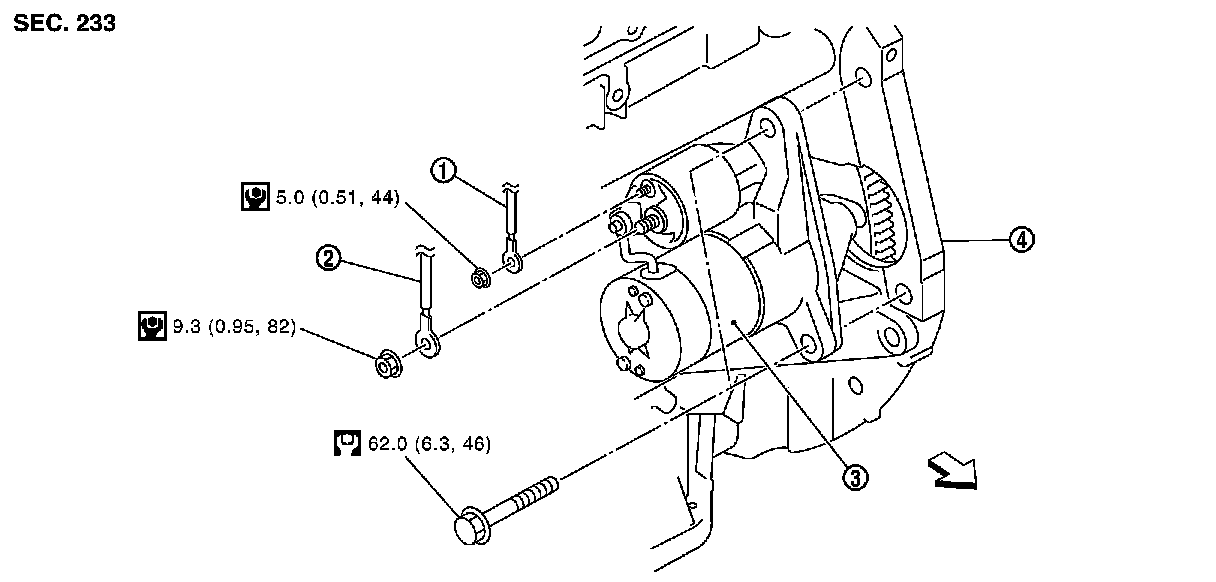

Exploded View


REMOVAL












DISASSEMBLY











NOTE:
Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
