Start / Stop Switch: Service and Repair

PUSH-BUTTON IGNITION SWITCH

Removal and Installation


REMOVAL

1.Remove the NATS antenna amp. Removal And Installation.
2.Remove the push-button ignition switch.

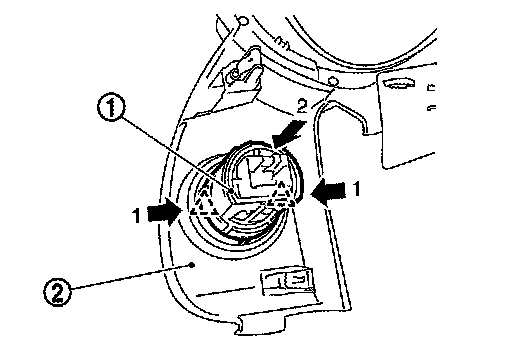

1.Disengage the push-button ignition switch (1) fixing pawls using remover tool.
2.Press the push-button ignition switch to remove it from cluster lid A (2).

Broken Triangle indicates : Pawl

INSTALLATION

Install in the reverse order of removal.
