Accessory Power Supply Fuse No.19

POWER SUPPLY ROUTING CIRCUIT

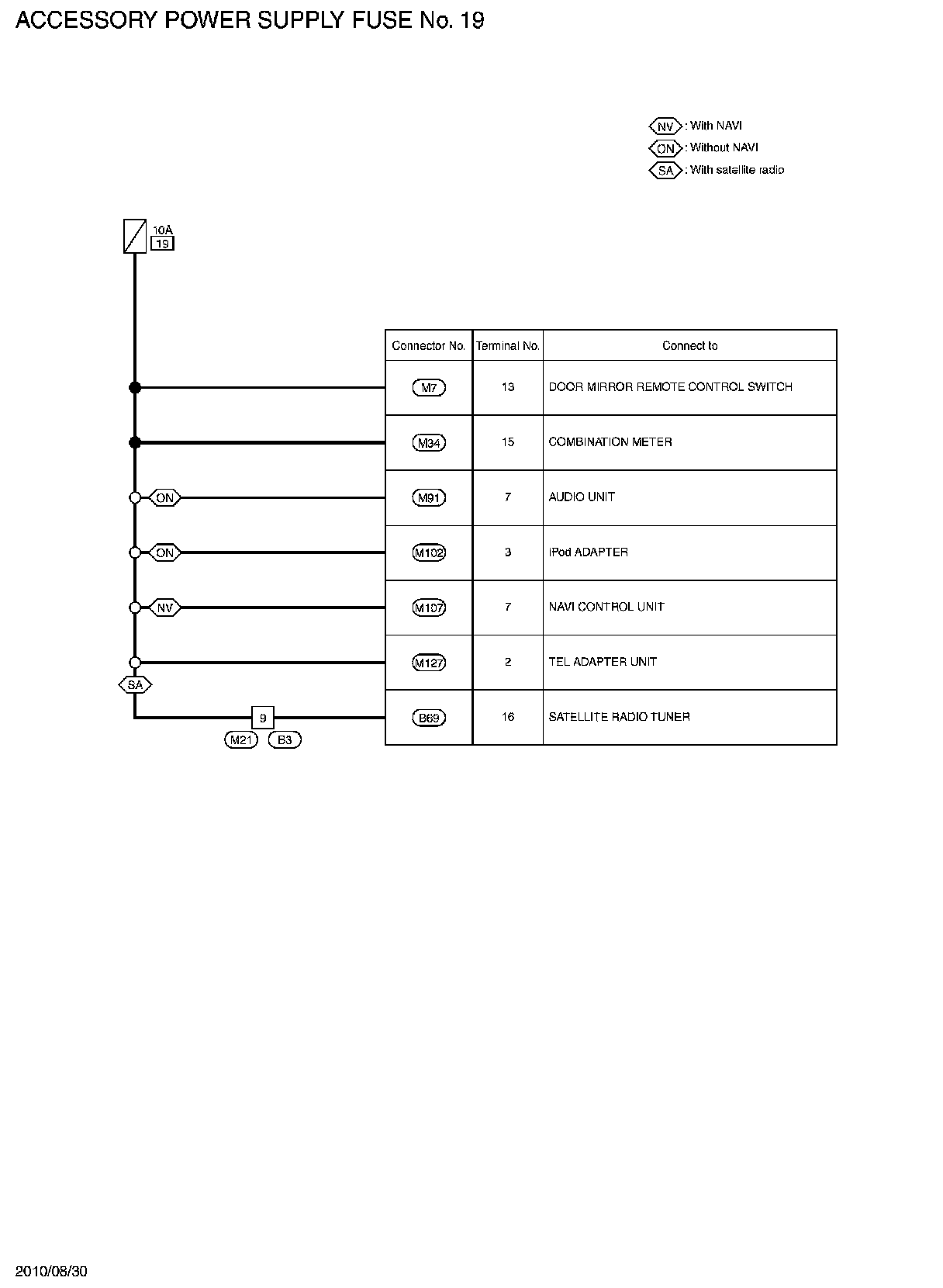

Wiring Diagram - ACCESSORY POWER SUPPLY FUSE No.19

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
