Removal And Installation

POWER SOCKET

Removal and Installation


REMOVAL

1.Remove cluster tray. Removal And Installation.

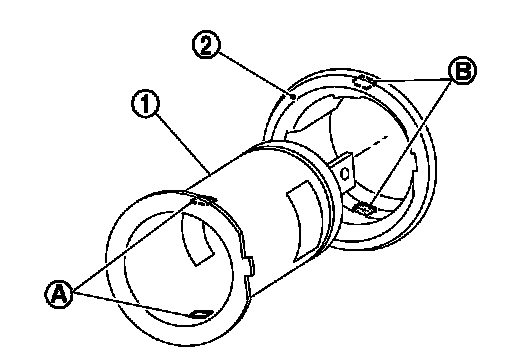

2.Pull out inner socket (1) by pushing the pawl (B) of the ring (2)
from the inner socket hole (square) (A).

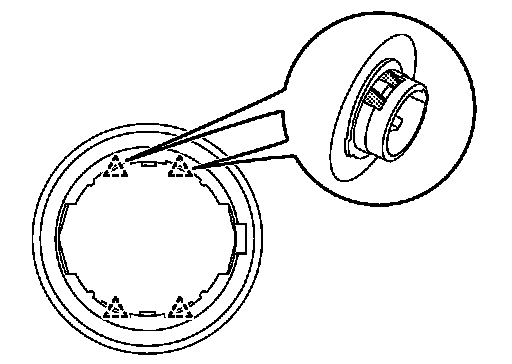

3.Press the ring pawl from the back of the cluster tray to remove the ring.

Broken triangle indicates : Pawl

INSTALLATION

Note the following, and install in the reverse order of removal.

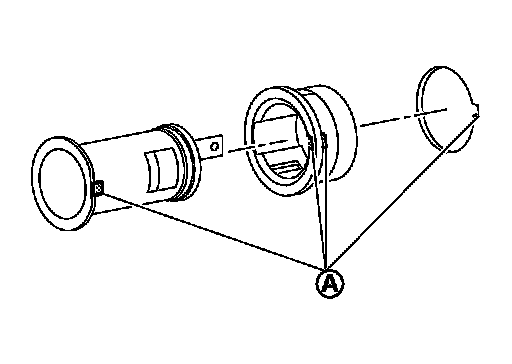

Align the cut outs of inner socket, ring and cluster tray.
