Cylinder Head




SERVICE DATA AND SPECIFICATIONS (SDS)

Cylinder Head

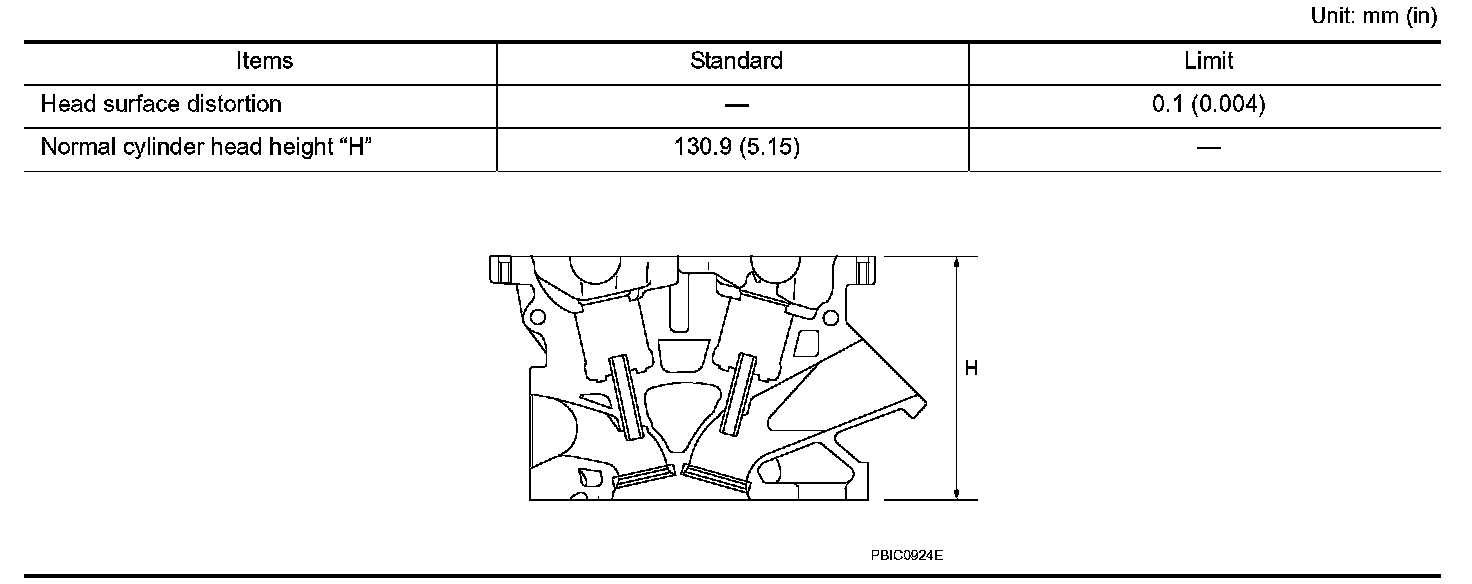

CYLINDER HEAD

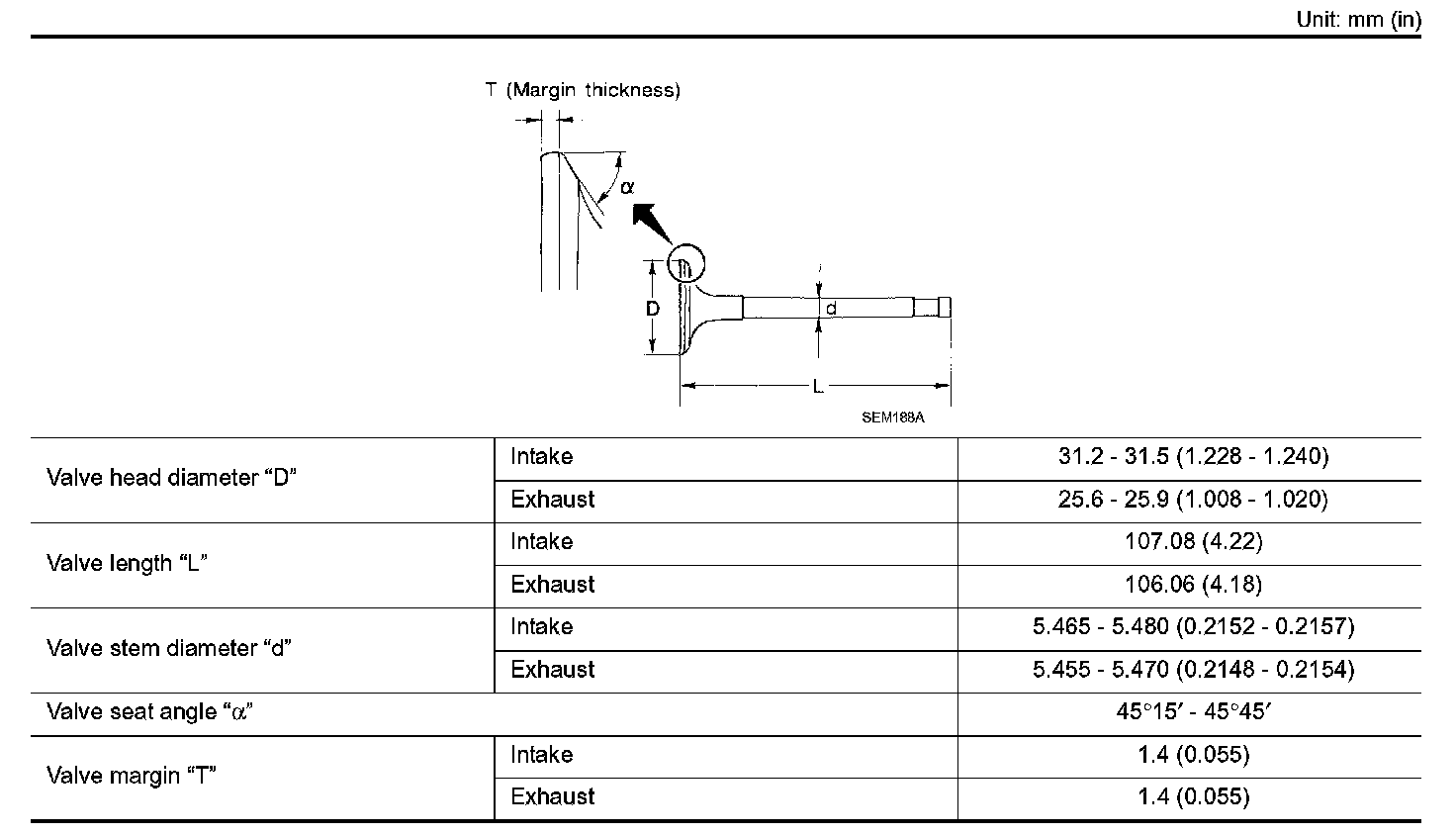

VALVE DIMENSIONS

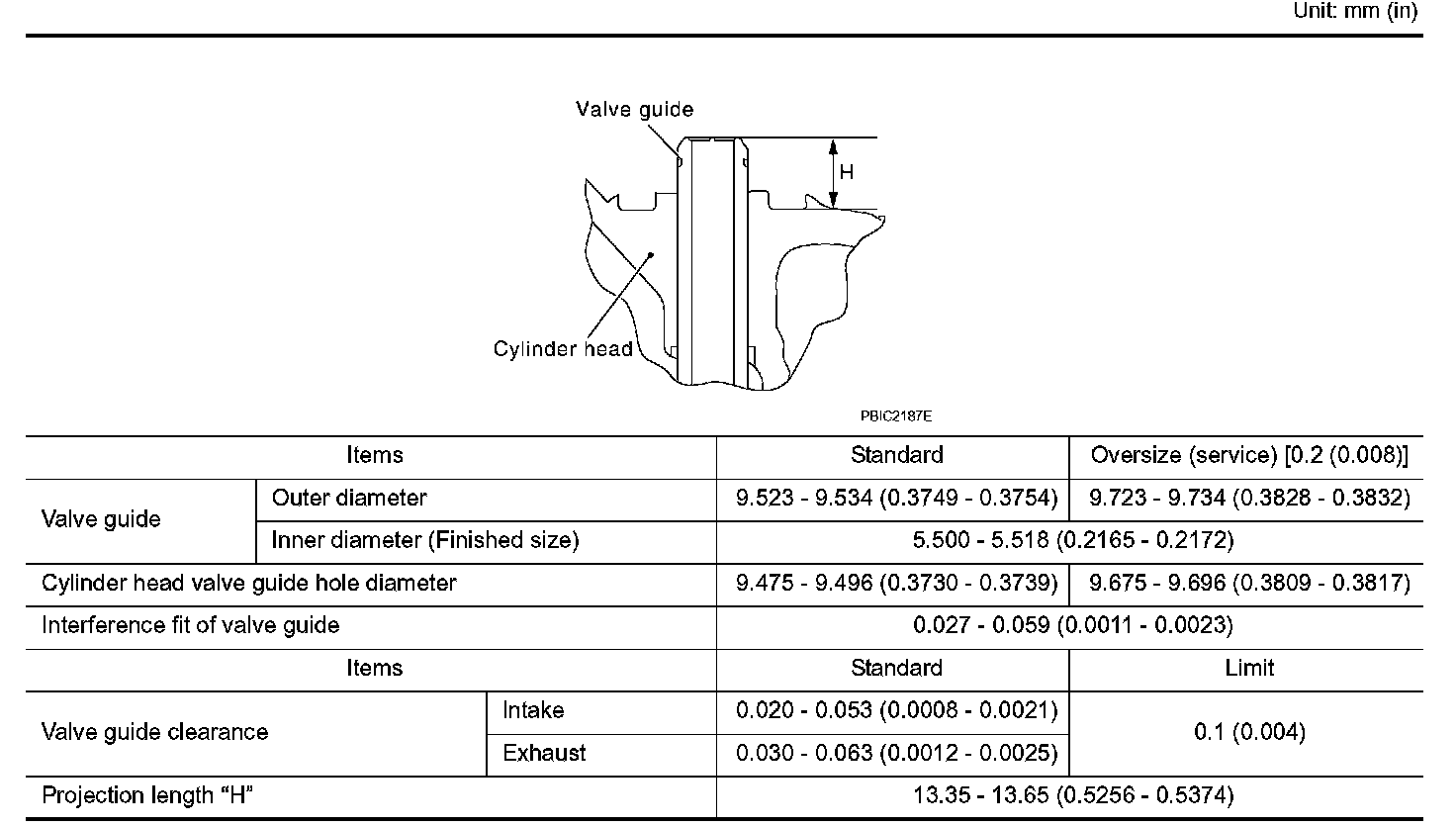

VALVE GUIDE

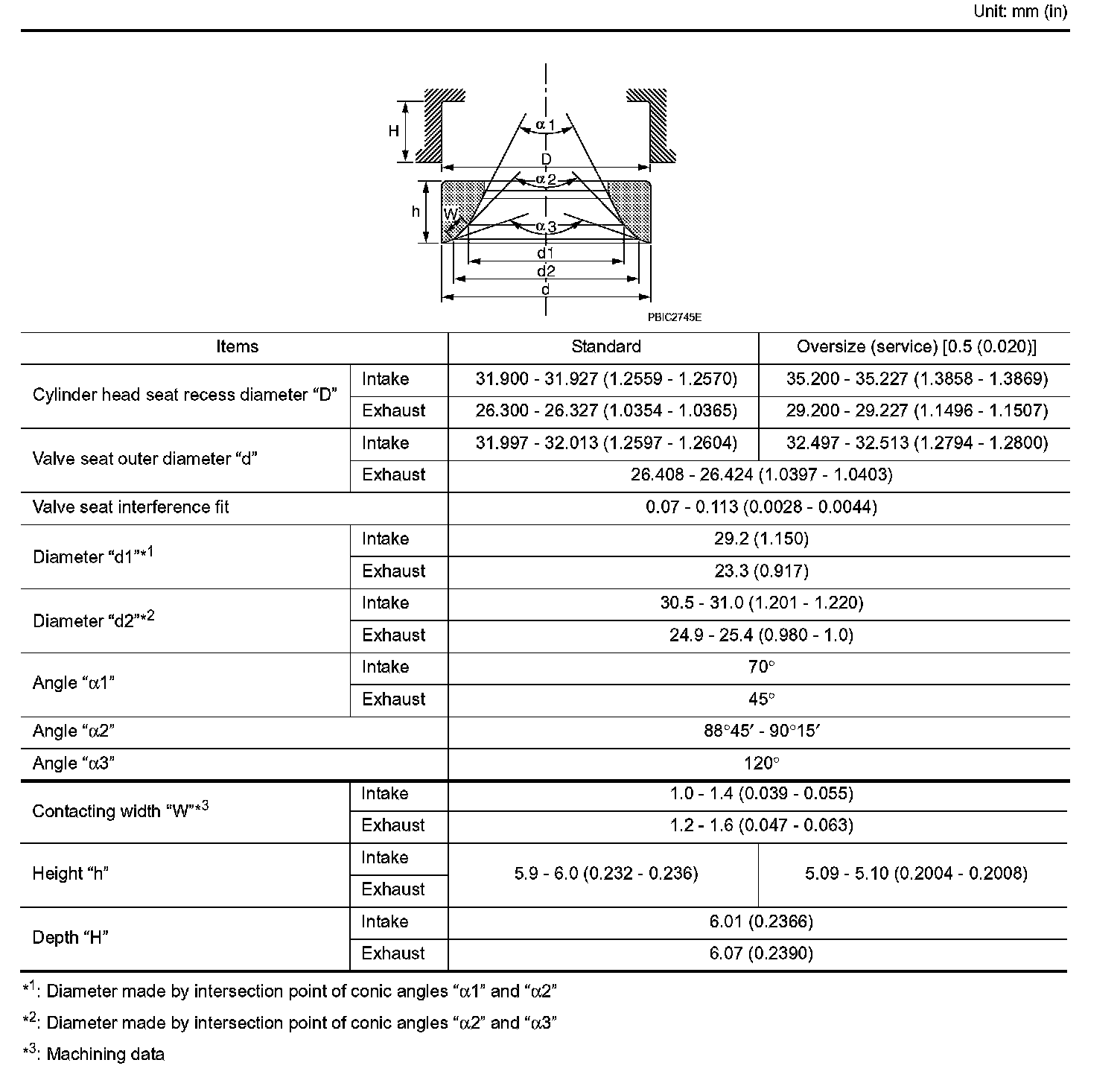

VALVE SEAT

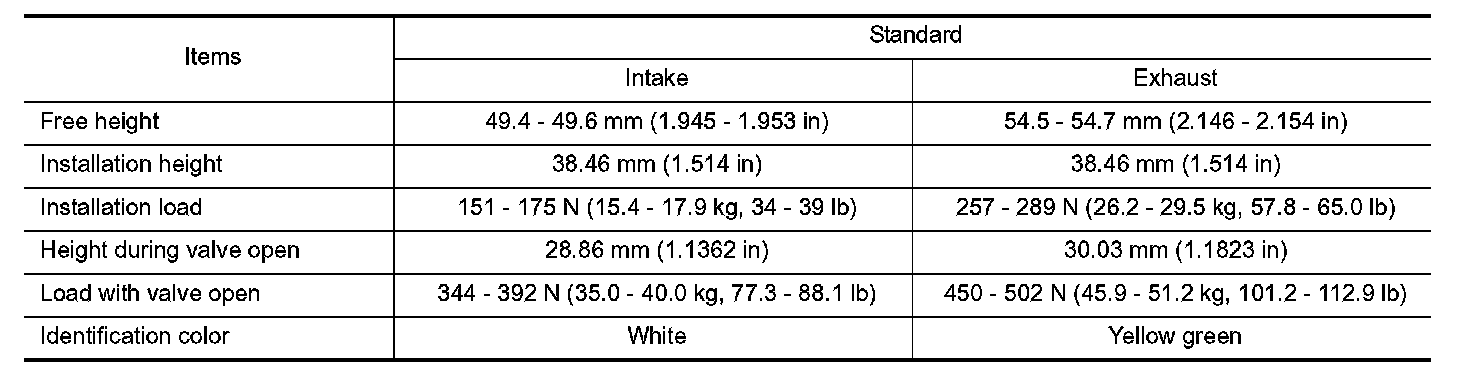

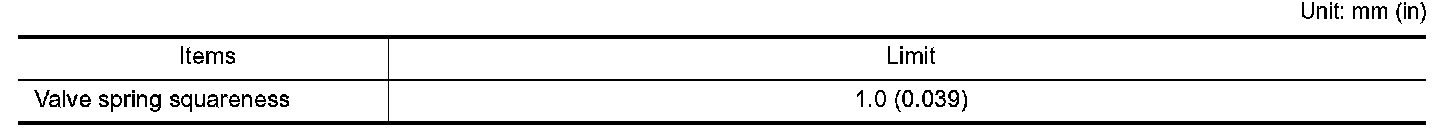

VALVE SPRING
