Intake Manifold

INTAKE MANIFOLD

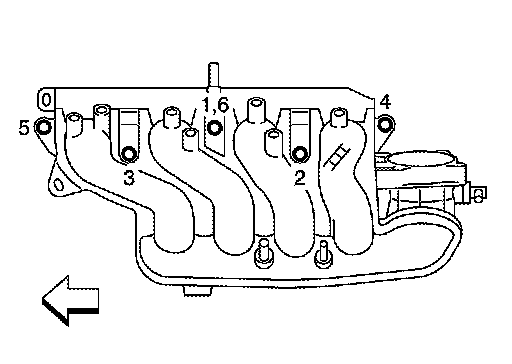

White arrow indicates : Engine front

Tighten in numerical order as shown in the figure.

NOTE:
- Tighten bolt the No.1 in two steps.
- The numerical order No.6 shows the second step.
