Home >> Nissan-Datsun >> 2012 >> Juke AWD L4-1.6L Turbo (MR16DDT) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Harmonic Balancer - Crankshaft Pulley

Harmonic Balancer - Crankshaft Pulley

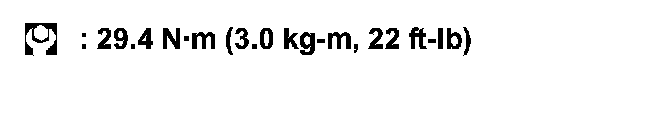

Tighten crankshaft pulley bolt:

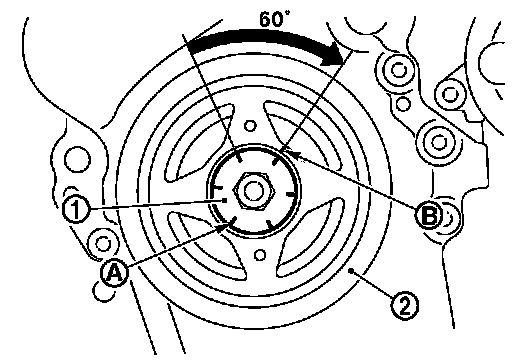

Turn another 60 degrees clockwise (angle tightening)
