Drive Shaft




SERVICE DATA AND SPECIFICATIONS (SDS)

Drive Shaft

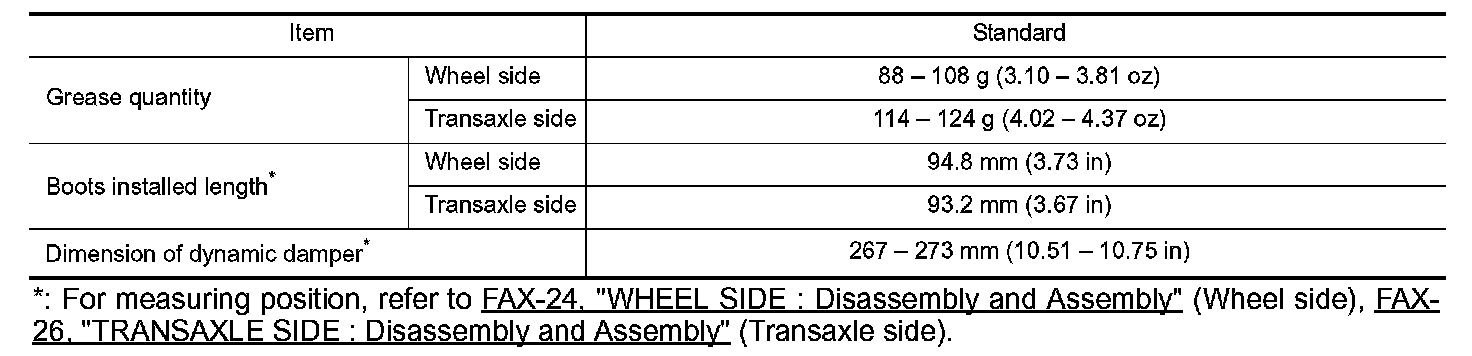

2WD






*: For measuring position, Wheel Side (Wheel side), Transaxle Side (Transaxle side).

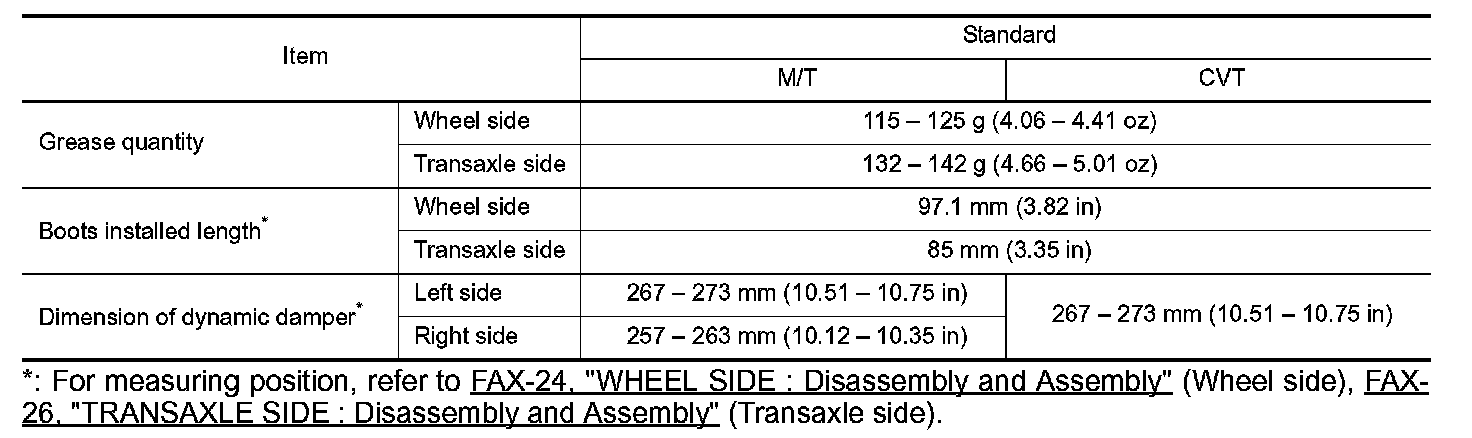

AWD






*: For measuring position, Wheel Side (Wheel side), Transaxle Side (Transaxle side).
