Disassembly And Assembly

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

AWD : Disassembly and Assembly


DISASSEMBLY


CAUTION:
Sub fuel level sensor unit cannot be disassembled and should be replaced as a unit.

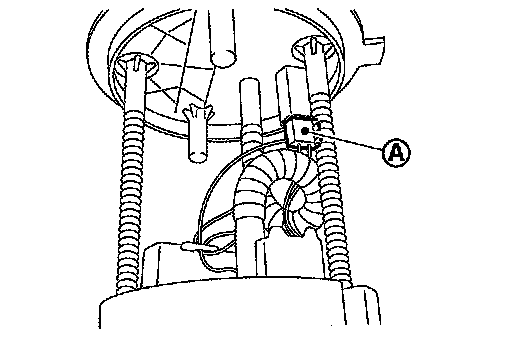

1.Disconnect harness connector (A).

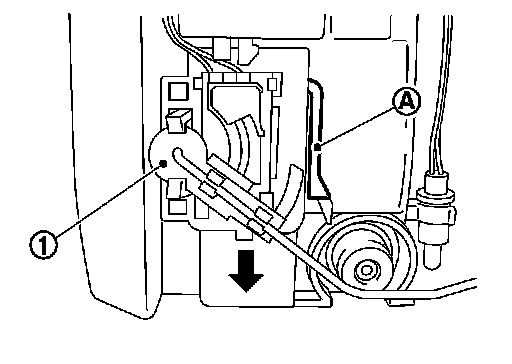

2.Press (A) with a flat-blade screwdriver or an equivalent to release lock and push out the fuel level senor unit (1).

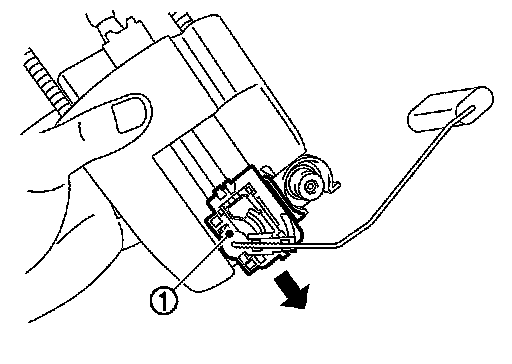

3.To remove the fuel level sensor unit (1), side it in the direction (black arrow) of the arrow with the lock release.

ASSEMBLY

1.Check for damage of fuel level sensor unit installation position on the side of fuel filter and pump assembly.
2.Slide fuel level sensor unit until it aligns to installation groove, then insert it until stops.
- After inserting, apply force in reverse direction (removal direction) to ensure it cannot be pulled out.
3.Connect harness connector.
