Home
>>
Nissan-Datsun
>>
2012
>>
Juke AWD L4-1.6L Turbo (MR16DDT)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Seat Belt
>>
Service and Repair
>>
Rear Seat Belt
Rear Seat Belt
REAR
SEAT BELT

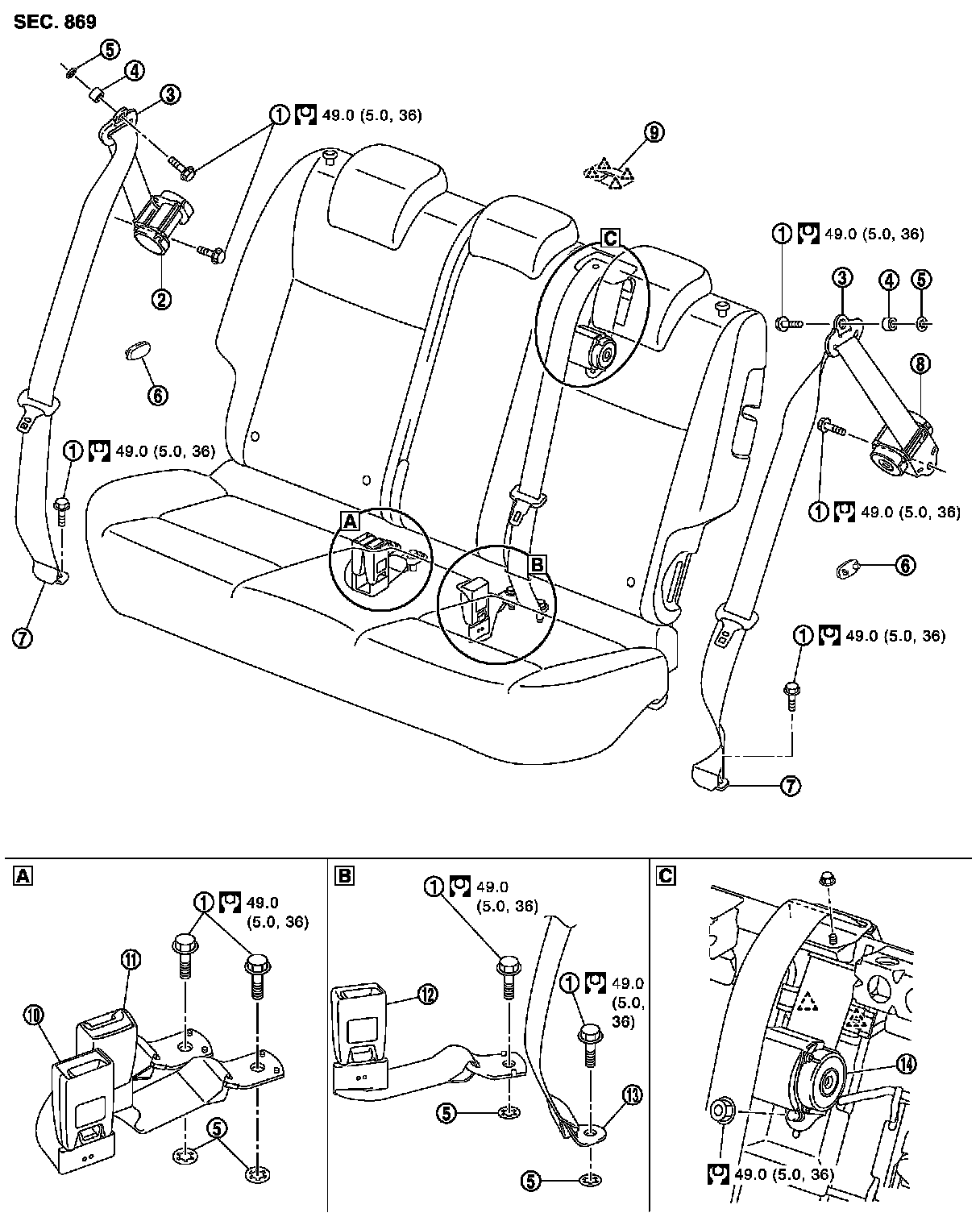

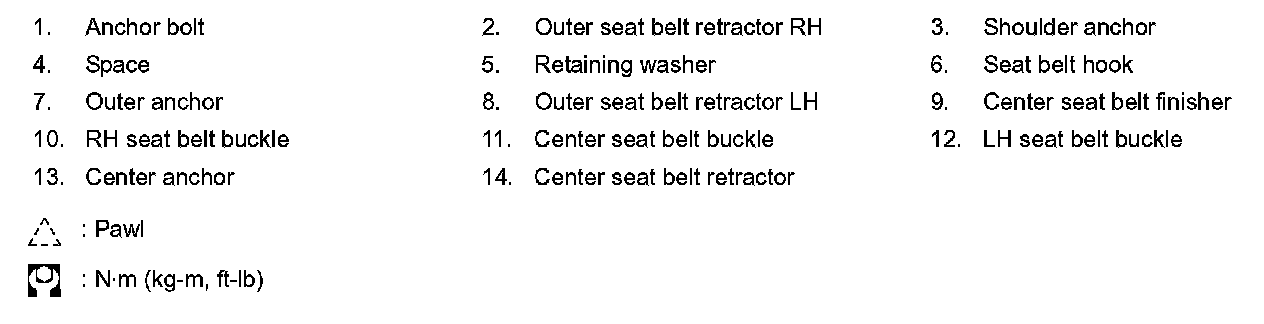

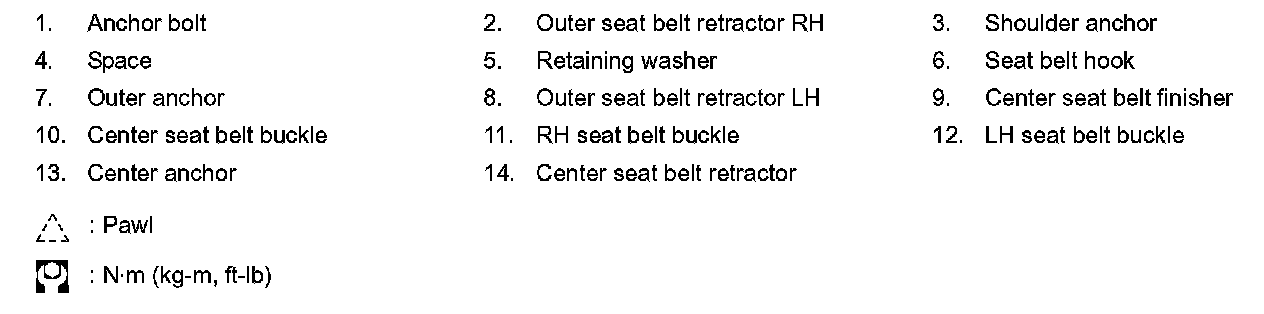

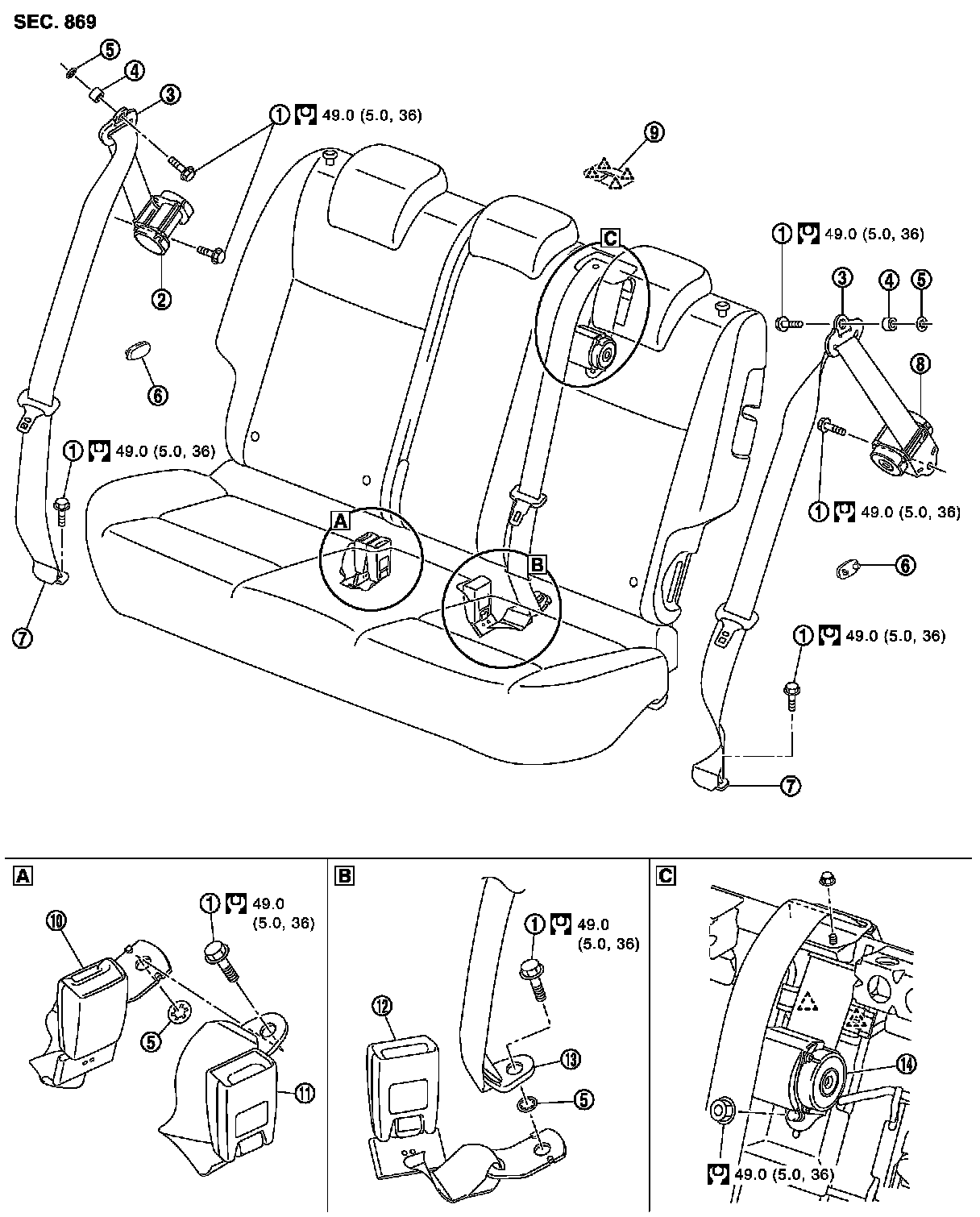

Exploded View
