Work Flow

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow


INTRODUCTION

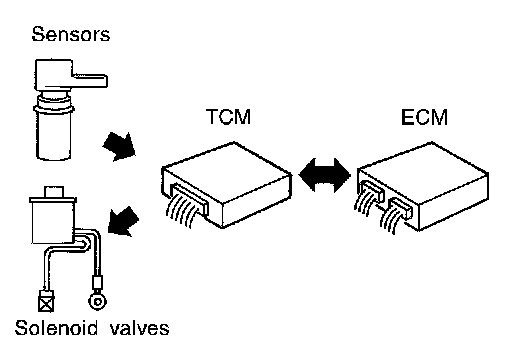

The TCM receives a signal from the vehicle speed sensor, transmission range switch and provides shift control or lock-up control via CVT solenoid valves.





The TCM also communicates with the ECM by means of a signal sent from sensing elements used with the OBD-related parts of the
CVT system for malfunction-diagnostic purposes. The TCM is capable of diagnosing malfunctioning parts while the ECM can store malfunctions in its memory.
Input and output signals must always be correct and stable in the operation of the CVT system. The CVT system must be in good operating condition and be free of valve seizure, solenoid valve malfunction, etc.





It is much more difficult to diagnose an error that occurs intermittently rather than continuously. Most intermittent errors are caused by poor electric connections or improper wiring. In this case, careful checking of suspected circuits may help prevent the replacement of good parts.
A visual check only may not find the cause of the errors. A road test with CONSULT (or GST) or a circuit tester connected should be performed. Follow the "DETAILED FLOW".





Before undertaking actual checks, take a few minutes to talk with a customer who approaches with a driveability complaint. The customer can supply good information about such errors, especially intermittent ones. Find out what symptoms are present and under what conditions they occur. A "Diagnostic Work Sheet" as shown on the example should be used.
Start your diagnosis by looking for "conventional" errors first. This will help troubleshoot driveability errors on an electronically controlled engine vehicle.
Also check related Service bulletins.

DETAILED FLOW


1. COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when the incident/malfunction occurred) using diagnosis worksheet. Diagnostic Work Sheet.
- GO TO 2.

2. CHECK SYMPTOM 1

Check the following items based on the information obtained from the customer.
- Fail-safe. Fail Safe.
- CVT fluid inspection. Inspection.
- Line pressure test. Line Pressure Test.
- Stall test. Stall Test.
- GO TO 3.

3. CHECK DTC

1.Check DTC.
2.Perform the following procedure if DTC is detected.
- Record DTC.
- Erase DTC. Reading and Clearing Diagnostic Trouble Codes.
Is any DTC detected?
YES- GO TO 4.
NO- GO TO 5.

4. PERFORM DIAGNOSTIC PROCEDURE

Perform "Diagnostic Procedure" for the displayed DTC.
- GO TO 5.

5. PERFORM DTC CONFIRMATION PROCEDURE

Perform "DTC CONFIRMATION PROCEDURE" for the displayed DTC.
Is DTC detected?
YES- GO TO 4.
NO- GO TO 6.

6. CHECK SYMPTOM 2

Confirm the symptom described by the customer.
Is any malfunction present?
YES- GO TO 7.
NO-INSPECTION END

7. RODE TEST

Perform "RODE TEST". Description.
- GO TO 8.

8. CHECK SYMPTOM 3

Confirm the symptom described by the customer.
Is any malfunction present?
YES- GO TO 2.
NO-INSPECTION END
