Multi Display Unit

COMPONENT PARTS

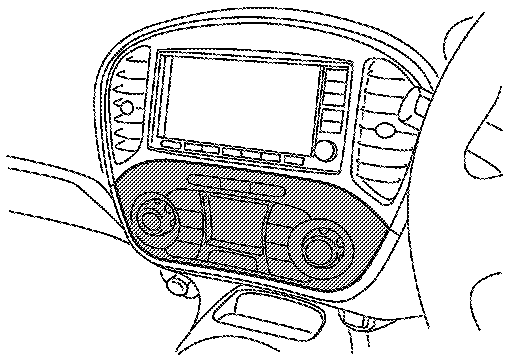

Multi Display Unit


DESCRIPTION






- The multi display unit connects to other units via CAN communication and performs the drive mode control.
- The following 3 drive modes are available, NORMAL, SPORT, and
ECO.
- The drive mode can be changed over as desired by pressing the
D-MODE select switch. The characteristics of the engine, CVT, steering and air conditioner are changed accordingly.
- The display shows the current drive mode (NORMAL, SPORT, ECO) as well as the vehicle information for the mode.

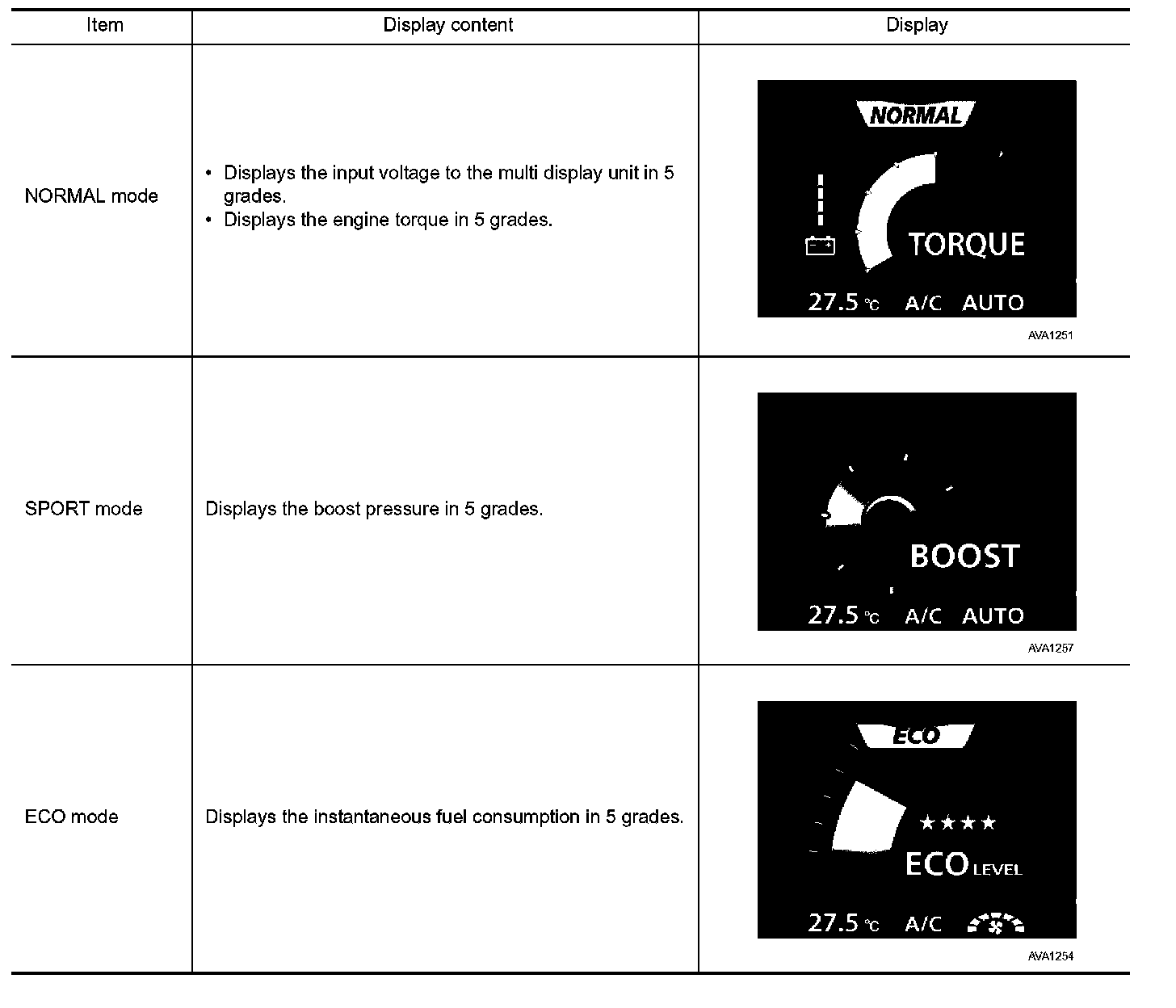

VEHICLE INFORMATION DISPLAY

Drive Mode
