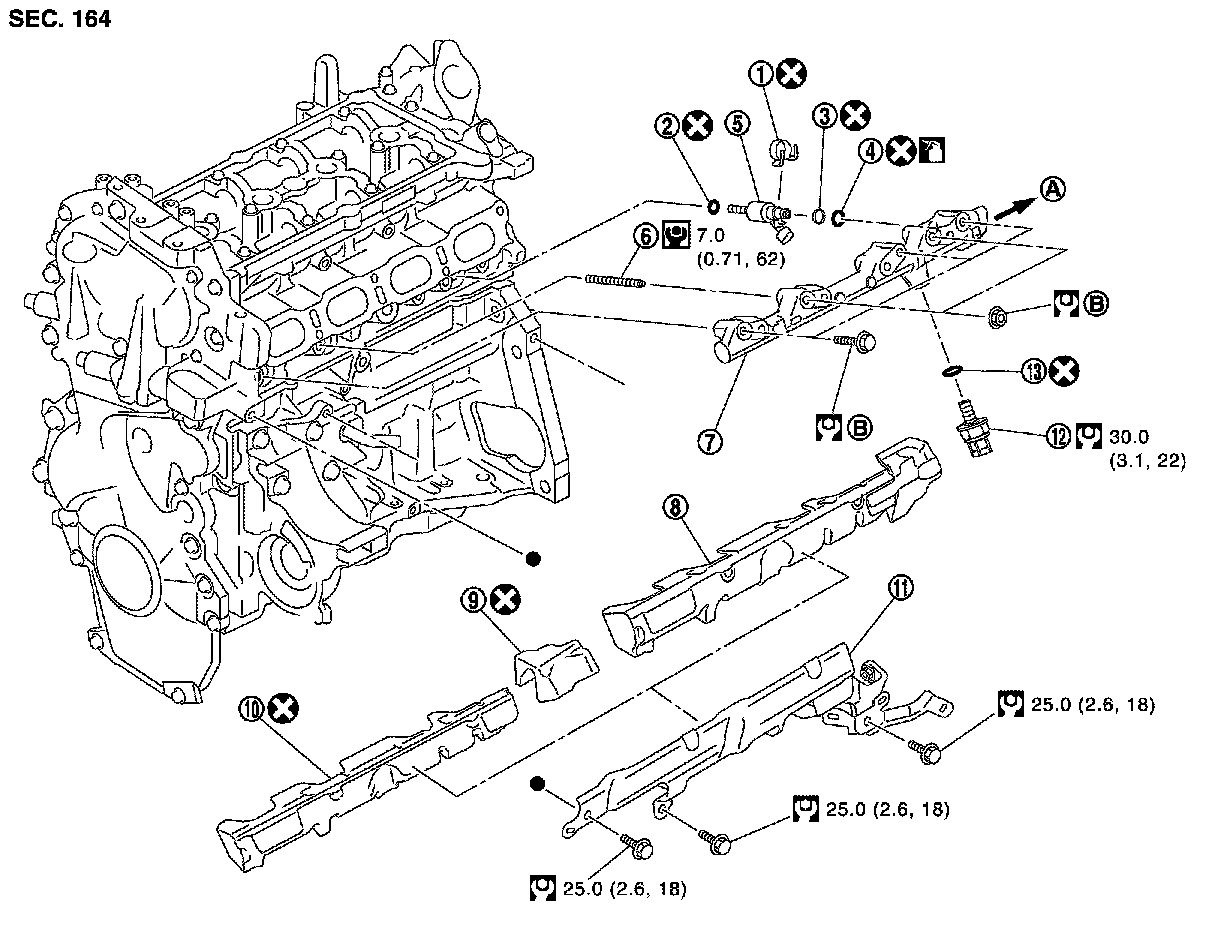

Exploded View
FUEL INJECTOR AND FUEL TUBE
Exploded View
CAUTION:
- Never remove or disassemble parts unless instructed as shown in the figure.
- When fuel rail insulator (separated type) and adaptor cover (separated type) are removed, be sure to replace them with fuel insulator (united type).
