CAN System Specification Chart

SYSTEM

CAN COMMUNICATION SYSTEM : CAN System Specification Chart

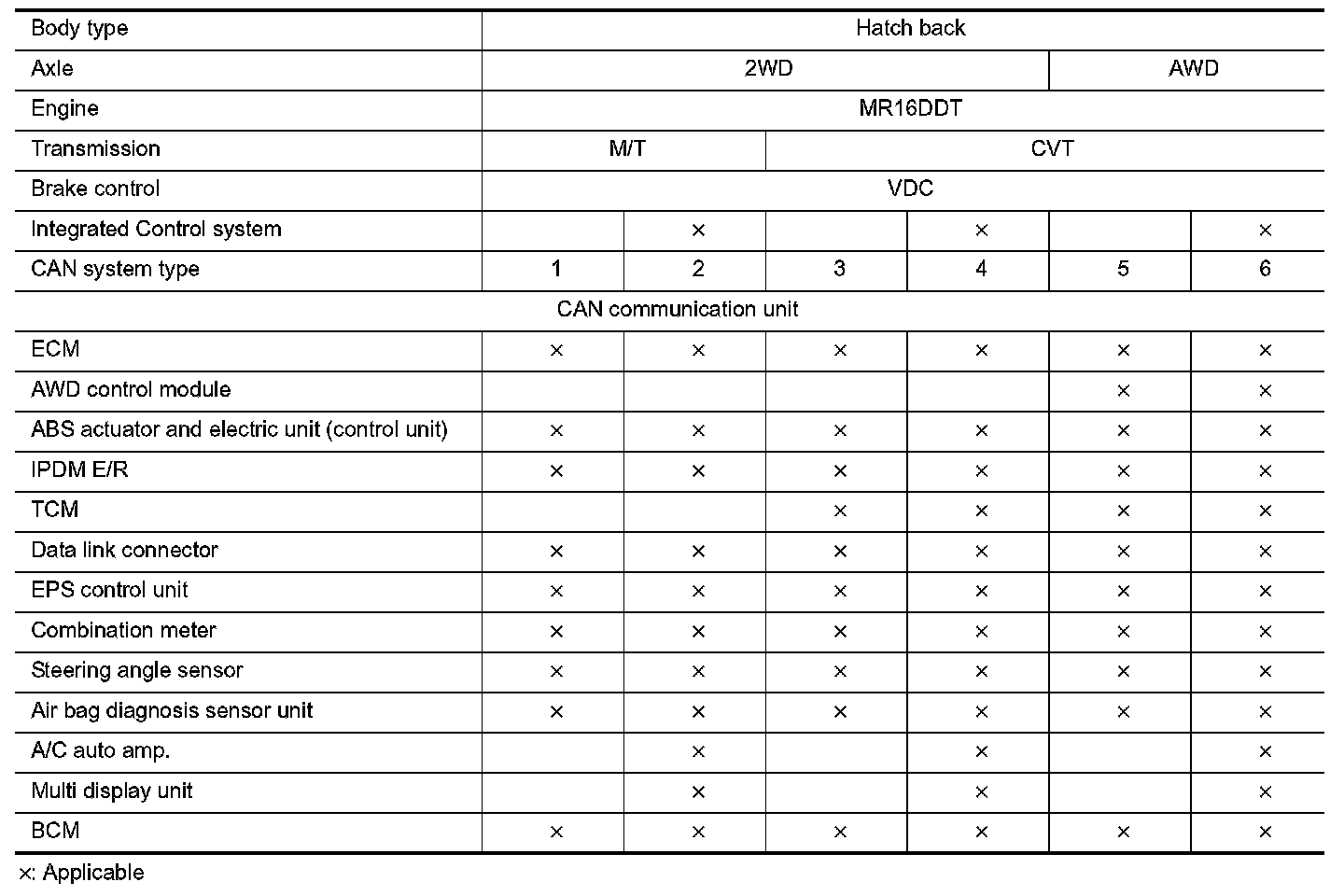

Determine CAN system type from the following specification chart.
NOTE:
Trouble Diagnosis Procedure for how to use CAN system specification chart.

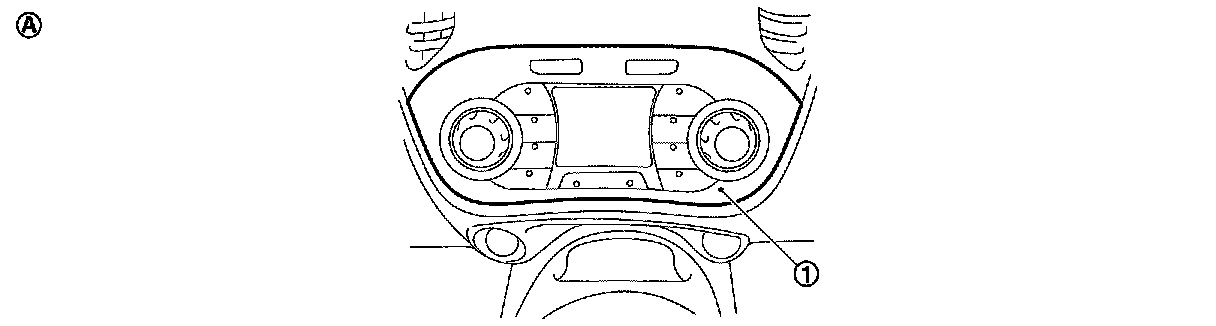

VEHICLE EQUIPMENT IDENTIFICATION INFORMATION

NOTE:
Check CAN system type from the vehicle shape and equipment.
