Turbocharger

COMPONENT PARTS

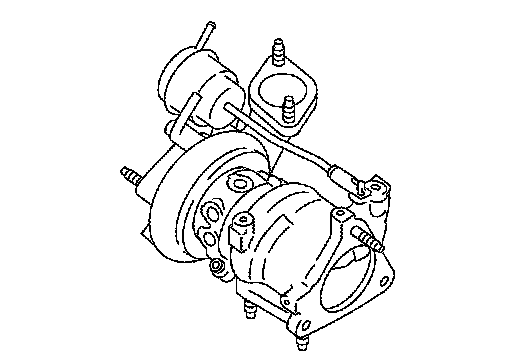

Turbocharger






Turbocharger boost is controlled by adjusting the pressure to the diaphragm of the boost control actuator.

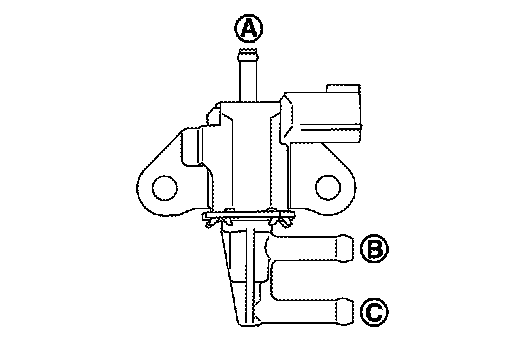

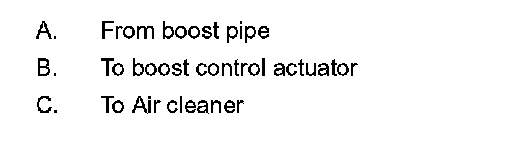

TURBOCHARGER BOOST CONTROL SOLENOID VALVE

Turbocharger boost control solenoid valve is ON/OFF duty controlled by ECM.





And it adjusts the pressure in the diaphragm of the boost control actuator. The longer the turbocharger boost control solenoid valve is
ON, the higher the boost is increased.
